Exploded View - Steering Linkage

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

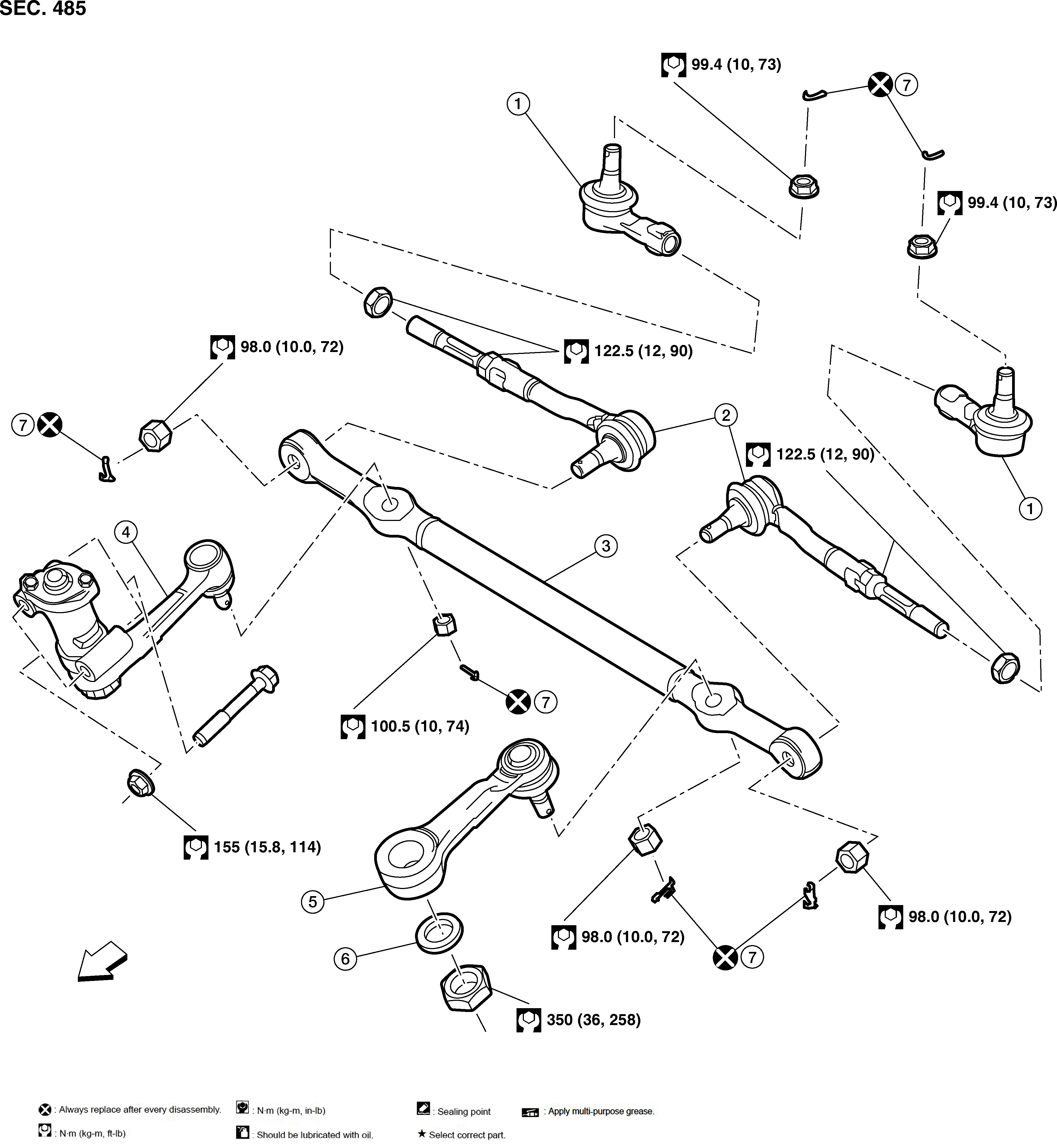

Fig 1: Steering Linkage With Torque Specifications
GNSALGIA0019Z-019Courtesy of NISSAN NORTH AMERICA, INC.

1.

Outer socket

2.

Inner socket

3.

Relay rod

4.

Idler arm assembly

5.

Pitman arm

6.

Washer

7.

Cotter pin

SYMBOL

Front
