Idler Arm

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Removal

Set the front wheels in the straight-ahead position.
Remove the front under cover. Refer to Removal and Installation .

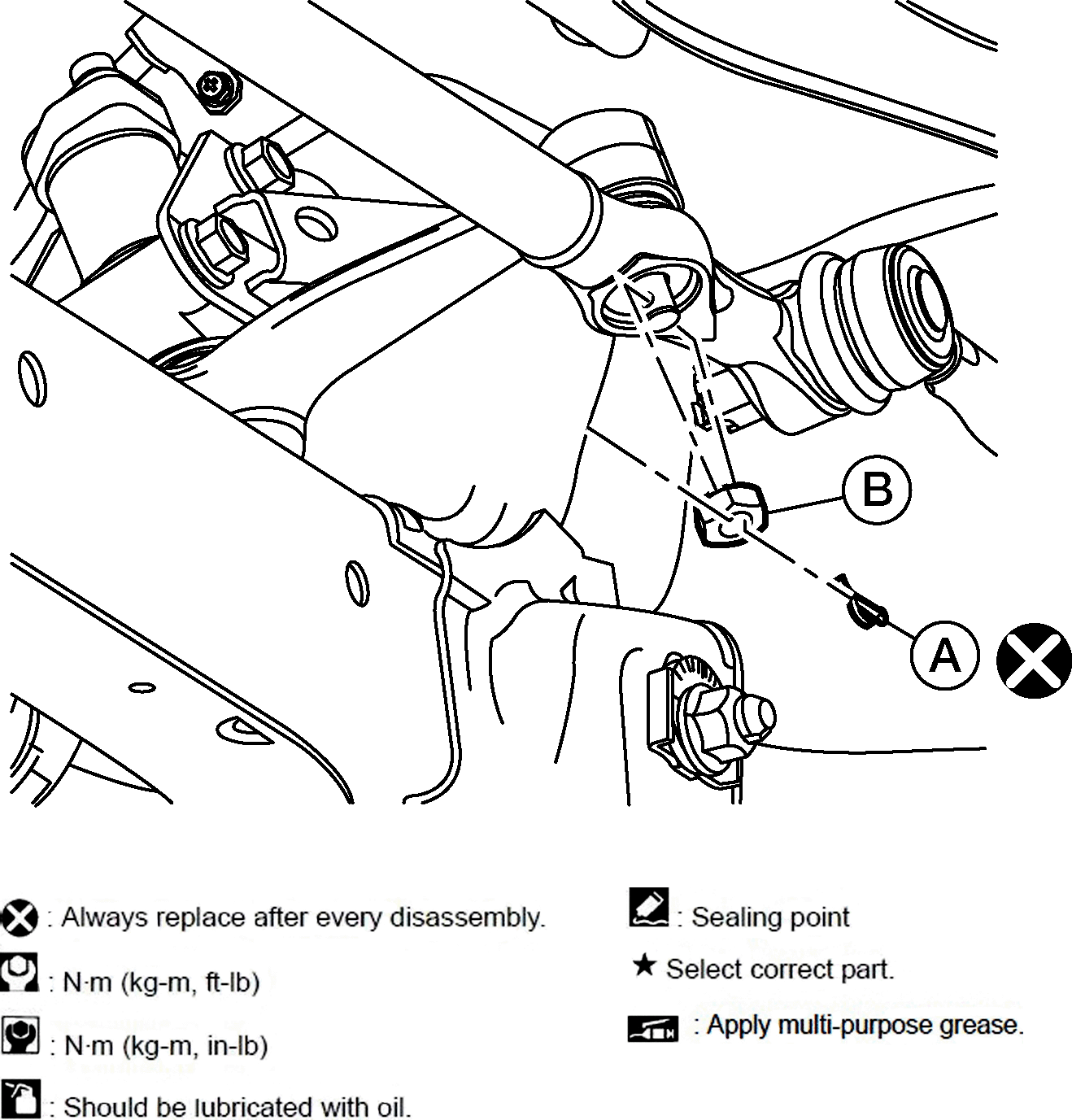

Remove the cotter pin (A) and nut (B) from the relay rod. Separate the idler arm from the relay rod using suitable tool. Discard the cotter pin.

Courtesy of NISSAN NORTH AMERICA, INC.

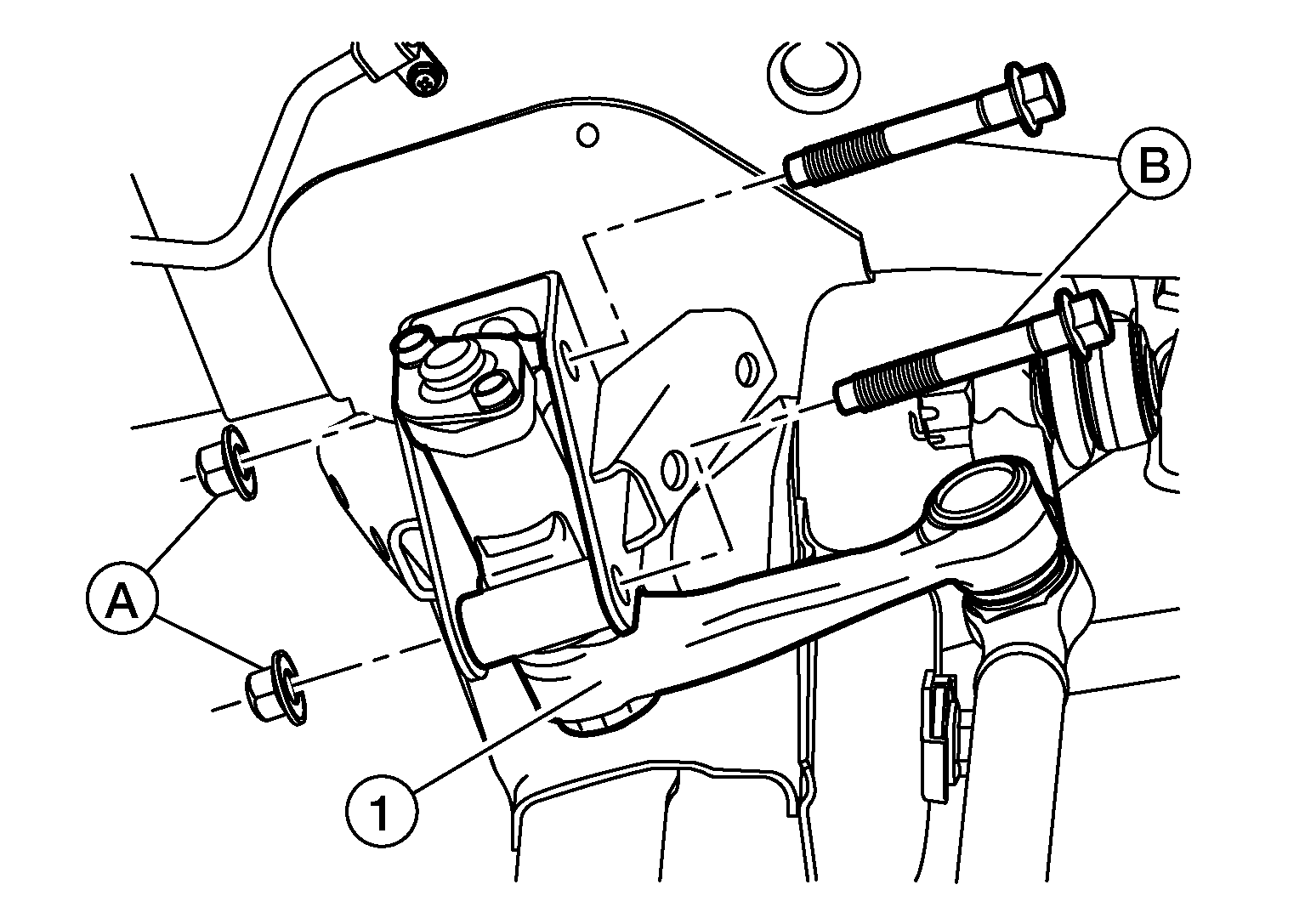

Remove the nuts (A), bolts (B) and the idler arm (1) from the vehicle.

Courtesy of NISSAN NORTH AMERICA, INC.

Installation

Installation is in the reverse order of removal.

CAUTION: Do not reuse cotter pins.

Tighten the fasteners to specification. Refer to Exploded View - Steering Linkage .
