Removal and Installation - VQ40DE: Installation

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

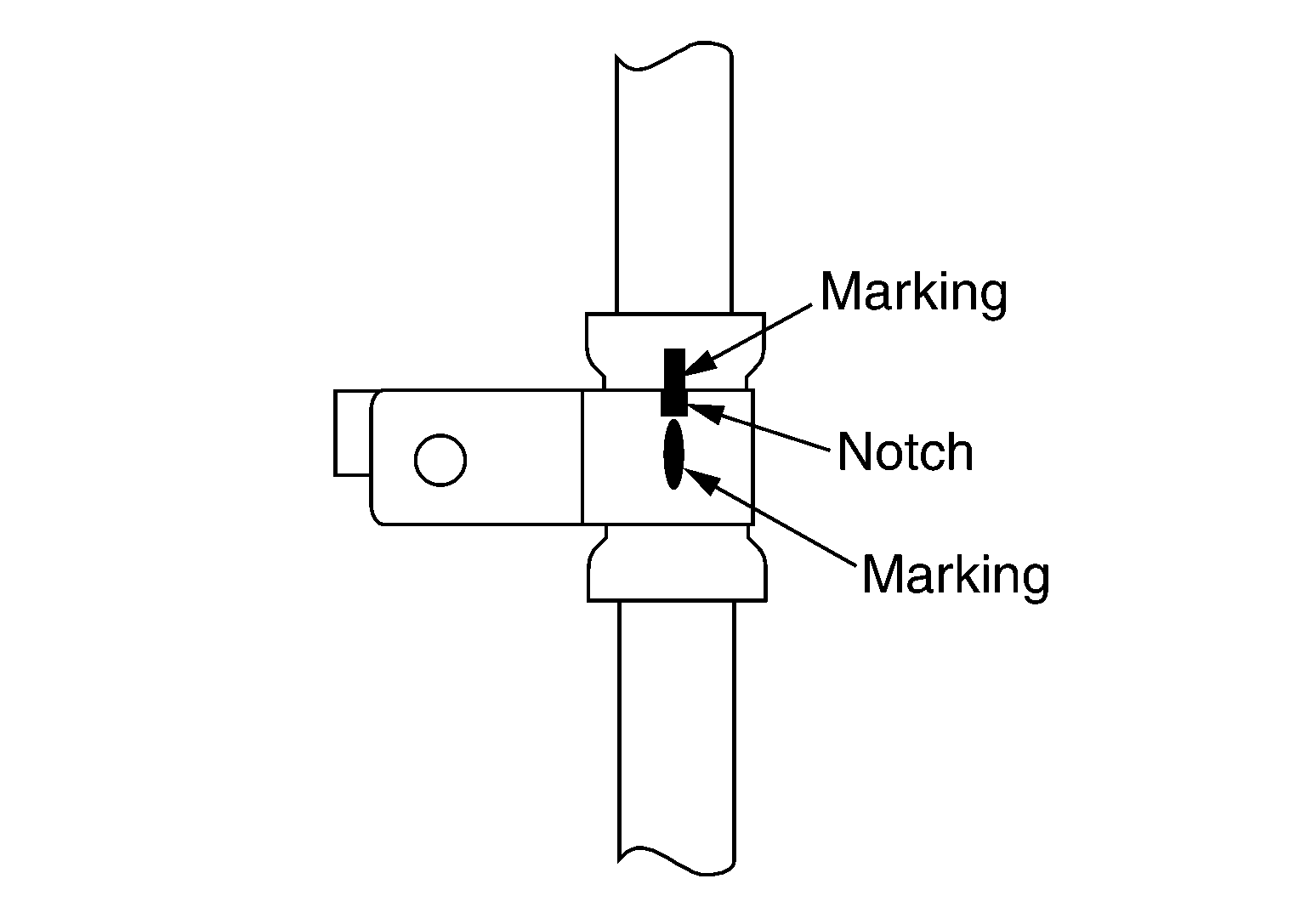

Confirm mating marks are aligned with hose and clamp, then correct if needed.

Courtesy of NISSAN NORTH AMERICA, INC.

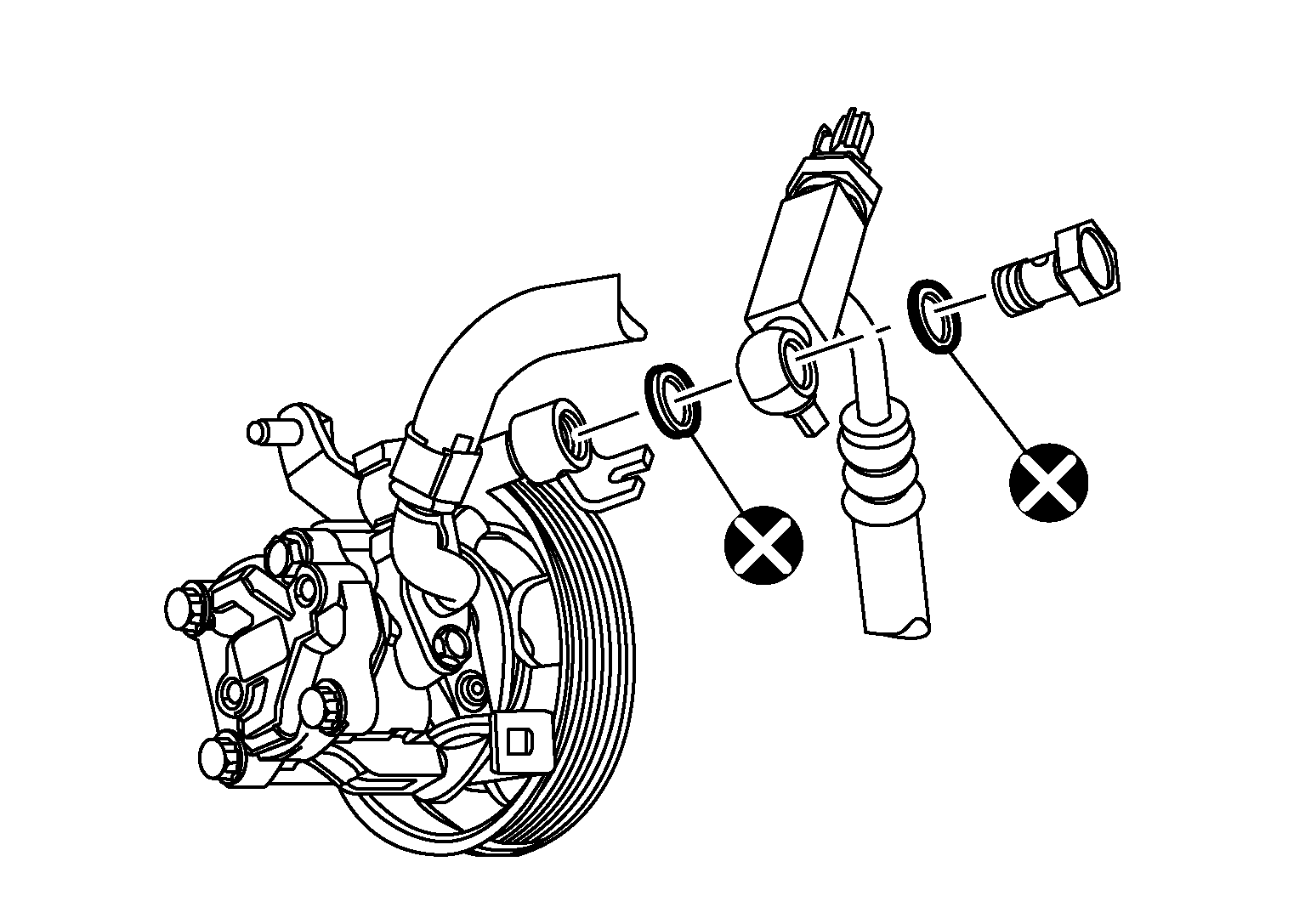

To install eye joint, align projection of eye joint with notch of power steering pump, and attach eye joint to power steering oil pump properly. Tighten eye bolt by hand fully, then torque to specification. Refer to Component Parts Location - VQ40DE .

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse copper sealing washers.
After installation, bleed air. Refer to Refilling and Air Bleeding Hydraulic System .
