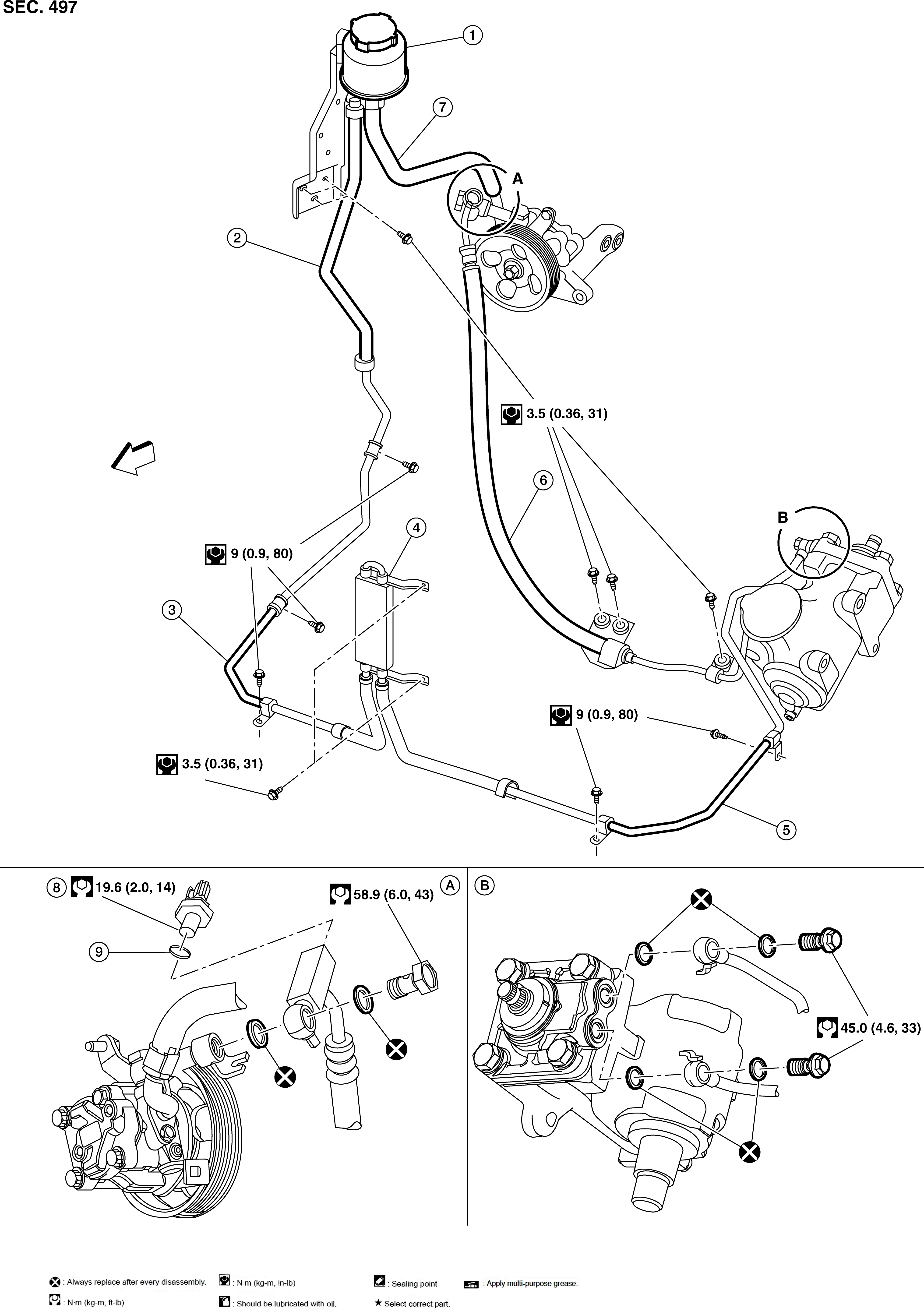

Component Parts Location - VQ40DE
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Power steering reservoir tank |
2. |
Power steering return hose |
3. |
Power steering return pipe |
|
4. |
Oil cooler assembly |
5. |
Power steering gear return pipe |
6. |
Power steering pressure line |
|
7. |
Power steering suction hose |
8. |
Power steering pressure sensor |
9. |
O-ring |
|
|
Front |
