Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Note the following, and assembly in the reverse order of disassembly.

Do not use mineral oils such as kerosene or gasoline and rubber grease during the cleaning and assembly process.
Do not drop the removed parts when installing. The parts must not be reused if they are dropped.
Do not allow foreign matter (e.g. dust) and oils other than brake fluid to enter the reservoir tank.
For non reusable parts, refer to Exploded View .

When connecting motor/accumulator assembly harness, check the order of harness colors.

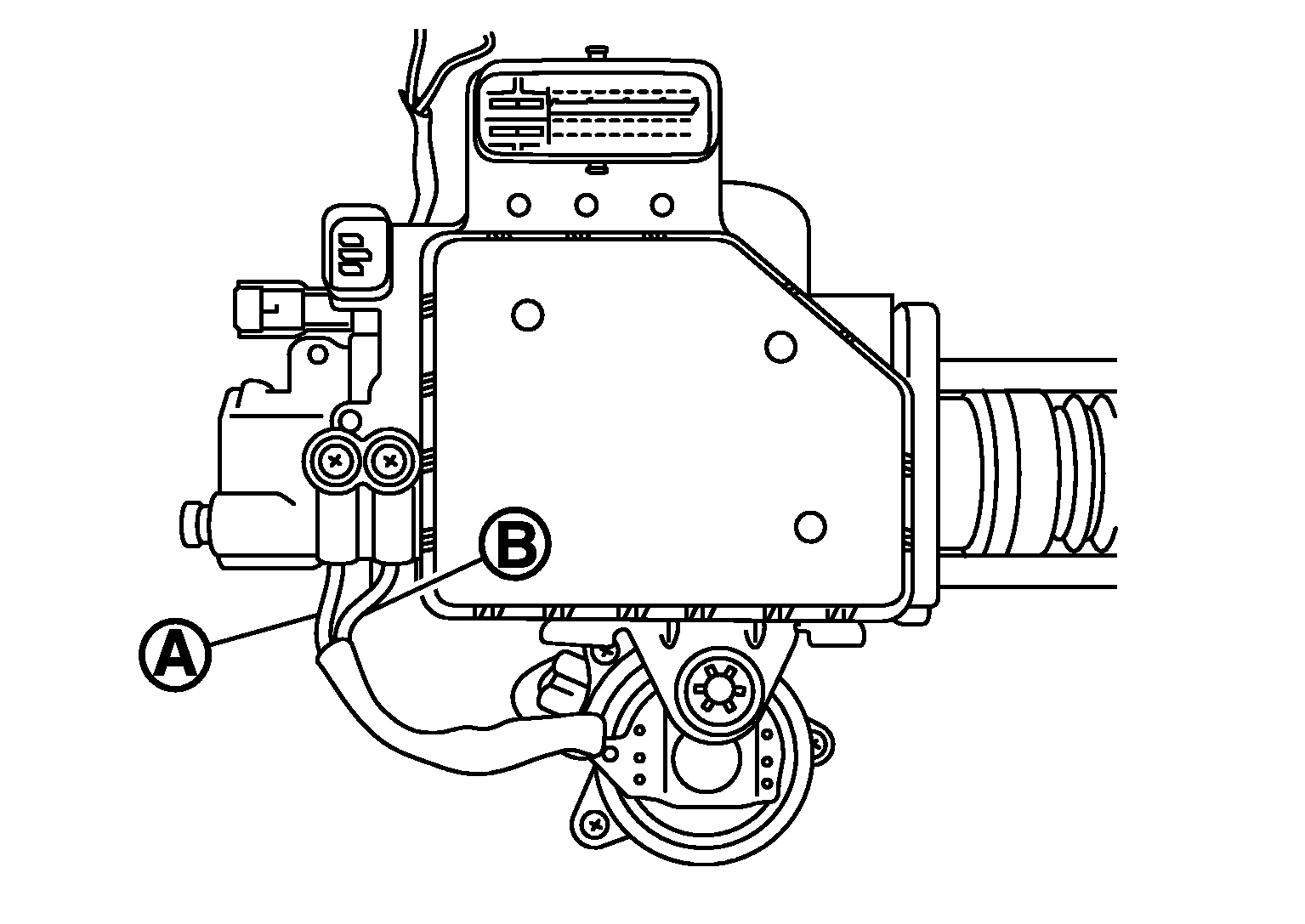

Courtesy of NISSAN NORTH AMERICA, INC.

(A)	: Black
(B)	: Red

Temporarily tighten the brake tube flare nut to the motor/accumulator assembly and ABS actuator and electric unit (control unit) by hand. Then tighten it to the specified torque with a crowfoot and torque wrench.
CAUTION: Do not scratch the flare nut and the brake tube.
Apply new brake fluid to grommet of between reservoir tank and grommet and ABS actuator and electric unit (control unit).
