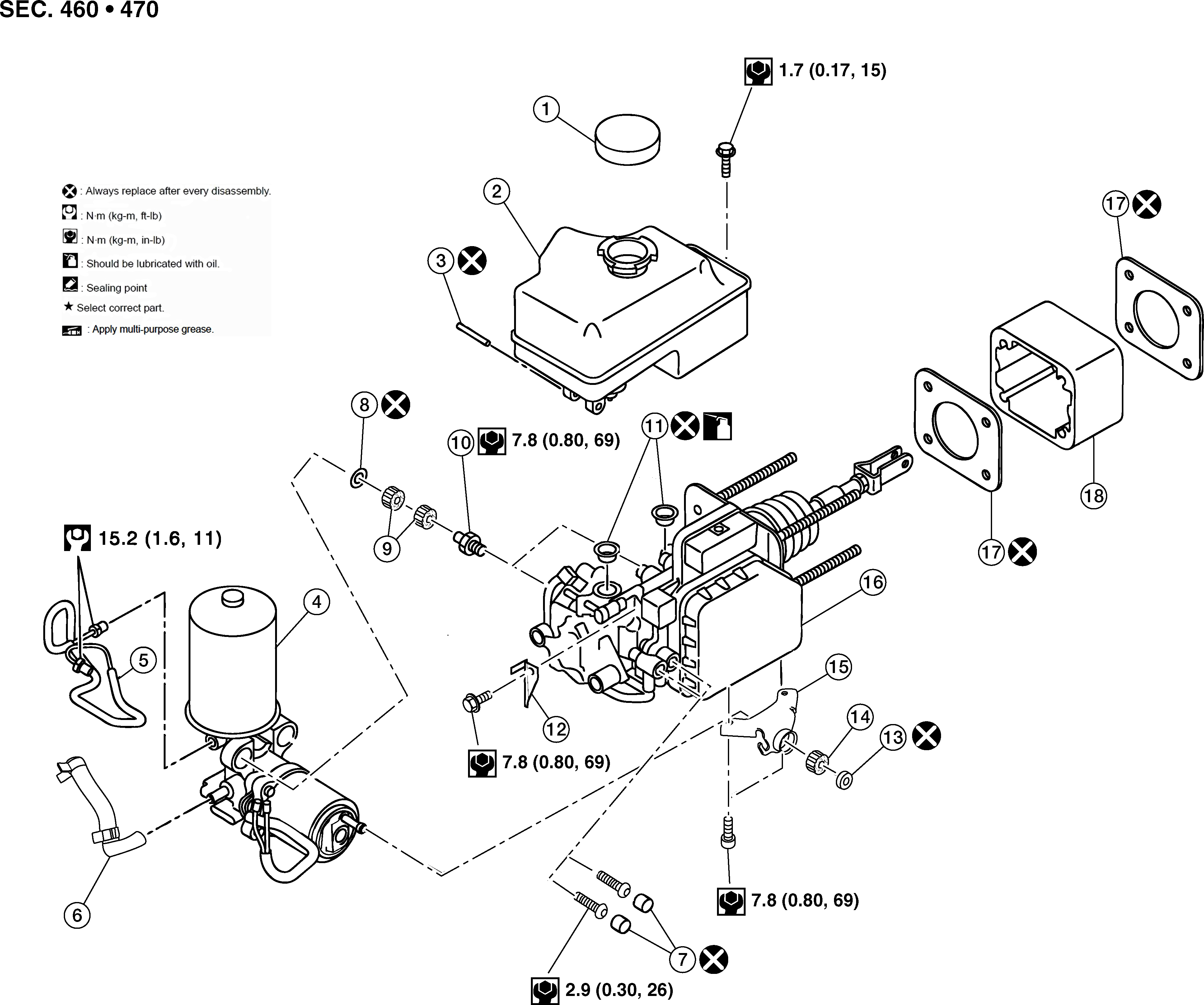

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Reservoir cap |
2. |
Reservoir tank |
3. |
Pin |
|
4. |
Motor/accumulator assembly |
5. |
Brake tube |
6. |
Reservoir hose assembly |
|
7. |
Grommet |
8. |
Collar |
9. |
Bushing |
|
10. |
Pin mount |
11. |
Grommet |
12. |
Reservoir tank connector bracket |
|
13. |
Cap |
14. |
Bushing |
15. |
Brake booster bracket |
|
16. |
ABS actuator and electric unit (control unit) |
17. |
Gasket |
18. |
Spacer |
|
|
|||||
