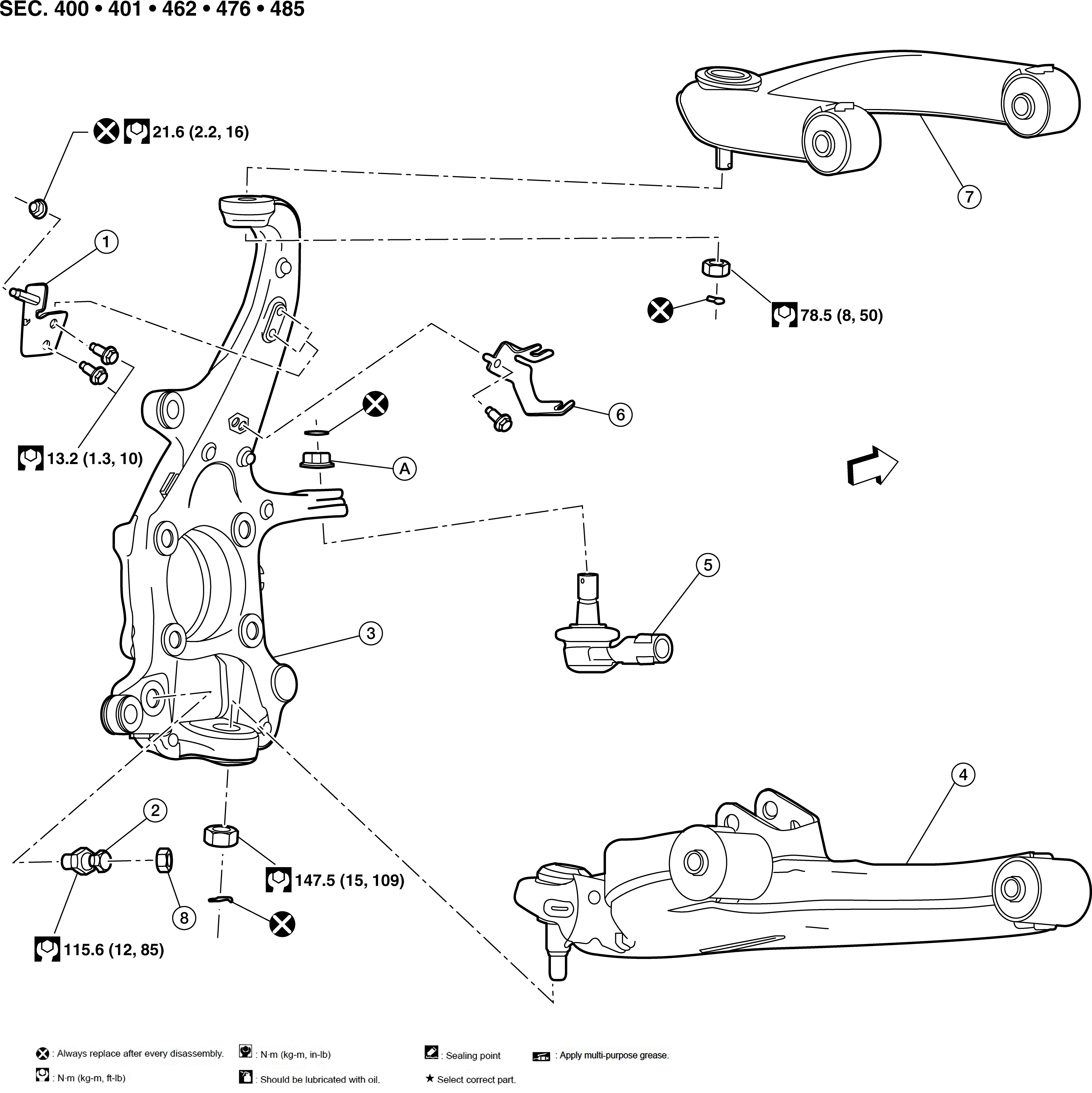

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Brake hose bracket |
2. |
Steering stopper bolt |
3. |
Steering knuckle |
|
4. |
Lower link |
5. |
Outer socket |
6. |
Wheel sensor wiring harness bracket |
|
7. |
Upper link |
8. |
Steering stopper bolt cap |
A. |
Refer to Exploded View - Steering Linkage . |
|
|
Front |
