Camber And Caster
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
- Measure camber and caster of both the right and left wheels with a suitable alignment gauge and adjust as necessary to specification.
Camber and caster
: Refer to Wheel Alignment (Unladen*1) .

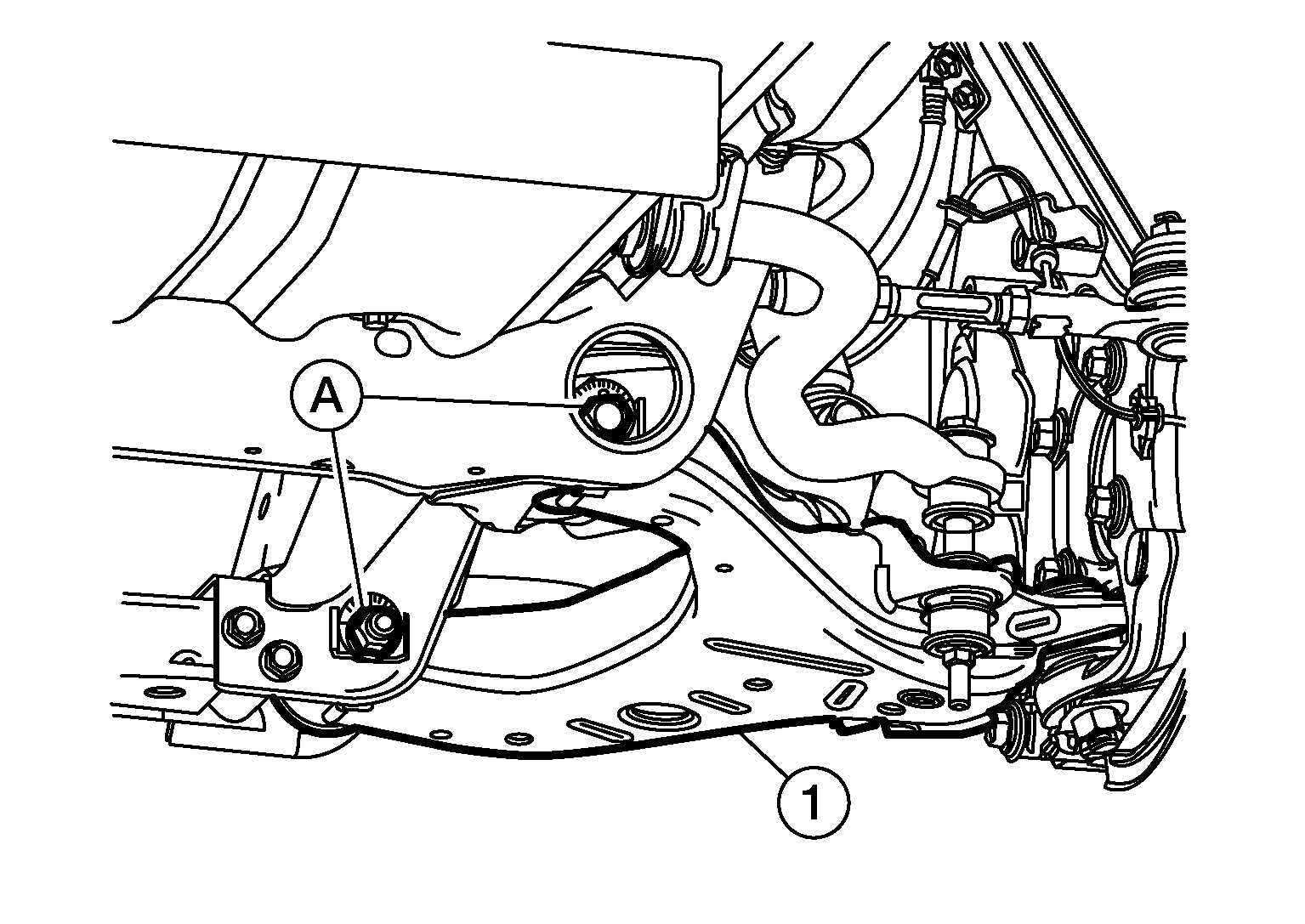

NOTE: Some vehicles may be equipped with straight (non-adjustable) lower link bolts and washers. In order to adjust camber and caster on these vehicles, first replace the lower link bolts and washers with adjustable (cam) bolts and washers. - If outside of the specified value, adjust camber and caster using the cam bolts (A) in the front lower link (1).CAUTION: After adjusting the camber and caster, check the toe-in.NOTE: Camber changes about 3' (0.05 deg.) with each graduation of one cam bolt (A). Refer to table below for examples of lower link cam bolt (A) effect on camber and caster.
Rear cam bolt
1 In
1 Out
1 In
1 Out
0
0
1 In
1 Out
Front cam bolt
1 Out
1 In
1 In
1 Out
1 In
1 Out
0
0
Degree minute (Decimal degree)
0 (0)
0 (0)
8' (0.13 deg.)
- 8' (-0.13 deg.)
4' (0.07 deg.)
- 4' (-0.07 deg.)
4' (0.07 deg.)
- 4' (-0.07 deg.)
Degree minute (Decimal degree)
- 13' (-0.22 deg.)
13' (0.22 deg.)
0 (0)
0 (0)
7' (0.12 deg.)
- 7' (-0.12 deg.)
- 7' (-0.12 deg.)
7' (0.12 deg.)
- Tighten the cam bolt nuts to specification. Refer to Exploded View .
