Exploded View

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

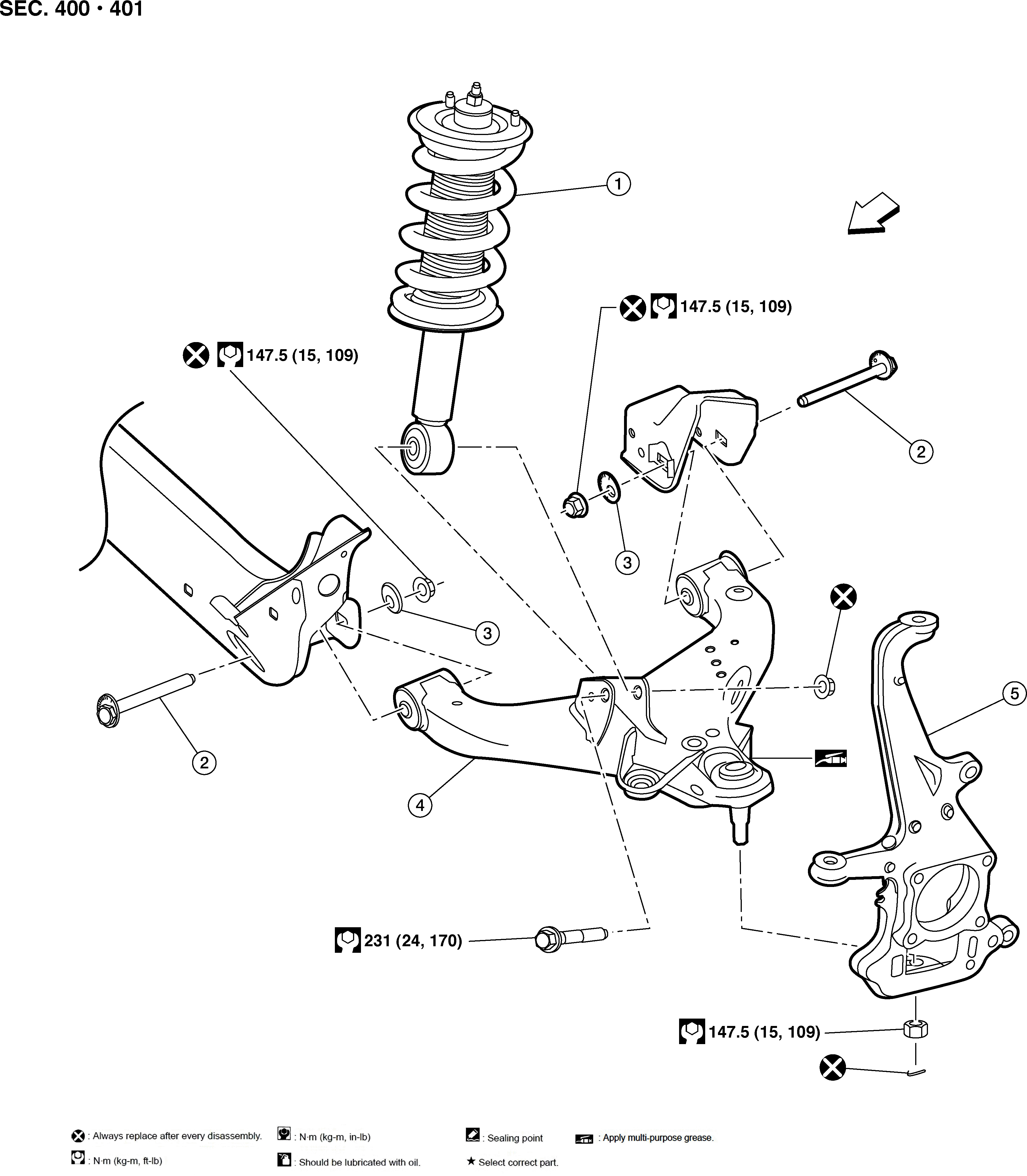

Fig 1: Lower Link With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Shock absorber assembly	2.	Eccentric cam bolt	3.	Eccentric disc
4.	Lower link	5.	Steering knuckle		Front
