Component Inspection (Vacuum Tank)
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK VACUUM TANK
- Disconnect vacuum hose connected to vacuum tank.

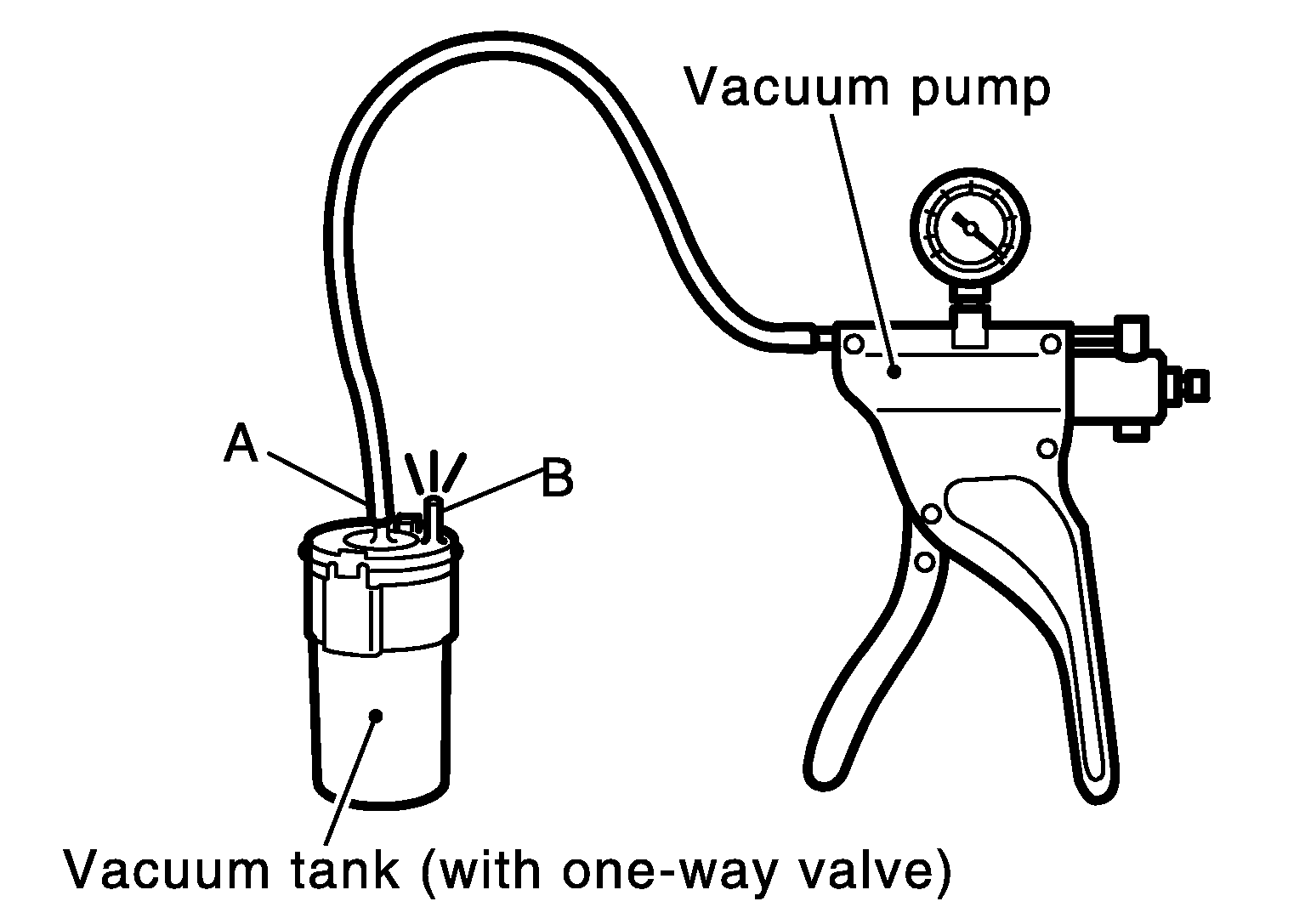

- Connect a vacuum pump to the port (A) of vacuum tank.
- Apply vacuum and check that vacuum exists at the port (B).
Is the inspection result normal?
YES
INSPECTION END
NO
Replace vacuum tank. Refer to Exploded View .
