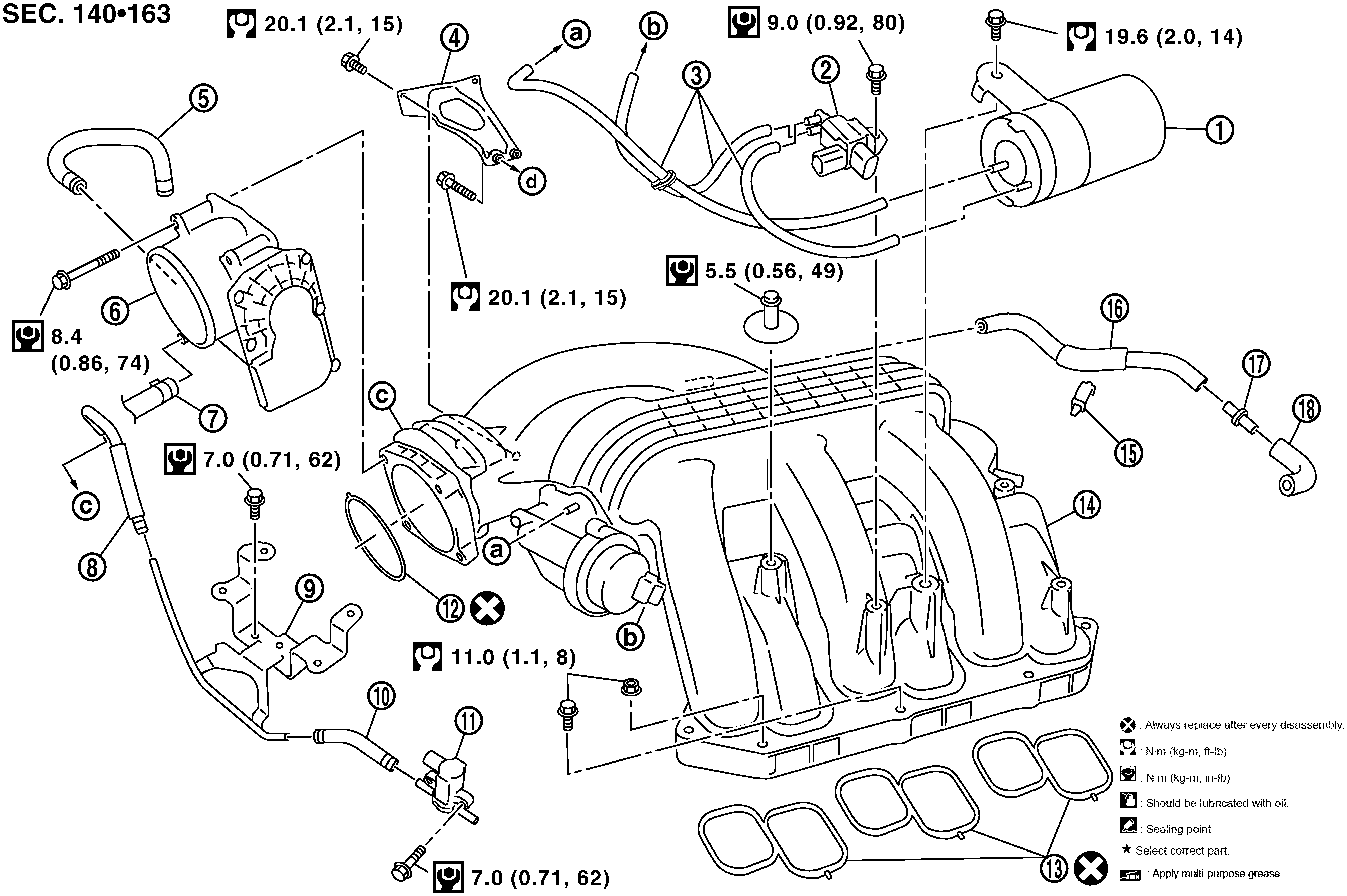

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Vacuum tank |
2. |
VIAS control solenoid valve (if equipped) |
3. |
Vacuum hoses |
|
4. |
Intake manifold collector support |
5. |
Water hose |
6. |
Electric throttle control actuator |
|
7. |
Water hose |
8. |
EVAP hose |
9. |
Bracket |
|
10. |
EVAP hose |
11. |
EVAP canister purge volume control solenoid valve |
12. |
Gasket |
|
13. |
Gaskets |
14. |
Intake manifold collector |
15. |
Clip |
|
16. |
PCV hose |
17. |
Connector |
18. |
PCV hose |
|
a. |
To intake manifold collector. |
b. |
To power valve. |
c. |
To throttle body. |
|
d. |
To cylinder head (RH bank). |
