Component Inspection (VIAS Control Solenoid Valve)

With CONSULT

1. Reconnect harness connectors disconnected.
2. Turn ignition switch ON.
3. Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode of "ENGINE".

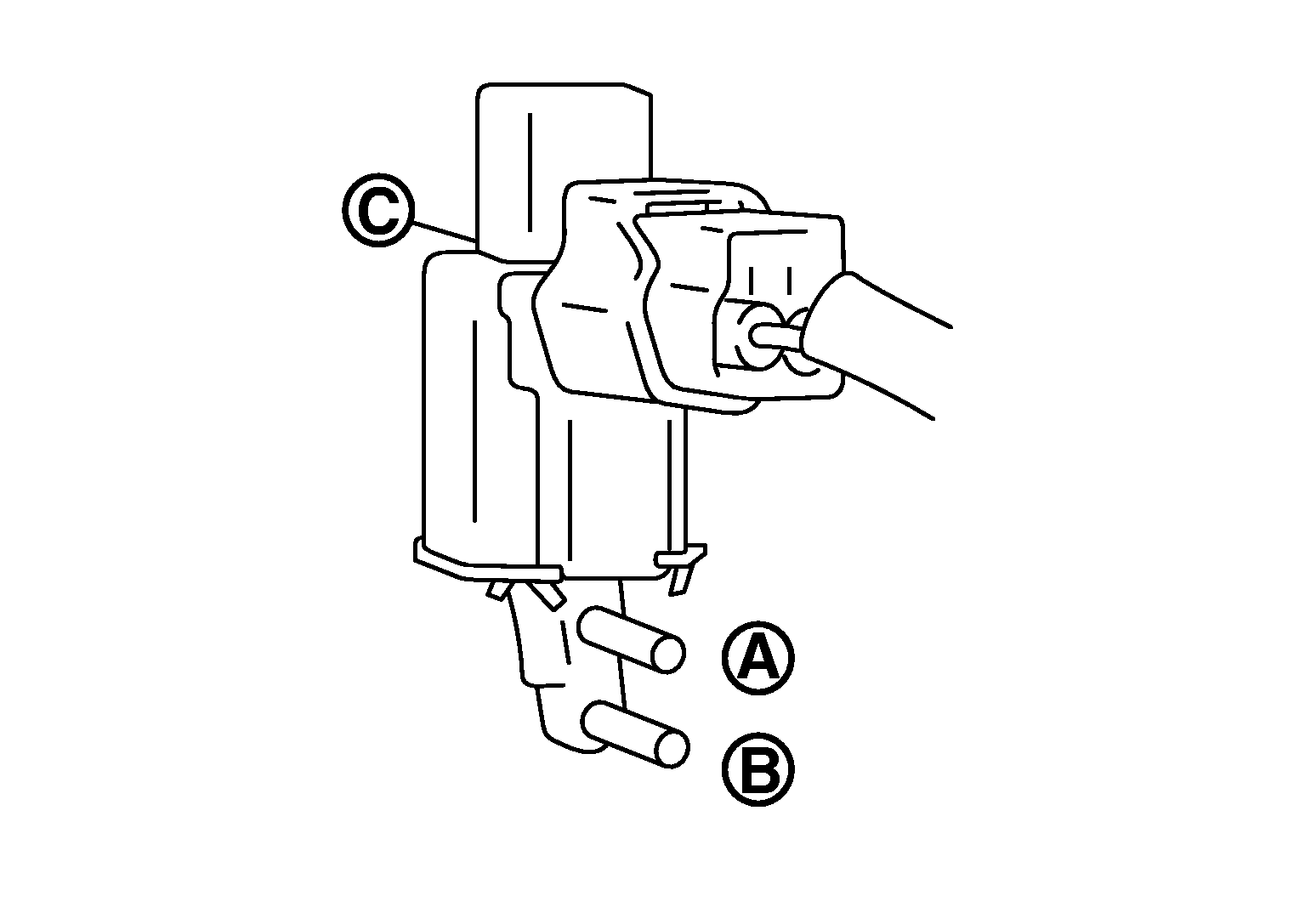

4. Check air passage continuity and operation delay time as per the following conditions.

   Courtesy of NISSAN NORTH AMERICA, INC.

   VIAS SOL VALVE	Air passage continuity between (A) and (B)	Air passage continuity between (A) and (C)
   ON	Yes	No
   OFF	No	Yes

   Operation takes less than 1 second.

Without CONSULT

Check air passage continuity and operation delay time as per the following conditions.

Courtesy of NISSAN NORTH AMERICA, INC.

Operation takes less than 1 second.

Is the inspection result normal?

YES

INSPECTION END

NO

Replace VIAS control solenoid valve. Refer to Exploded View .
