DTC Diagnosis Procedure

1. Turn ignition switch OFF.
2. Disconnect A/T shift selector connector.
3. Turn ignition switch ON.

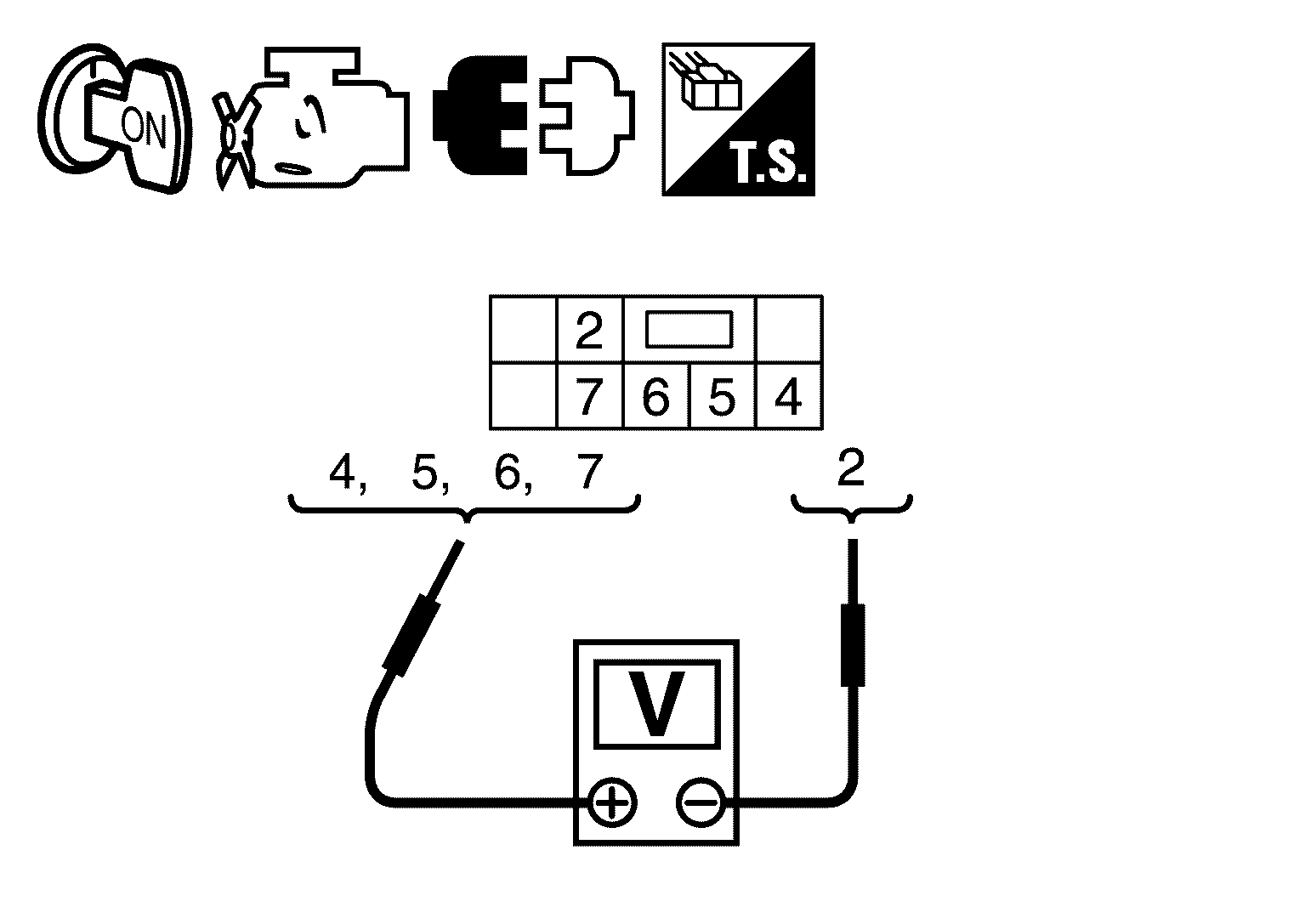

4. Check voltage between A/T shift selector harness connector terminals.

   Courtesy of NISSAN NORTH AMERICA, INC.

   A/T shift selector			Voltage
   Connector	+	-
   	Terminal
   M68	4	2	Approx. 12 V
   	5
   	6
   	7

Is the inspection result normal?

YES

GO TO 2.

NO

GO TO 3.

1. Turn ignition switch OFF.
2. Check manual mode switch. Refer to Component Inspection .

Is the inspection result normal?

YES

GO TO 6.

NO

Repair or replace damaged parts.

1. Turn ignition switch OFF.

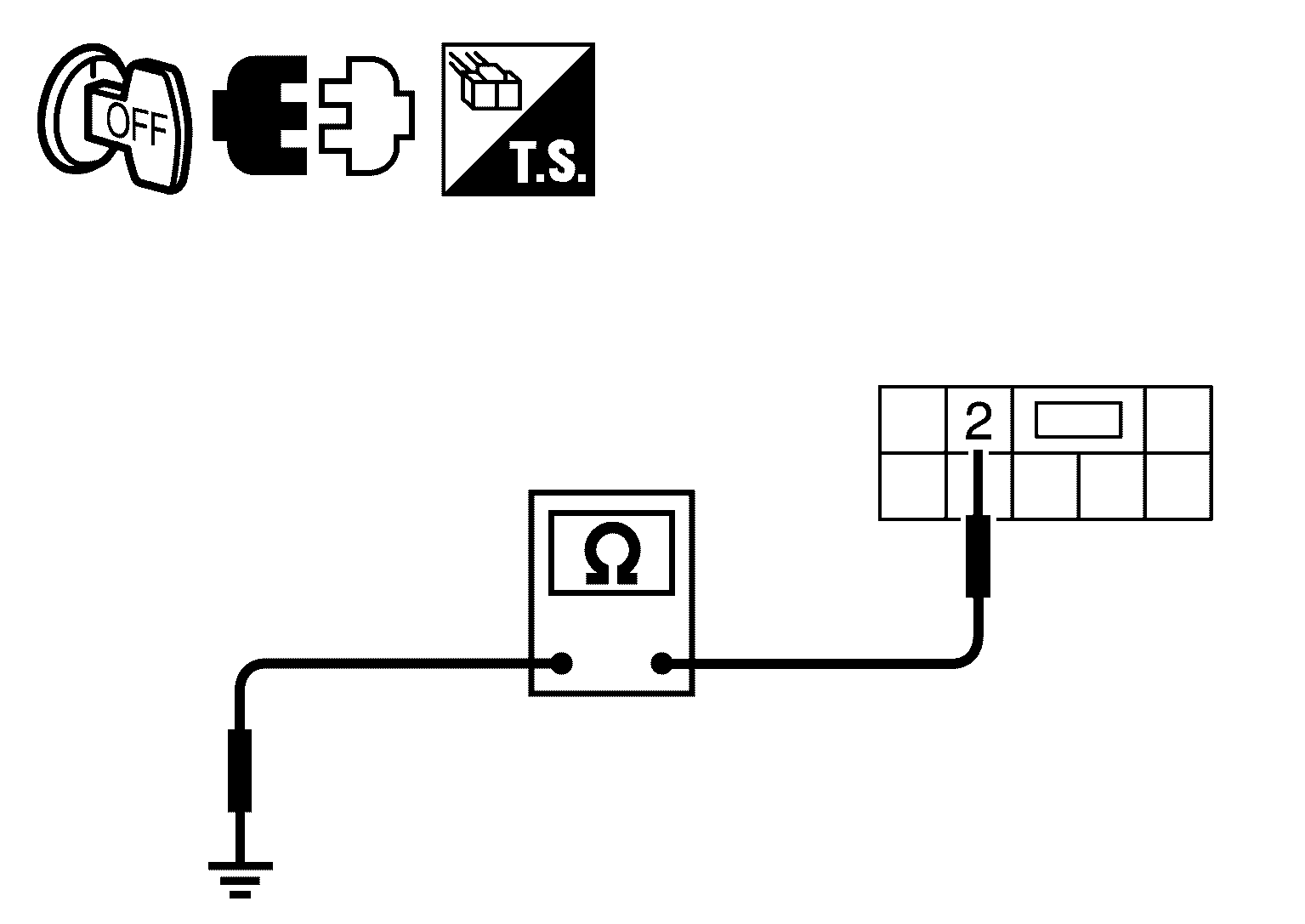

2. Check continuity between A/T shift selector harness connector terminal and ground.

   Courtesy of NISSAN NORTH AMERICA, INC.

   A/T shift selector		Ground	Continuity
   Connector	Terminal
   M68	2	Ground	Existed

Is the inspection result normal?

YES

GO TO 4.

NO

Repair or replace damaged parts.

1. Disconnect combination meter connector.

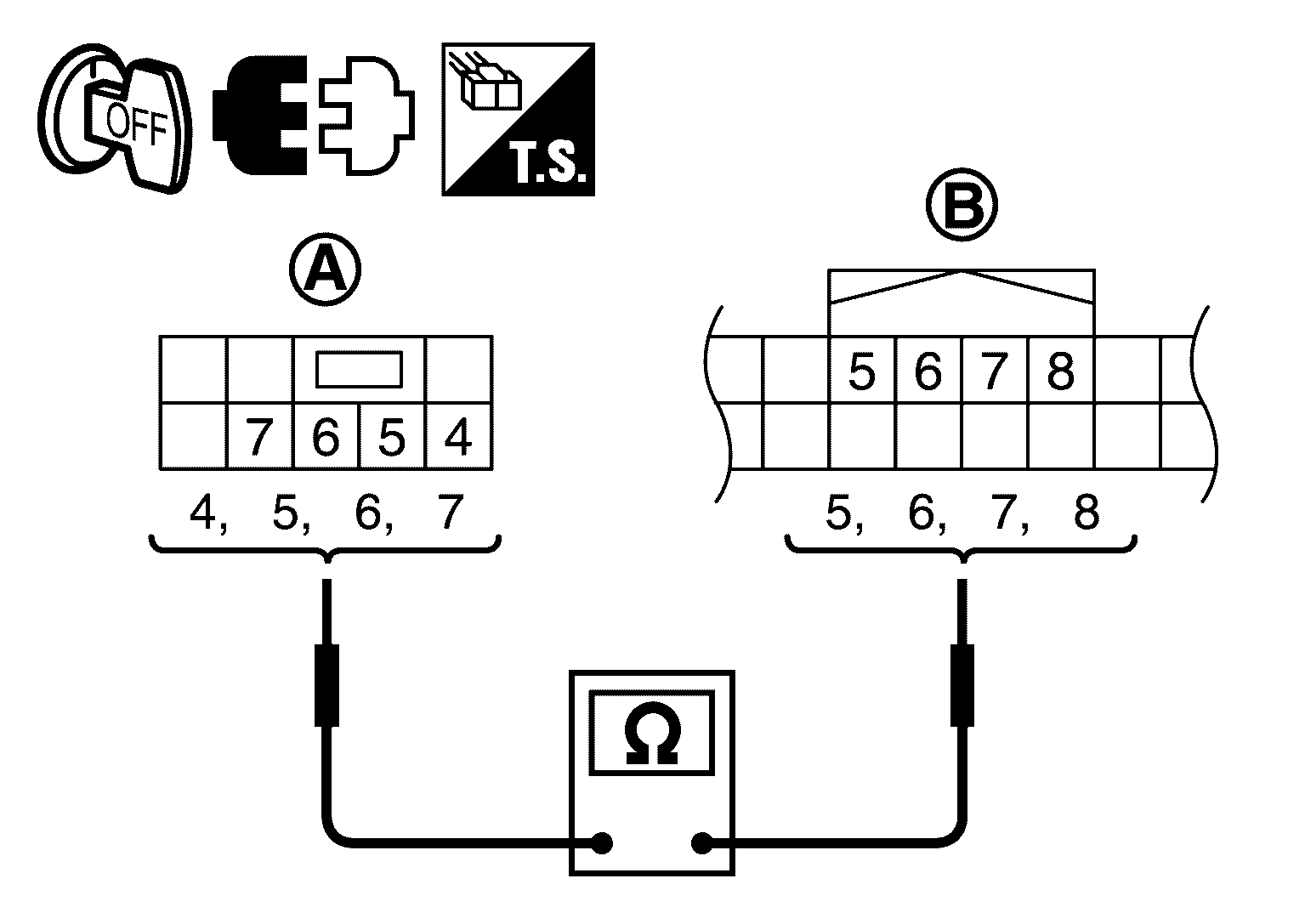

2. Check continuity between A/T shift selector harness connector terminals and combination meter harness connector terminals.

   Courtesy of NISSAN NORTH AMERICA, INC.

   A/T shift selector		Combination meter		Continuity
   Connector	Terminal	Connector	Terminal
   M68	4	M24	5	Existed
   	5		7
   	6		8
   	7		6

3. If OK, check harness for short to ground and short to power.

Is the inspection result normal?

YES

GO TO 5.

NO

Repair or replace damaged parts.

Check the following items:

• Pin terminals for damage or loose connection with harness connector.

Is the inspection result normal?

YES

GO TO 6.

NO

Repair or replace damaged parts.

1. Reconnect all the connectors.
2. Turn ignition switch ON.
3. Select "M RANGE SW", "NM RANGE SW", "AT SFT UP SW" and "AT SFT DWN SW" in "Data Monitor" in "METER/M&A".
4. Check the ON/OFF operations of each monitor item. Refer to Reference Value .

Is the inspection result normal?

YES

Replace control valve with TCM. Refer to Exploded View .

NO

Replace combination meter. Refer to Exploded View .
