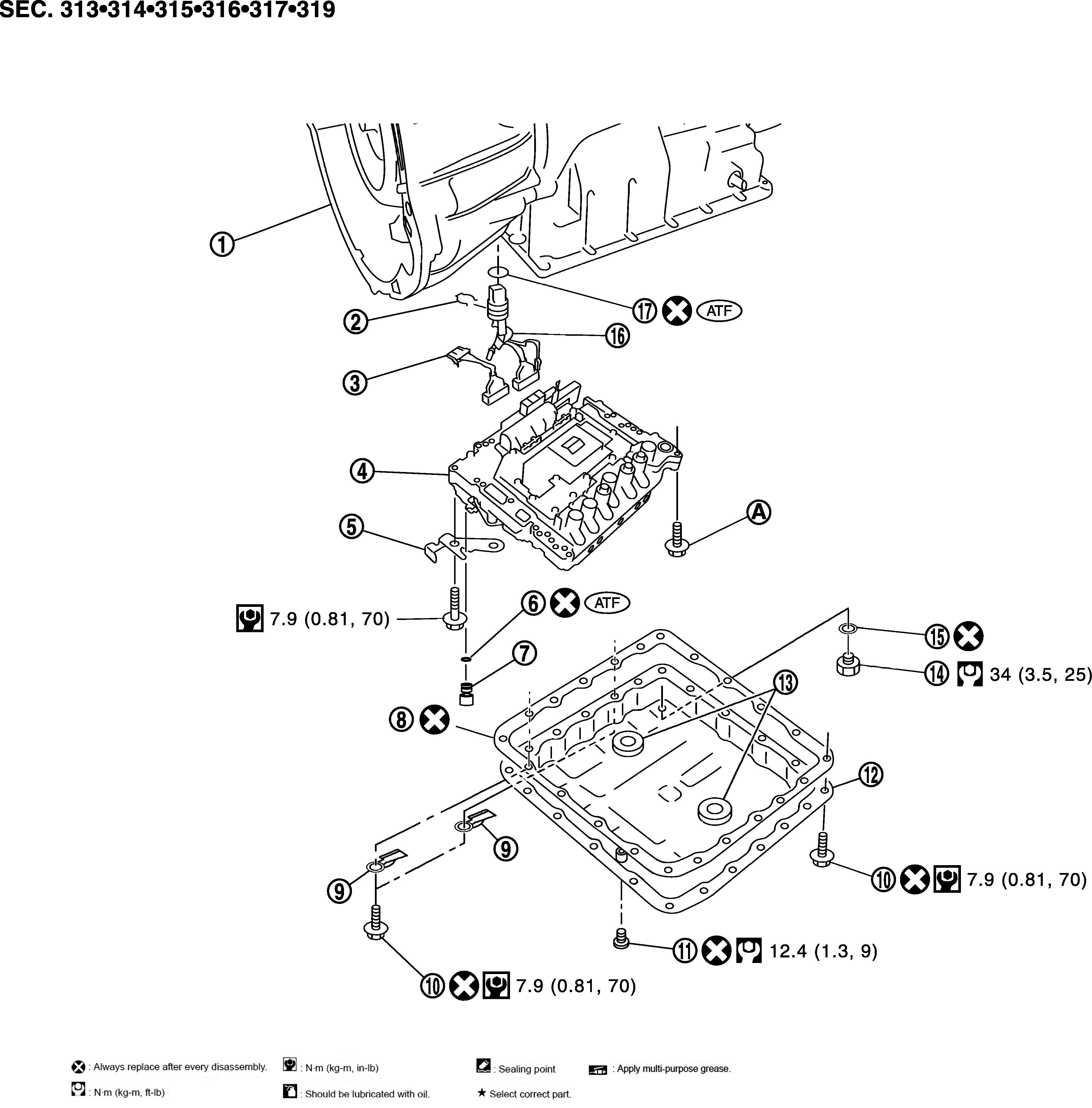

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
A/T assembly |
2. |
Snap ring |
3. |
Sub-harness |
|
4. |
Control valve with TCM |
5. |
Bracket |
6. |
O-ring |
|
7. |
Plug |
8. |
Oil pan gasket |
9. |
Clip |
|
10. |
Oil pan mounting bolt |
11. |
Overflow plug |
12. |
Oil pan |
|
13. |
Magnets |
14. |
Drain plug |
15. |
Drain plug gasket |
|
16. |
Terminal cord assembly |
17. |
O-ring |
||
|
A. |
For tightening torque, refer to "Installation". |
||||
|
Refer to Components for symbols in the figure. |
|||||
