Component Inspection
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK A/T FLUID TEMPERATURE SENSOR

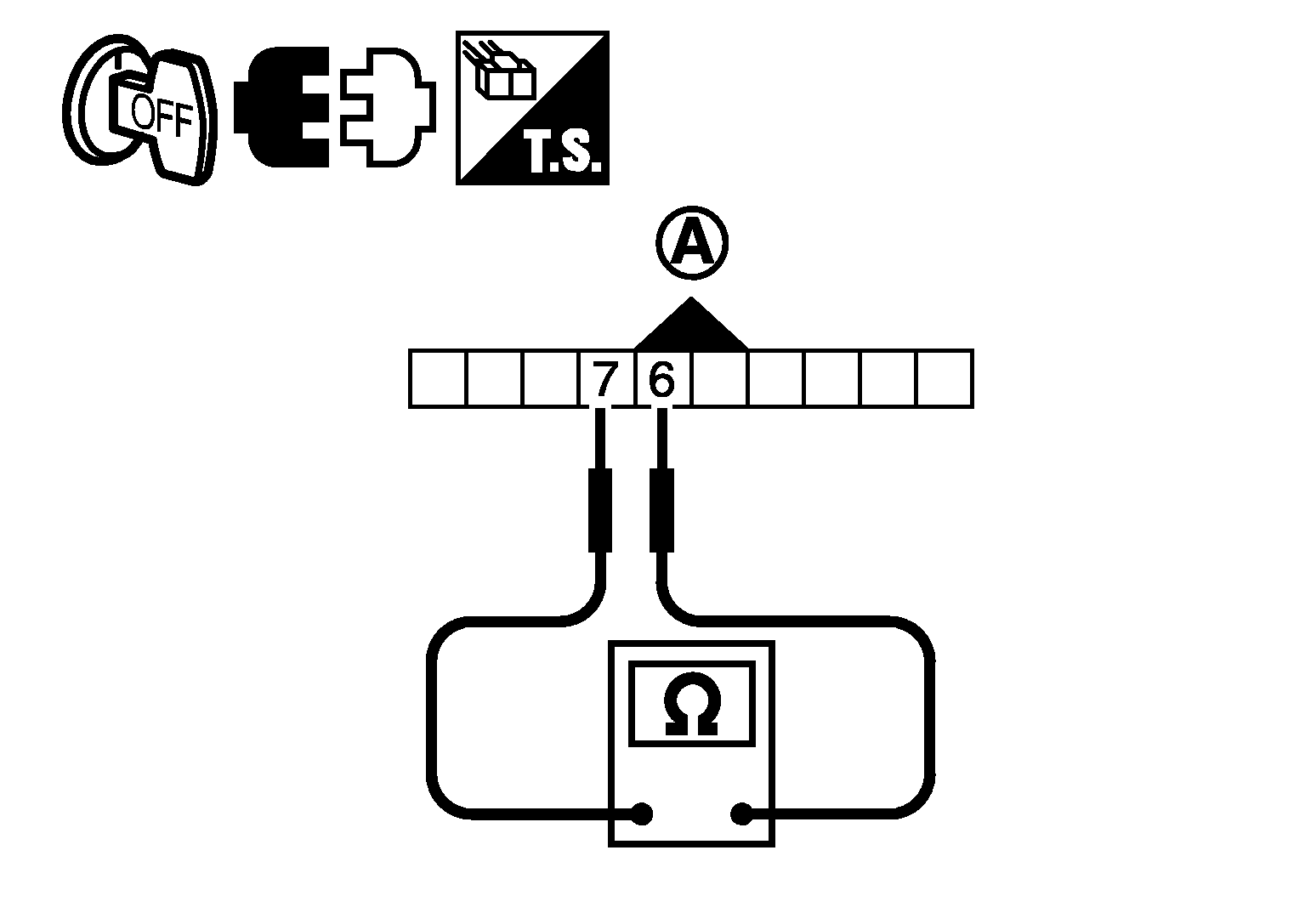

Check resistance between transmission range switch connector terminals.
Transmission range switch connector
Temperature
deg.C (deg.F)
Resistance
(Approx.)
Terminal
6
7
0 (32)
15 kOhm
20 (68)
6.5 kOhm
80 (176)
0.9 kOhm
Is the inspection result normal?
YES
INSPECTION END
NO
Replace control valve with TCM. Refer to Exploded View .
