Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Discharge refrigerant. Refer to Recycle Refrigerant .

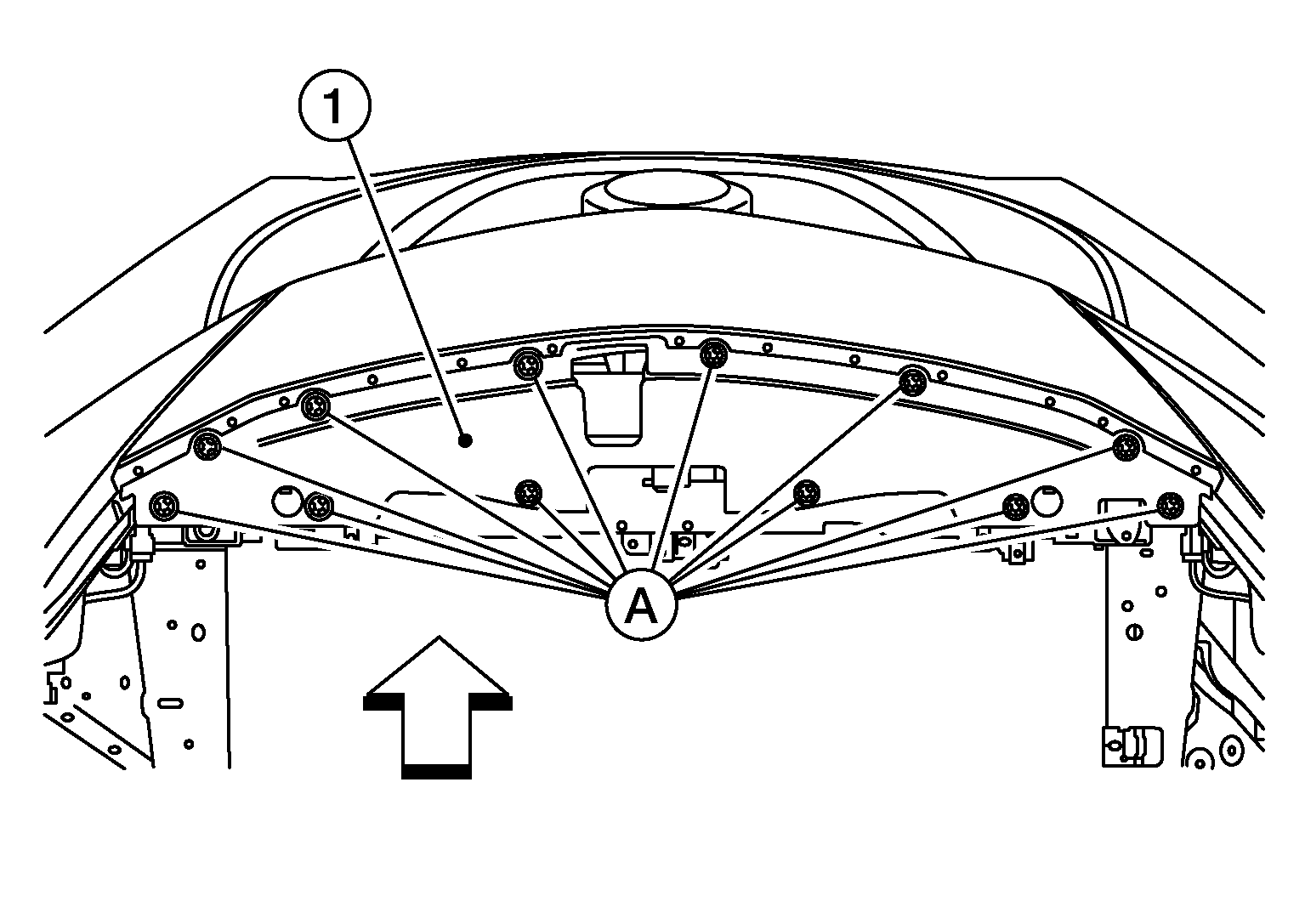

  2. Remove clips (A), then remove core support cover (1).
    GNSALKIA4008Z-008Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
  3. Remove front air duct. Refer to Removal and Installation

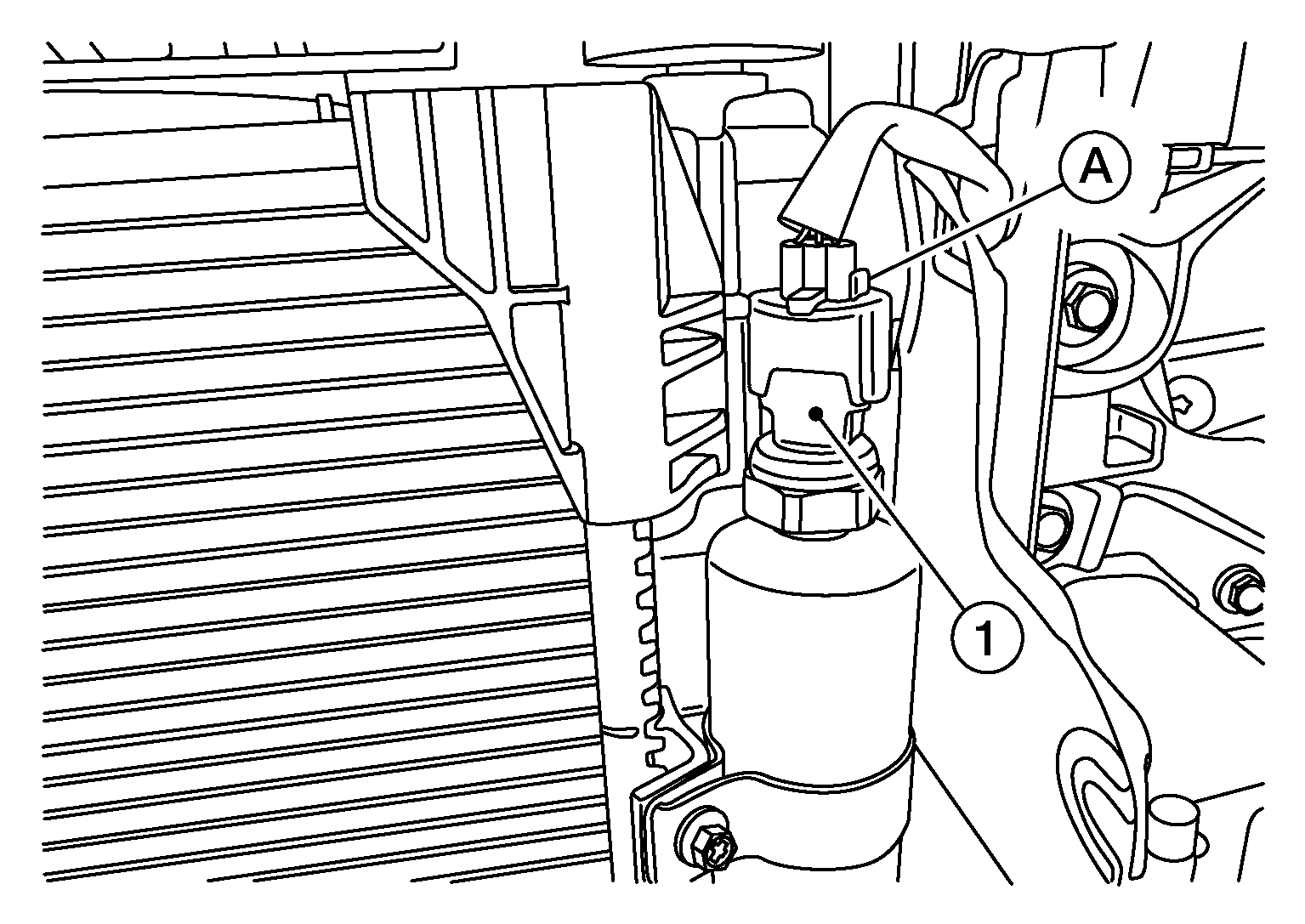

  4. Disconnect harness connector (A) from refrigerant pressure sensor (1).
    GNSALIIA1106Z-106Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove refrigerant pressure sensor.
    CAUTION: Cap or wrap the opening of the refrigerant pressure sensor with suitable material such as vinyl tape to avoid the entry of air.
