Exploded View

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

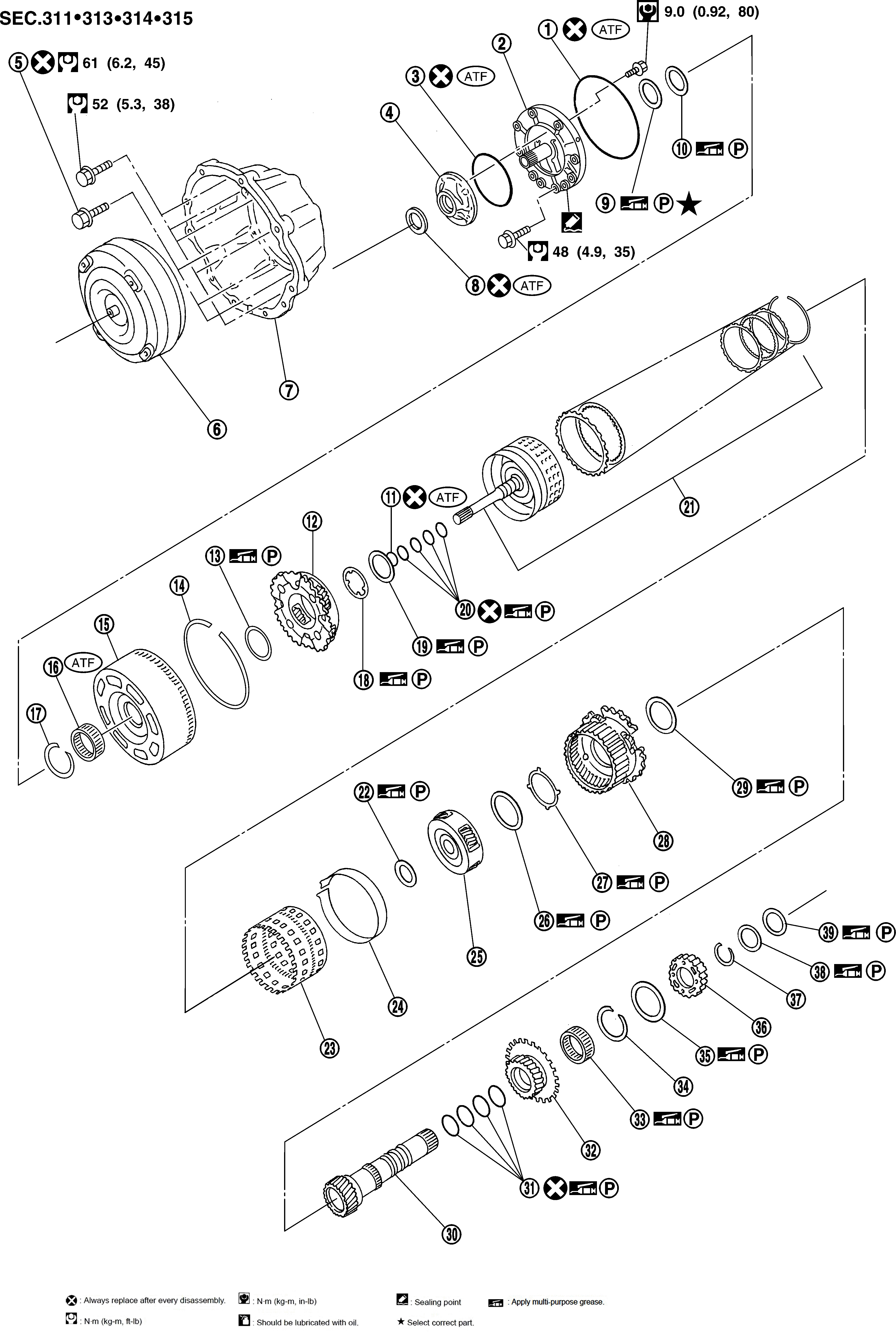

Fig 1: Transmission Unit Disassembly And Assembly With Torque Specifications (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	O-ring	2.	Oil pump cover	3.	O-ring
4.	Oil pump housing	5.	Self-sealing bolts	6.	Torque converter
7.	Converter housing	8.	Oil pump housing oil seal	9.	Bearing race
10.	Needle bearing	11.	O-ring	12.	Front carrier assembly
13.	Needle bearing	14.	Snap ring	15.	Front sun gear
16.	3rd one-way clutch	17.	Snap ring	18.	Bearing race
19.	Needle bearing	20.	Seal rings	21.	Input clutch assembly
22.	Needle bearing	23.	Rear internal gear	24.	Brake band
25.	Mid carrier assembly	26.	Needle bearing	27.	Bearing race
28.	Rear carrier assembly	29.	Needle bearing	30.	Mid sun gear
31.	Seal rings	32.	Rear sun gear	33.	1st one-way clutch
34.	Snap ring	35.	Needle bearing	36.	High and low reverse clutch hub
37.	Snap ring	38.	Bearing race	39.	Needle bearing
Refer to Components for symbols in the figure.

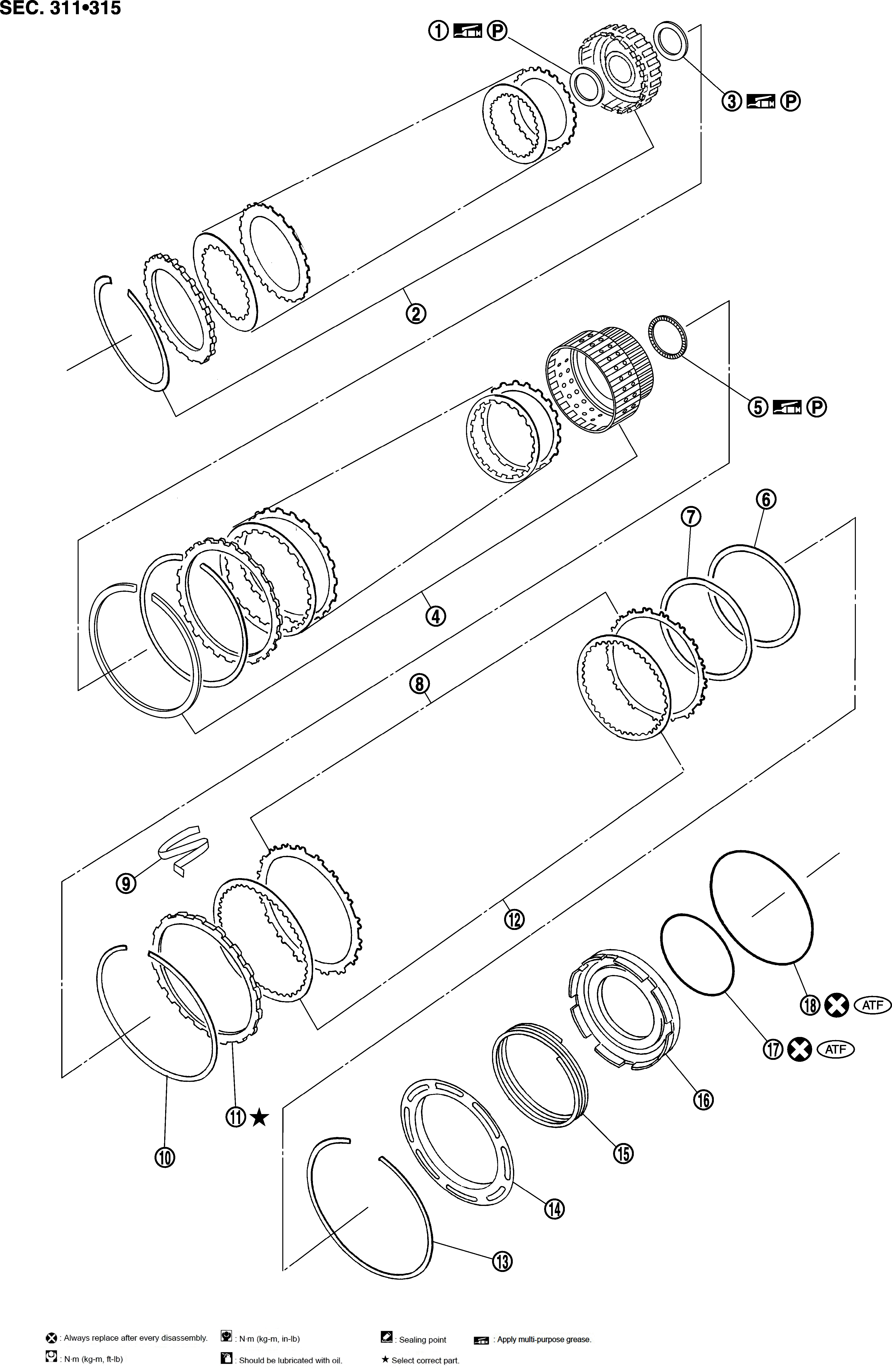

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Bearing race	2.	High and low reverse clutch assembly	3.	Needle bearing
4.	Direct clutch assembly	5.	Needle bearing	6.	Reverse brake dish plate
7.	Reverse brake dish plate	8.	Reverse brake driven plate	9.	N-spring
10.	Snap ring	11.	Reverse brake retaining plate	12.	Reverse brake drive plate
13.	Snap ring	14.	Spring retainer	15.	Return spring
16.	Reverse brake piston	17.	D-ring	18.	D-ring
Refer to Components for symbols in the figure.

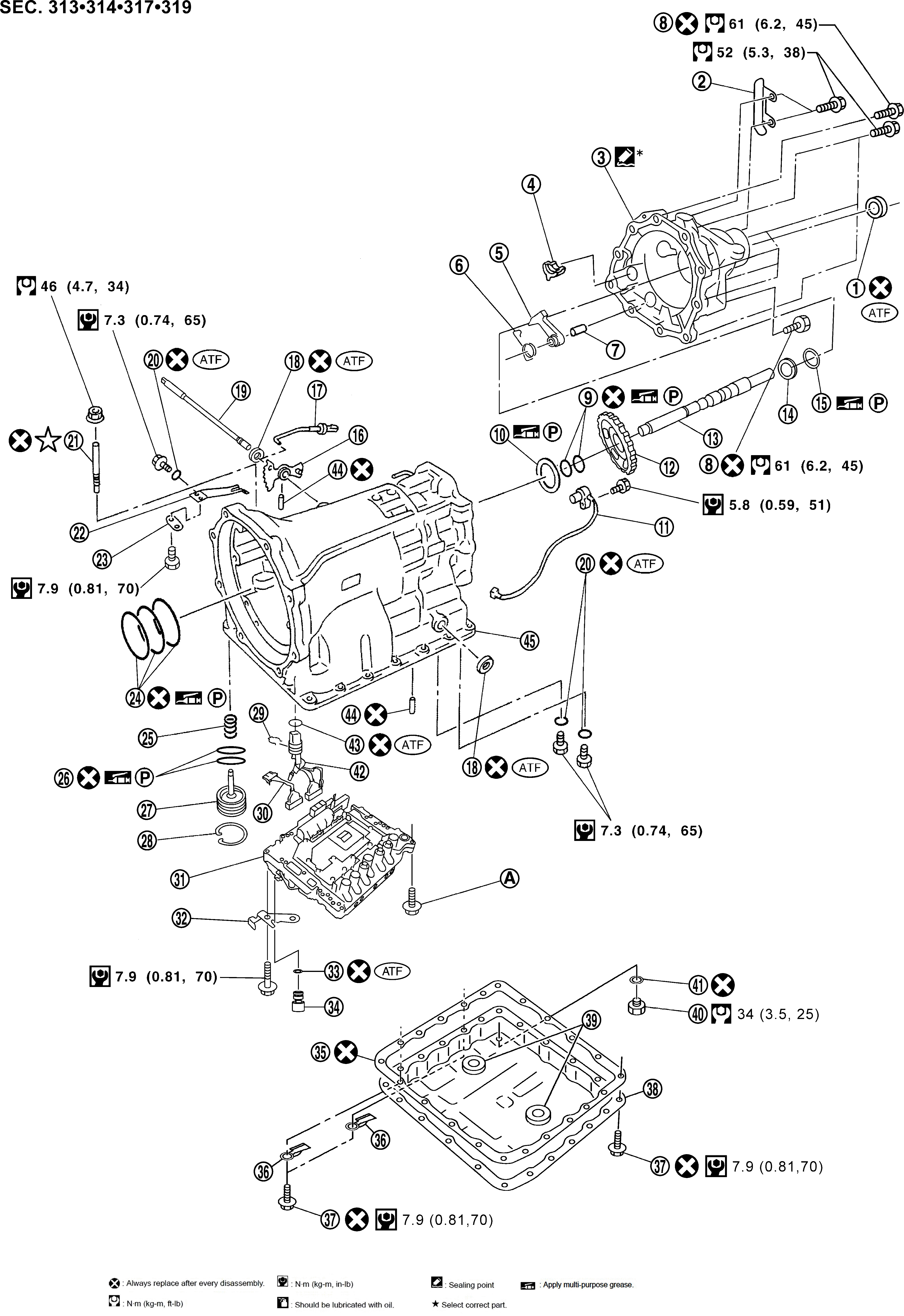

Fig 2: Transmission Unit Disassembly And Assembly With Torque Specifications (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear oil seal	2.	Bracket	3.	Adapter case
4.	Parking actuator support	5.	Parking pawl	6.	Return spring
7.	Pawl shaft	8.	Self-sealing bolt	9.	Seal rings
10.	Needle bearing	11.	Output speed sensor	12.	Parking gear
13.	Output shaft	14.	Bearing race	15.	Needle bearing
16.	Manual plate	17.	Parking rod	18.	Manual shaft oil seal
19.	Manual shaft	20.	O-ring	21.	Band servo anchor end pin
22.	Detent spring	23.	Spacer	24.	Seal rings
25.	Return spring	26.	O-rings	27.	Servo assembly
28.	Snap ring	29.	Snap ring	30.	Sub-harness
31.	Control valve with TCM	32.	Bracket	33.	O-ring
34.	Plug	35.	Oil pan gasket	36.	Brackets
37.	Oil pan bolt	38.	Oil pan	39.	Magnets
40.	Drain plug	41.	Drain plug gasket	42.	A/T assembly harness connector
43.	O-ring	44.	Retaining pin	45.	Transmission case
A.	Tightening must be done following the assembly procedure. Refer to Assembly .
*	: Apply Genuine Anaerobic Liquid Gasket or equivalent.
Refer to Components for symbols not described on the above.
