Mid Sun Gear, Rear Sun Gear, High And Low Reverse Clutch Hub: Assembly

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Install seal rings to mid sun gear.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse seal rings.

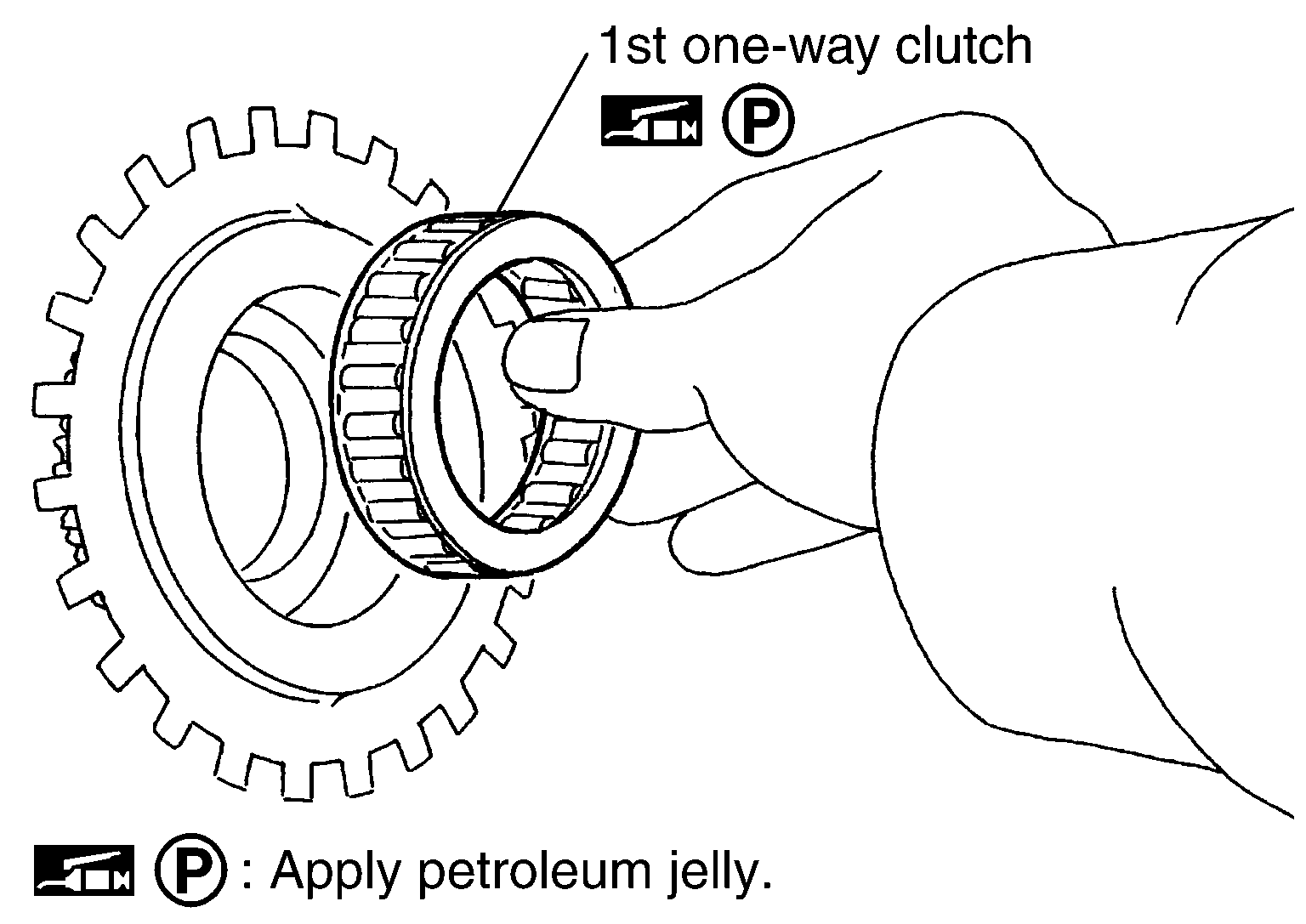

Install 1st one-way clutch to rear sun gear.

Courtesy of NISSAN NORTH AMERICA, INC.
Install snap ring to rear sun gear with a flat-bladed screwdriver.

Courtesy of NISSAN NORTH AMERICA, INC.
Install rear sun gear assembly to mid sun gear assembly.

Courtesy of NISSAN NORTH AMERICA, INC.
Install needle bearing to high and low reverse clutch hub.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Check the direction of needle bearing. Refer to Location of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings .
Install high and low reverse clutch hub to mid sun gear assembly.

Courtesy of NISSAN NORTH AMERICA, INC.
Install snap ring to mid sun gear assembly with pair of snap ring pliers.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Never expand snap ring excessively.
Check operation of 1st one-way clutch.

Courtesy of NISSAN NORTH AMERICA, INC.
1. Hold mid sun gear and turn rear sun gear.
2. Check 1st one-way clutch for correct locking and unlocking directions.
  CAUTION: If not as shown in the figure, check installation direction of 1st one-way clutch.
Install needle bearing and bearing race to high and low reverse clutch hub.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Check the direction of needle bearing. Refer to Location of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings .
