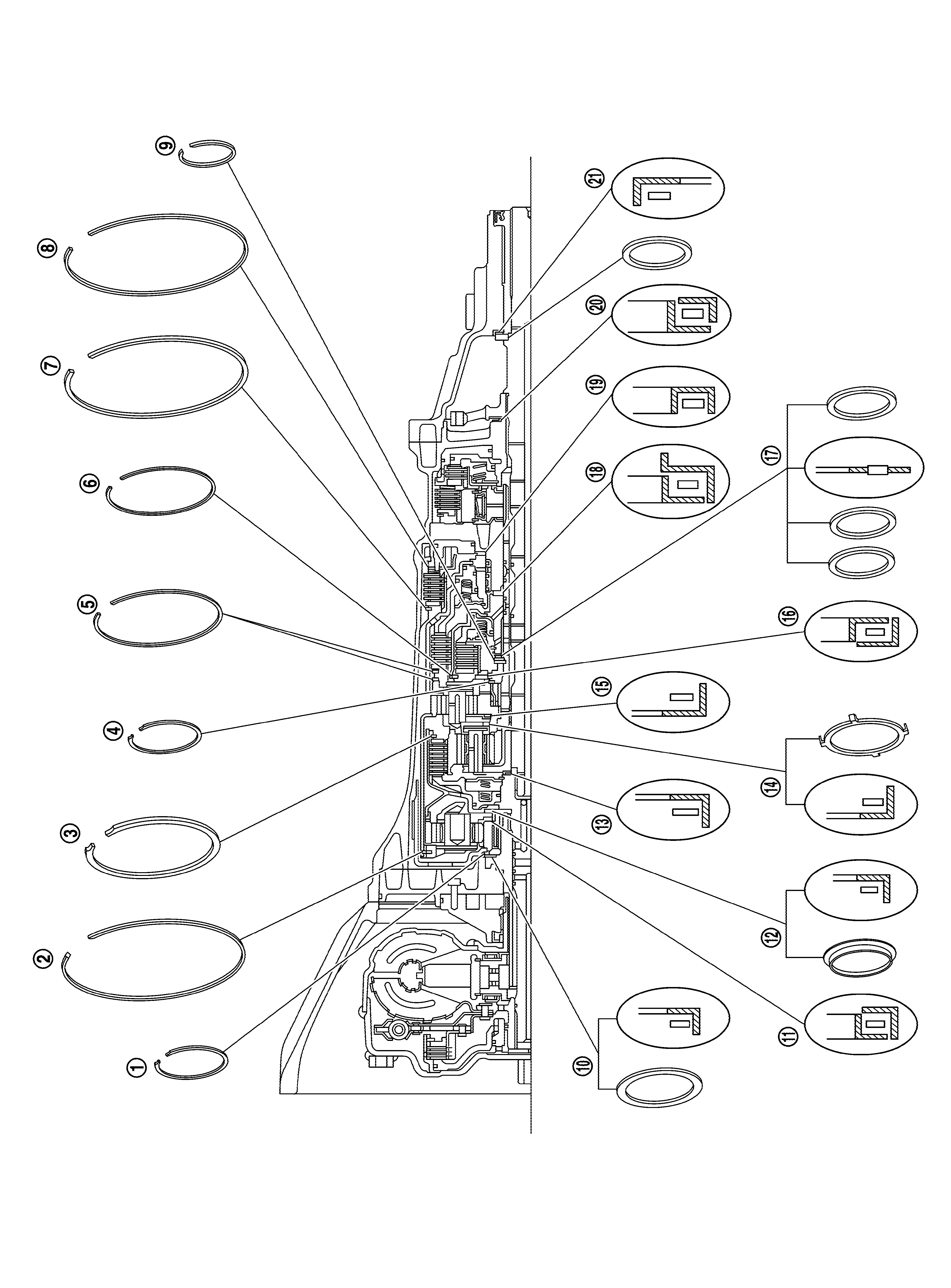

Location of Adjusting Shims, Needle Bearings, Thrust Washers
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
Snap ring |
Needle bearing |
||
|
Item number |
Outer diametermm (in) |
Item number |
Outer diametermm (in) |
|
1 |
67.5 (2.657) |
10 |
80 (3.149) |
|
2 |
180.4 (7.102) |
11 |
77 (3.031) |
|
3 |
171.5 (6.751) |
12 |
77 (3.031) |
|
4 |
70.5 (2.776) |
13 |
47 (1.850) |
|
5 |
169 (6.653) |
14 |
84 (3.307) |
|
6 |
135 (5.315) |
15 |
84 (3.307) |
|
7 |
180.5 (7.106) |
16 |
92 (3.622) |
|
8 |
181 (7.125) |
17 |
60 (2.362) |
|
9 |
48.4 (1.906) |
18 |
62.8 (2.472) |
|
-- |
-- |
19 |
92 (3.622) |
|
-- |
-- |
20 |
65 (2.559) |
|
-- |
-- |
21 |
60 (2.362) |
