High And Low Reverse Clutch: Assembly

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

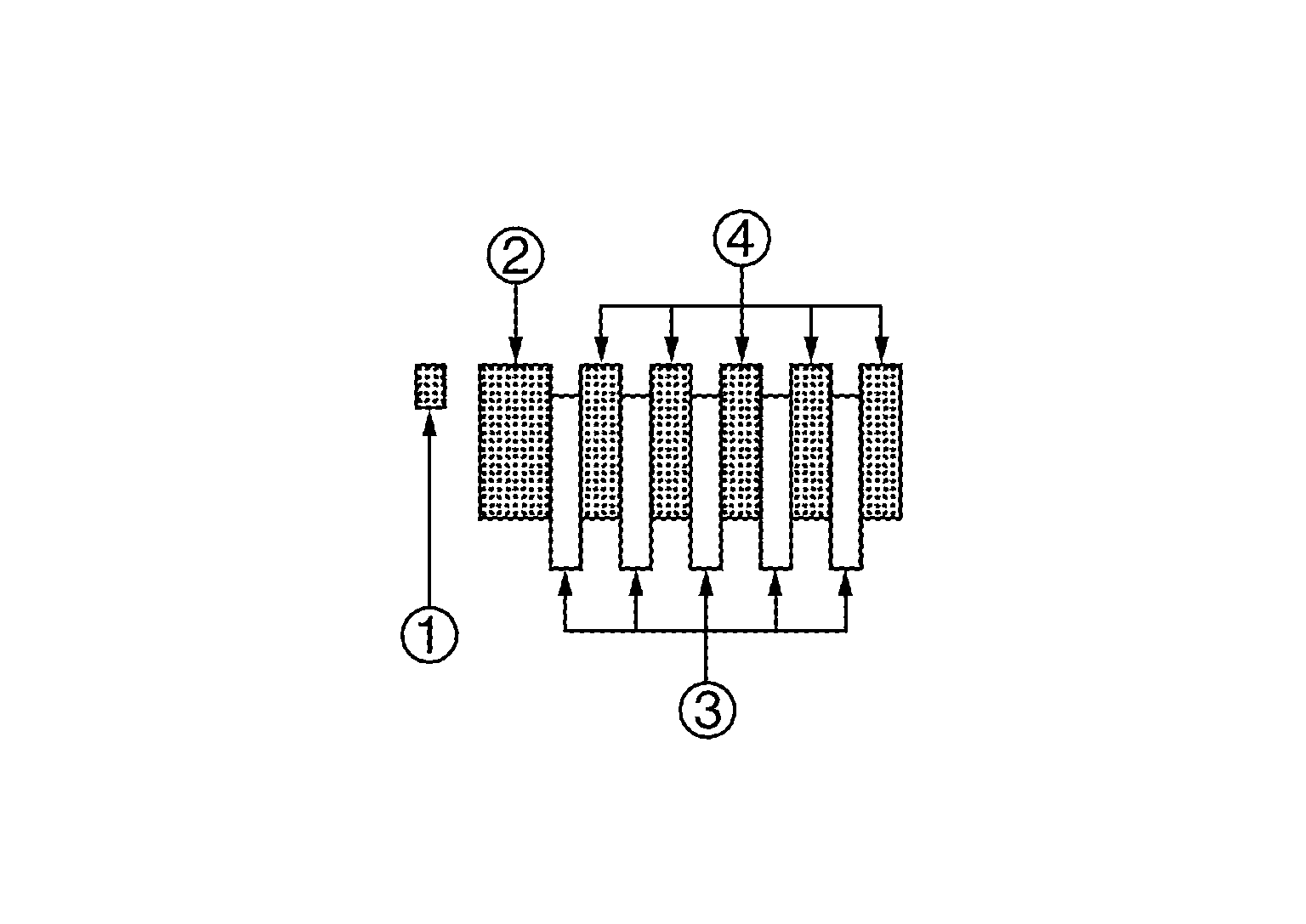

  1. Install drive plates, driven plates, retaining plate and snap ring to high and low reverse clutch drum.
    CAUTION: Check the order of plates.
    G04121080Courtesy of NISSAN NORTH AMERICA, INC.

    1

    : Snap ring

    2

    : Retaining plate

    3

    : Drive plate

    4

    : Driven plate

    5/5

    : Drive plate / Driven plate
  2. Install snap ring to high and low reverse clutch drum with a flat-bladed screwdriver.
    G04075903Courtesy of NISSAN NORTH AMERICA, INC.
  3. Install bearing race to high and low reverse clutch drum.
    G04075901Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Check the direction of needle bearing. Refer to Location of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings .
