Front Carrier, Input Clutch, Rear Internal Gear: Assembly

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

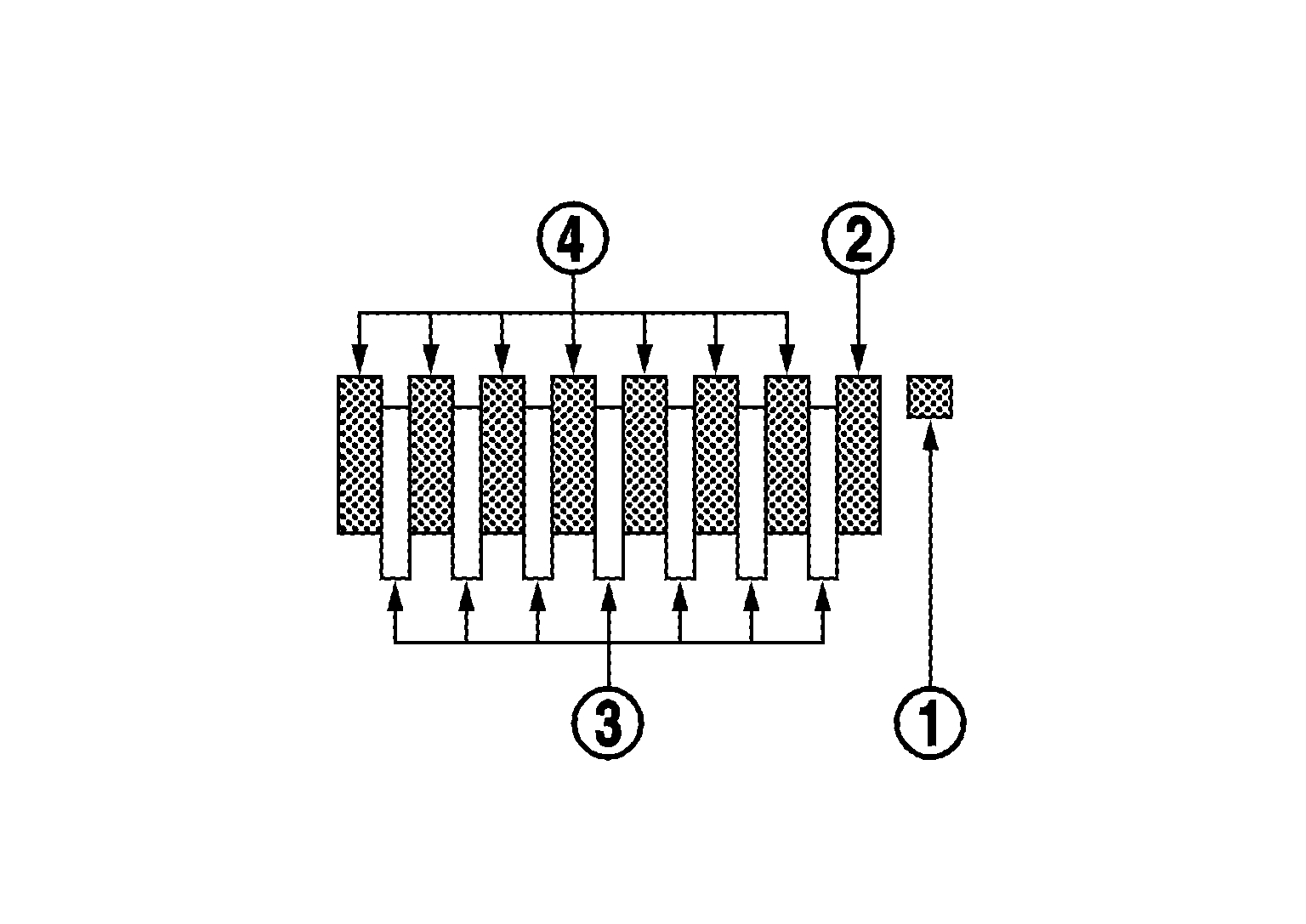

Install drive plates, driven plates, retaining plate and snap ring to input clutch drum.

Courtesy of NISSAN NORTH AMERICA, INC.

1	: Snap ring
2	: Retaining plate
3	: Drive plate
4	: Driven plate
7 /7	: Drive plate / Driven plate

CAUTION: Check order of plates.

Install snap ring to input clutch drum with a flat-bladed screwdriver.

Courtesy of NISSAN NORTH AMERICA, INC.
Install needle bearing to input clutch assembly.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Check the direction of needle bearing. Refer to Location of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings .

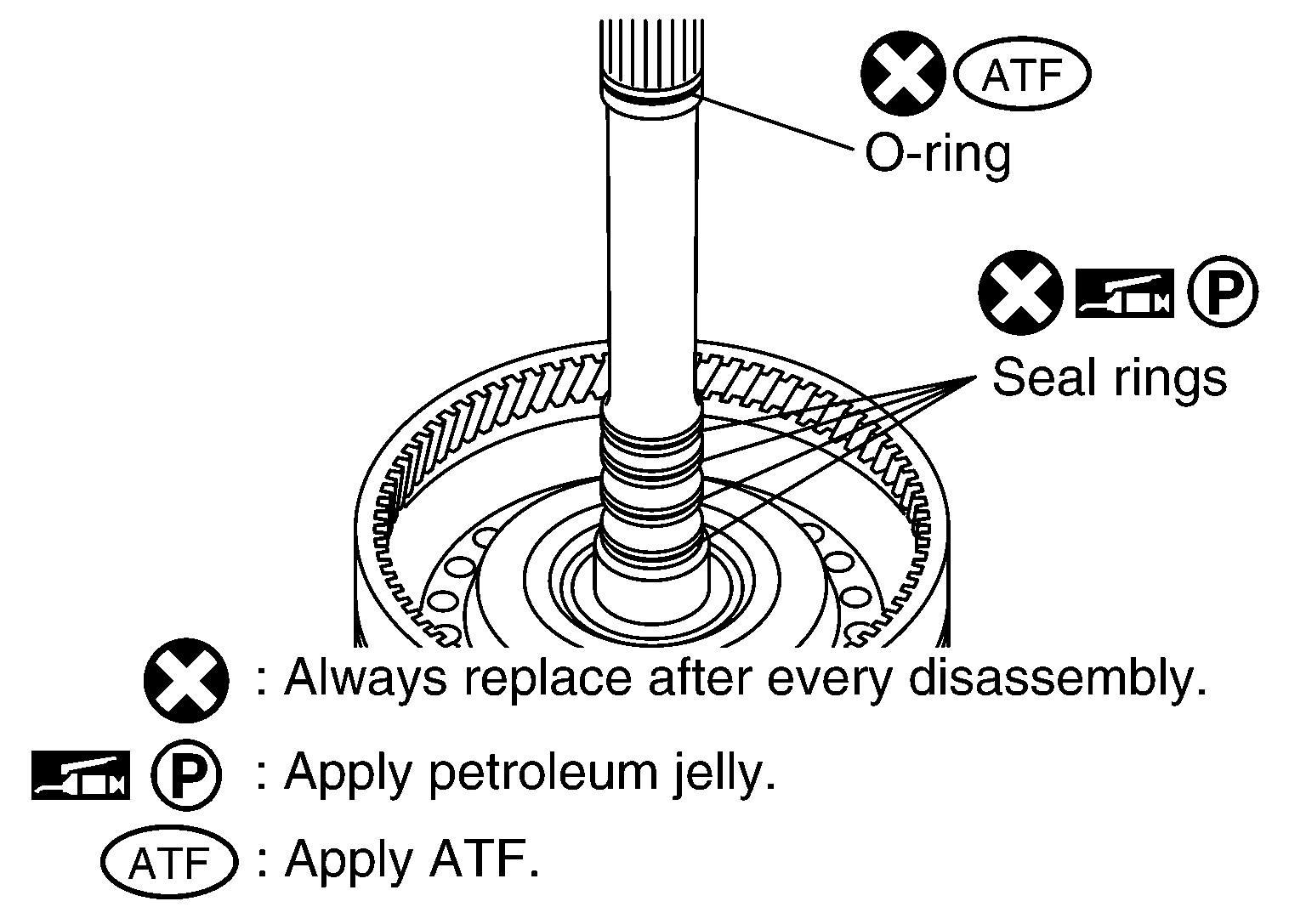

Install O-ring and seal rings to input clutch assembly.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse O-ring or seal rings.

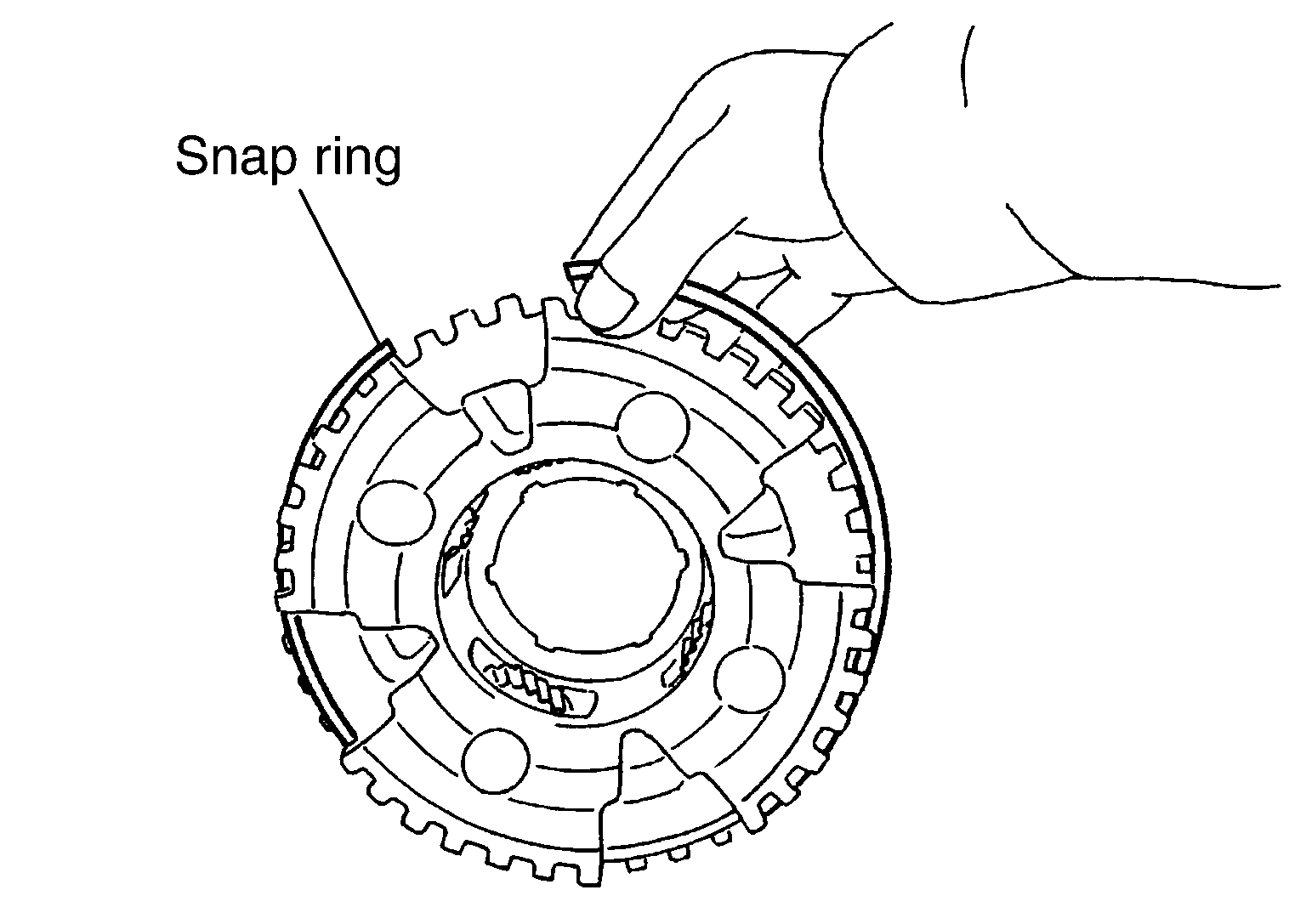

Install snap ring to front carrier assembly.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Never expand snap ring excessively.

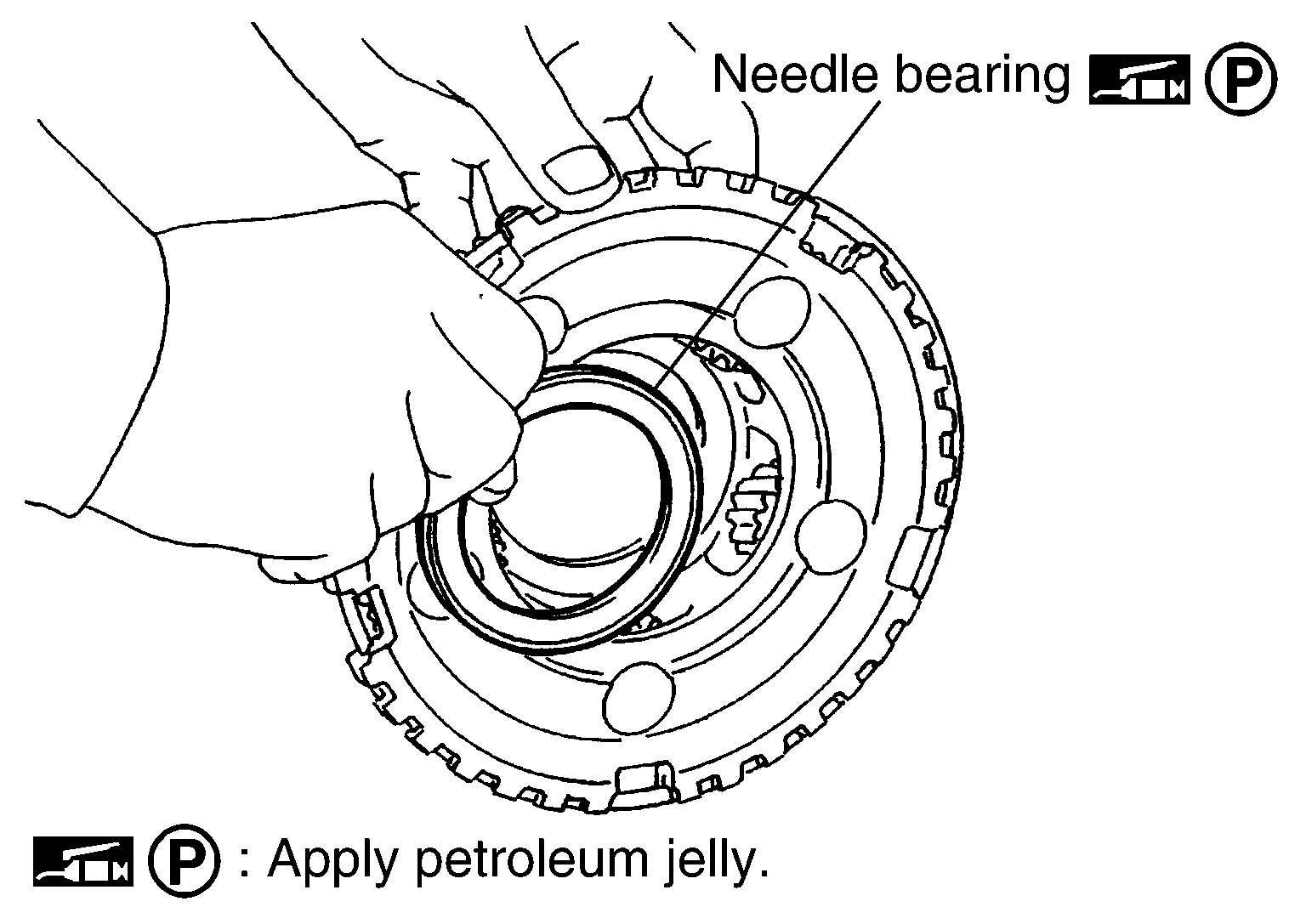

Install needle bearing to front carrier assembly.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Check the direction of needle bearing. Refer to Location of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings .

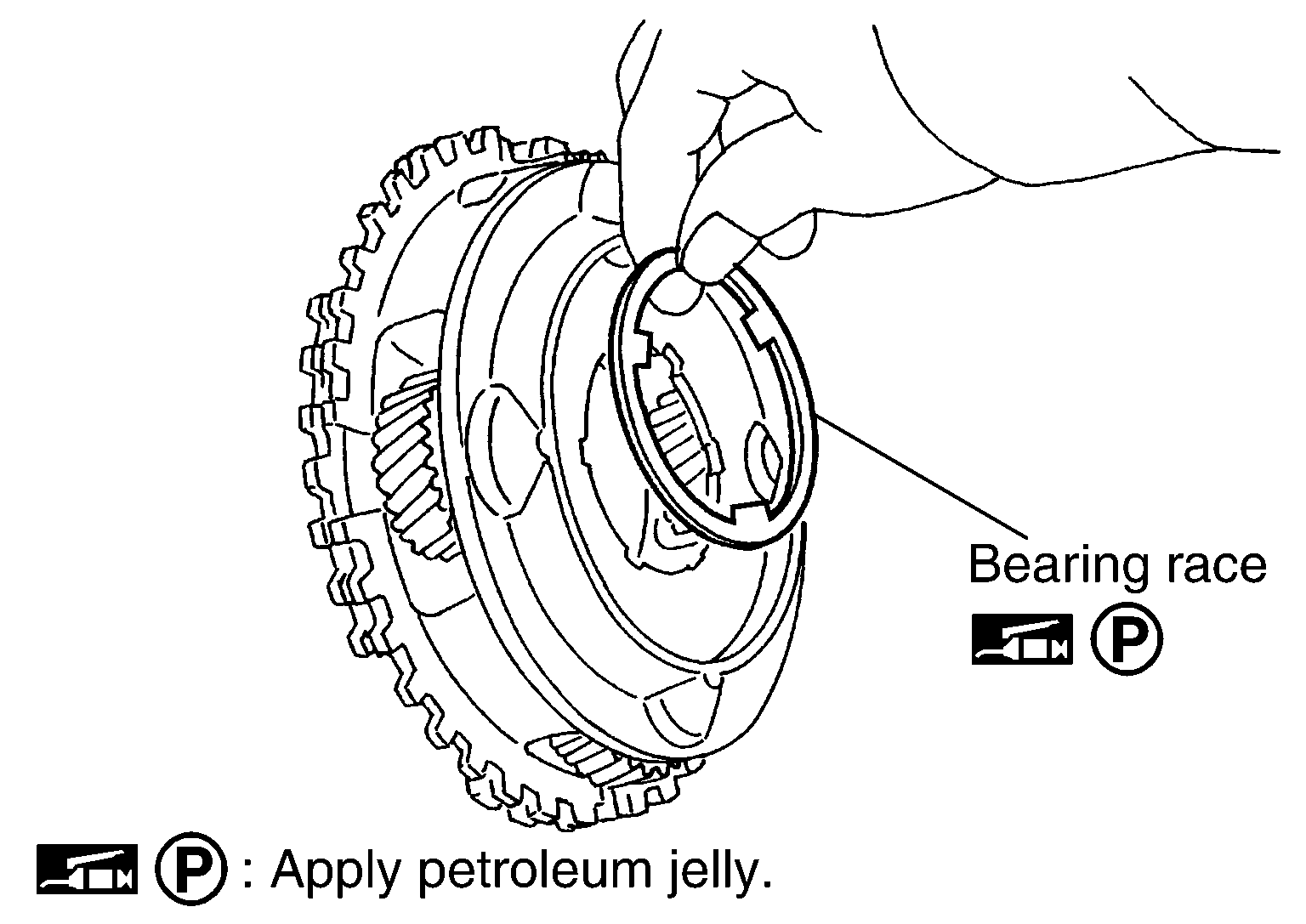

Install bearing race to front carrier assembly.

Courtesy of NISSAN NORTH AMERICA, INC.

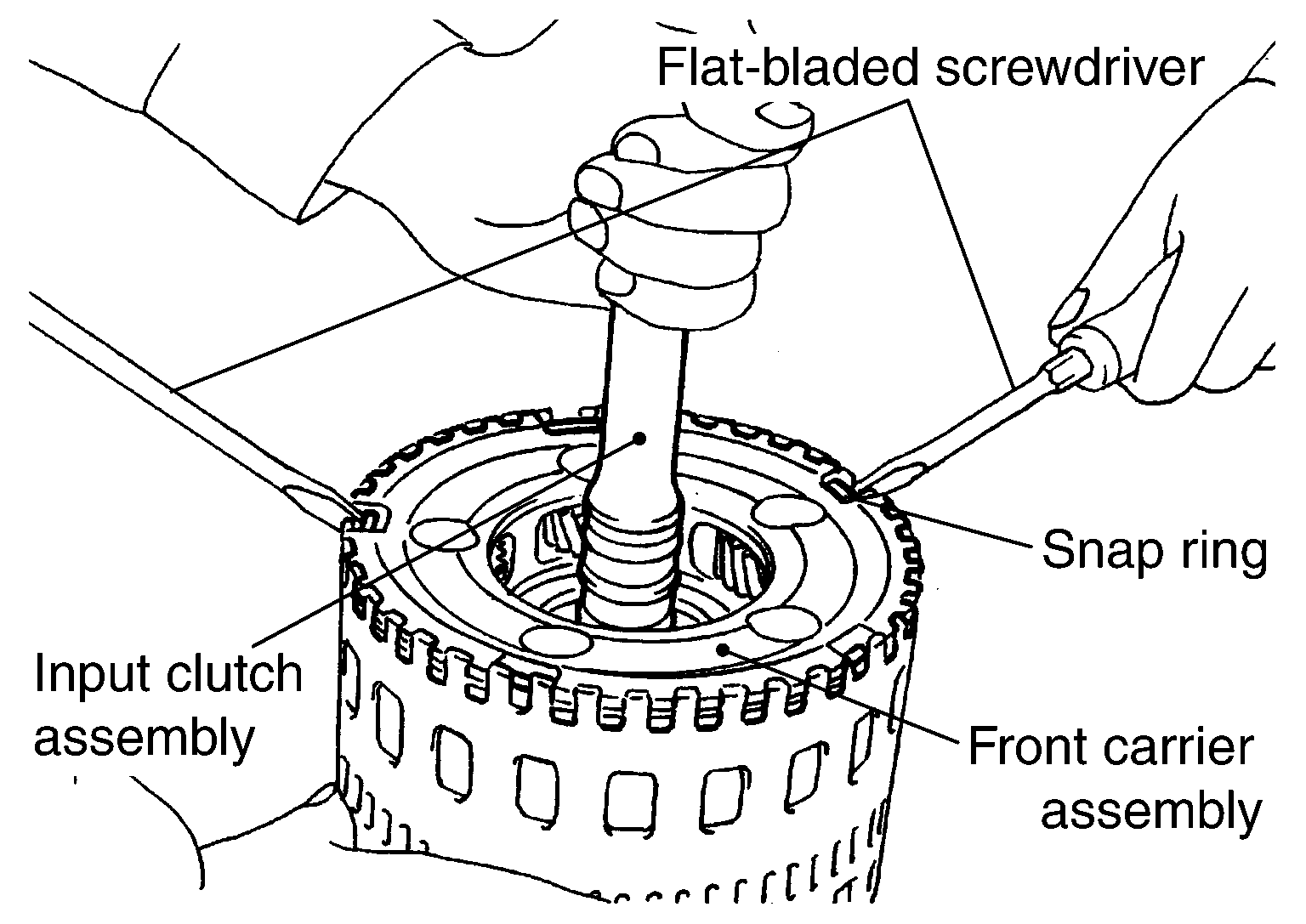

Install front carrier assembly to input clutch assembly.
Compress snap ring with two flat-bladed screwdrivers.

Courtesy of NISSAN NORTH AMERICA, INC.
Install front carrier assembly and input clutch assembly to rear internal gear.
