Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative terminal. Refer to Battery Disconnect .
- Remove front air duct. Refer to Removal and Installation .

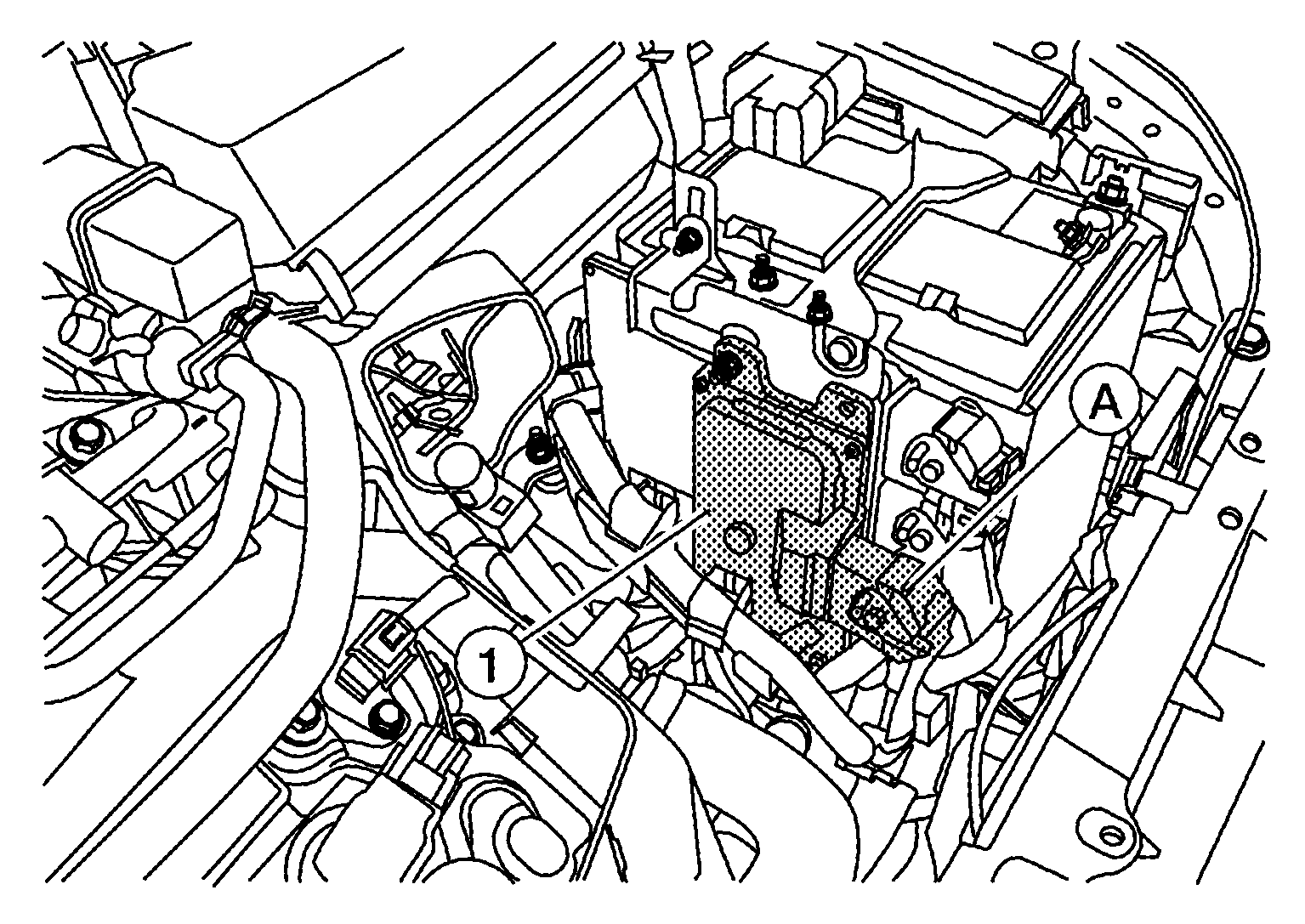

- Disconnect the harness connector (A) from TCM (1).
- Remove the TCM nuts and remove TCM from bracket.
