Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the parking brake.
    CAUTION: Make sure the vehicle cannot move with the parking brake applied.
  2. Remove the front air duct and air cleaner case assembly. Refer to Removal and Installation .

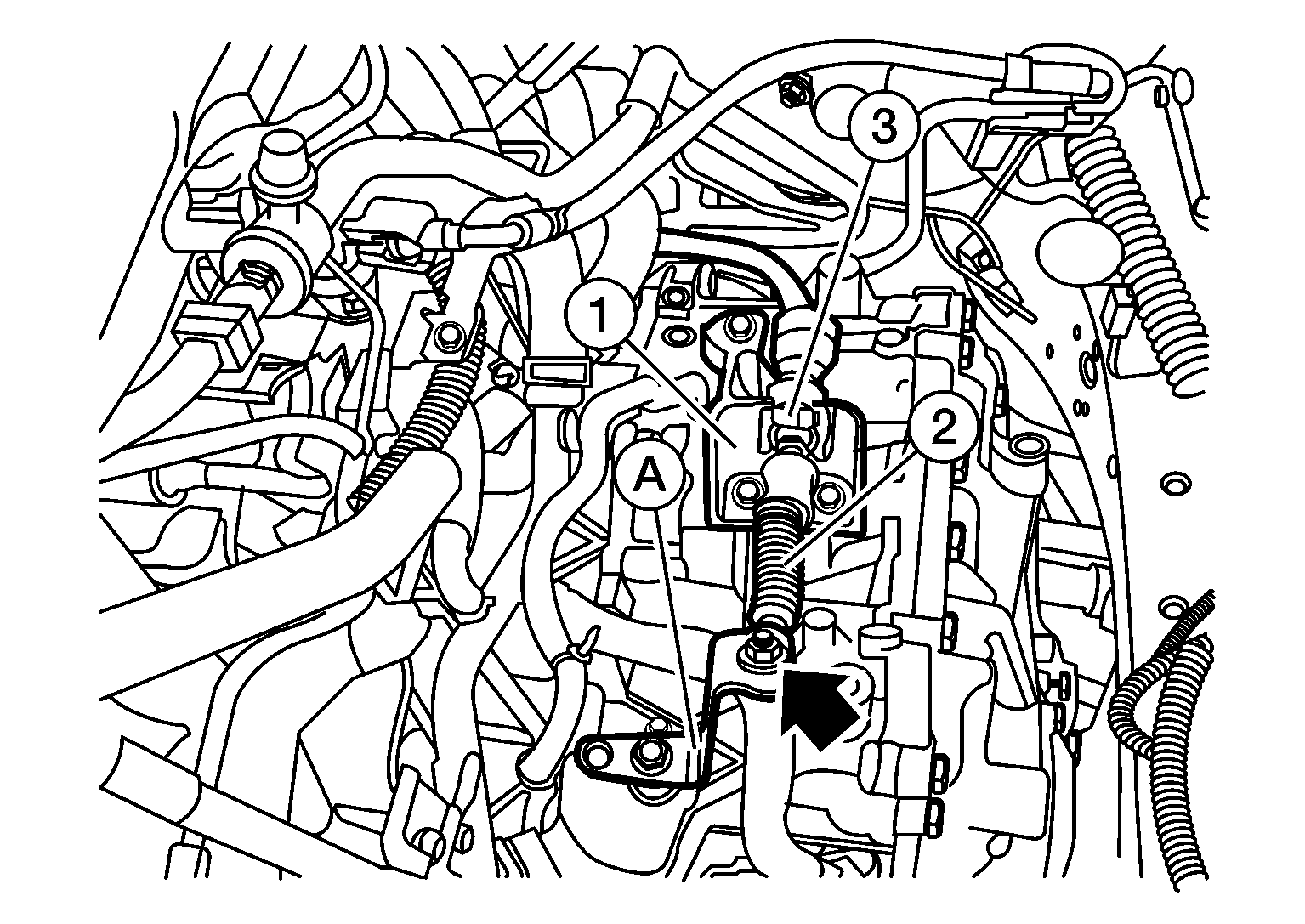

  3. Remove the control cable nut (SYMBOL ), using suitable tool.
    GNSALDIA0360Z-360Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove control cable (2) from manual lever (A).
  5. Remove the lock plate (3) from control cable (2).
  6. Remove control cable (2) from bracket (1).
  7. Remove center console. Refer to Removal and Installation .
  8. Disconnect the around view monitor control unit harness connectors and remove the around view monitor control unit (if equipped). Refer to Removal and Installation .
  9. Remove control cable (1) from the CVT shift selector assembly (2).
    GNSJSDIA1624Z-624Courtesy of NISSAN NORTH AMERICA, INC.

    (A): Ribbed surface

  10. Pull back dash trim and remove two retainer grommet bolts.
  11. Thread the control cable through the sheet metal and remove the control cable from the vehicle.
