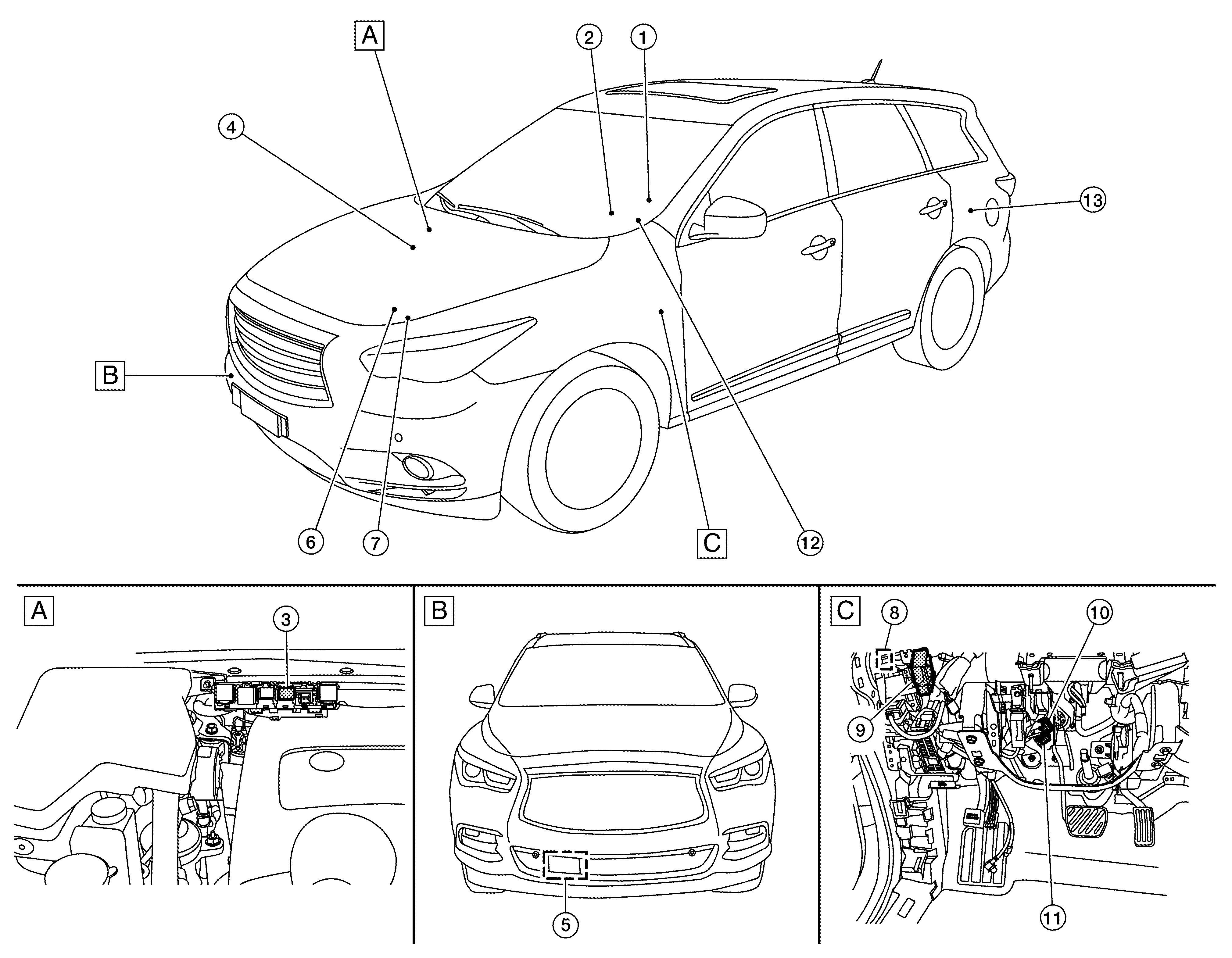

Component Parts Location

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

Back side of engine room (RH)

(view with relay cover removed)

Radiator core support assembly (RH)

Upper side of brake pedal

(view with instrument panel LH removed)

Function
No.	Component	Vehicle-to-vehicle distance control mode	Conventional (fixed speed) cruise control mode	Forward Emergency Braking (FEB)	Function
1.	ICC steering switch	x	x	Description: Refer to ICC Steering Switch System display and warning (Vehicle-to-vehicle distance control mode): Switch Name and Function System display and warning (Conventional cruise control mode): Switch Name and Function
2.	Combination meter (Information display, FEB OFF indicator lamp, buzzer)	x	x	x	Description: Refer to Combination Meter System display and warning (Vehicle-to-vehicle distance control mode): Menu Displayed by Pressing Each Switch System display and warning (Conventional cruise control mode): Menu Displayed by Pressing Each Switch
3.	ICC brake hold relay	x	x			Refer to ICC Brake Hold Relay
4.	ABS actuator and electric unit (control unit)	x	x	x	ABS actuator and electric unit (control unit) transmits the vehicle speed signal (wheel speed), stop lamp signal and VDC/TCS/ABS system operation condition to ADAS control unit via CAN communication ABS actuator and electric unit (control unit) controls the brake, based on a brake fluid pressure control signal received from the ADAS control unit via CAN communication Refer to Component Parts Location (Type 1) or Component Parts Location (Type 2) for detailed installation location
5.	Distance sensor (ICC sensor)	x	x	x	Refer to Distance Sensor (ICC Sensor)
6.	TCM	x	x	TCM transmits the signal related to CVT control to ADAS control unit via CAN communication Refer to Component Parts Location for detailed installation location
7.	ECM	x	x	x	ECM transmits the accelerator pedal position signal, brake pedal position switch signal, stop lamp switch signal, ICC steering switch signal, etc. to ADAS control unit via CAN communication ECM controls the electric throttle control actuator based on the engine torque demand received from the ADAS control unit via CAN communication Refer to Component Parts Location for detailed installation location
8.	Warning buzzer	x	x	x	Refer to Warning Buzzer
9.	ADAS control unit 2	x	x	x	Refer to ADAS Control Unit 2
10.	Brake pedal position switch	x	x	x	Refer to Brake Pedal Position Switch/Stop Lamp Switch
11.	Stop lamp switch	x	x	x	Refer to Brake Pedal Position Switch/Stop Lamp Switch
12.	Steering angle sensor	x	Measures the rotation amount, rotation speed, and rotation direction of steering wheel, and then transmits them to ADAS control unit via CAN communication
13.	ADAS control unit	x	x	x	Refer to ADAS Control Unit Refer to Component Parts Location for detailed installation location
