Component Parts Location

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

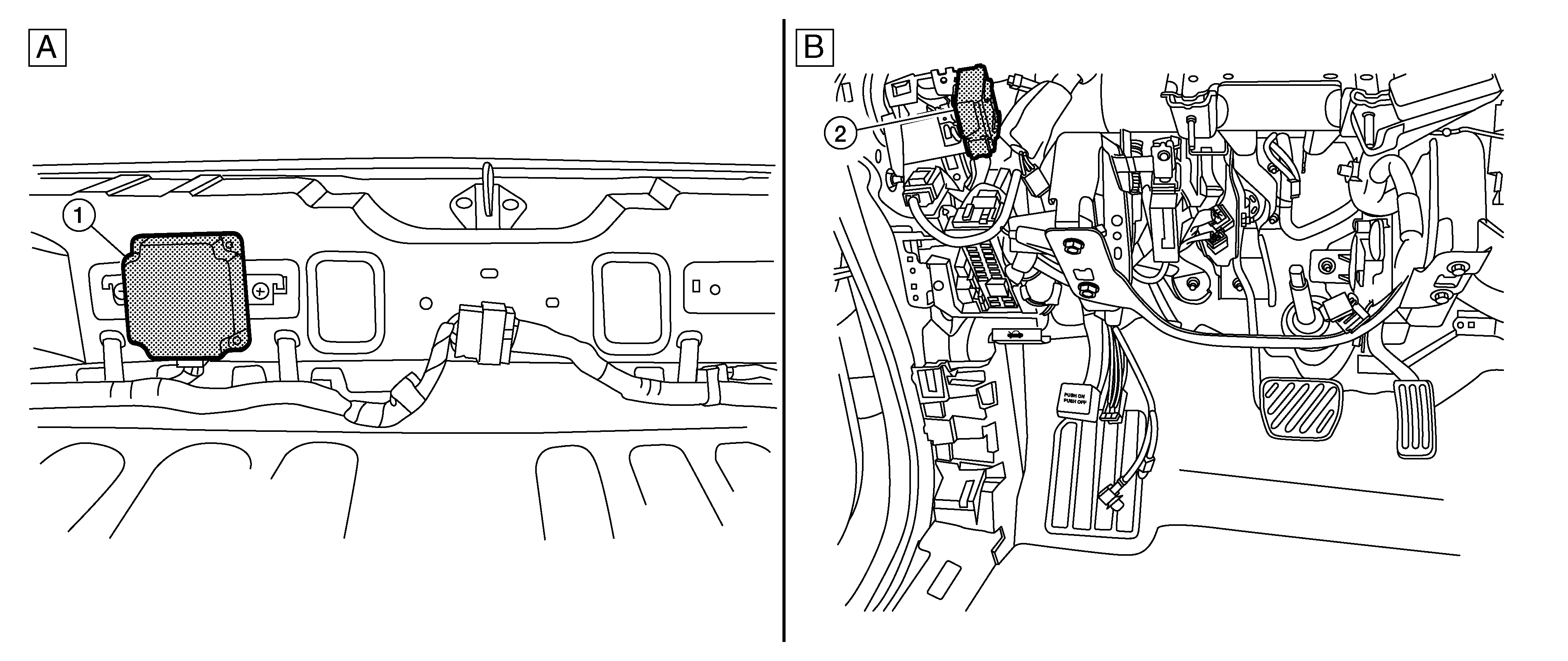

ADAS control unit (view of rear luggage room area with storage box removed)

ADAS control unit 2 (view of instrument lower panel LH removed)

No.	Component	Description
1.	ADAS control unit	Controls each system, based on CAN communication, ITS communication and chassis communication signals received from each control unit Transmits signals necessary for control between CAN communication, ITS communication and Chassis communication
2.	ADAS control unit 2	Controls each system, based on CAN communication (via ADAS control unit), ITS communication and chassis communication signals received from each control unit Transmits signals necessary for control between CAN communication (via ADAS control unit), ITS communication, and Chassis communication
