Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument lower panel LH. Refer to Removal and Installation .
  2. Remove lower knee protector. Refer to Exploded View .
  3. Disconnect harness connector from parking brake switch.
  4. Remove parking brake switch.

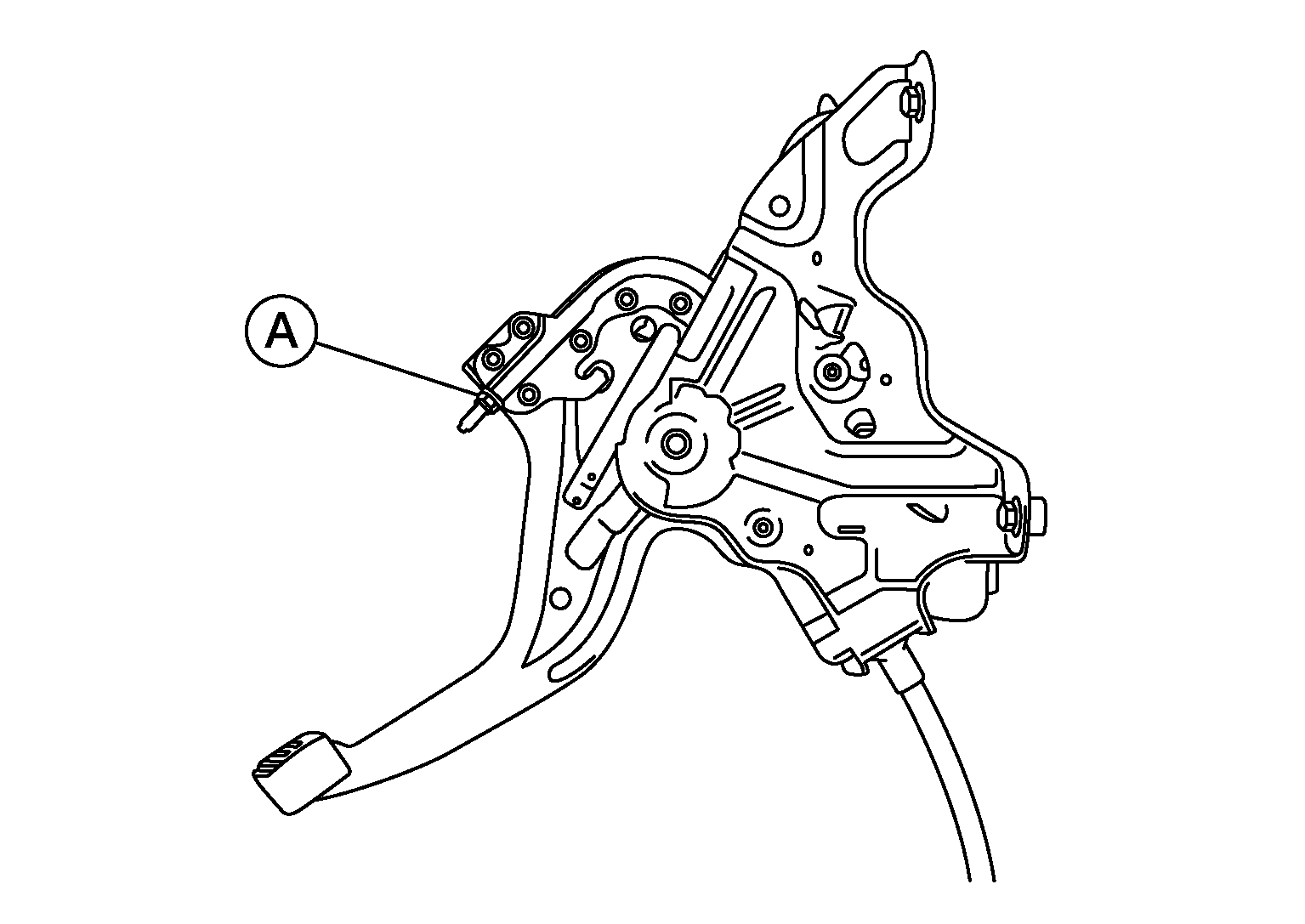

  5. Remove adjusting nut (A).
    GNSAWFIA1199Z-199Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse adjusting nut.
  6. Remove parking brake control nuts and remove parking brake control.
  7. Separate parking brake front cable from parking brake control.
