Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not spill or splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on painted areas, wash it away with water immediately.

Installation is in the reverse order of removal.

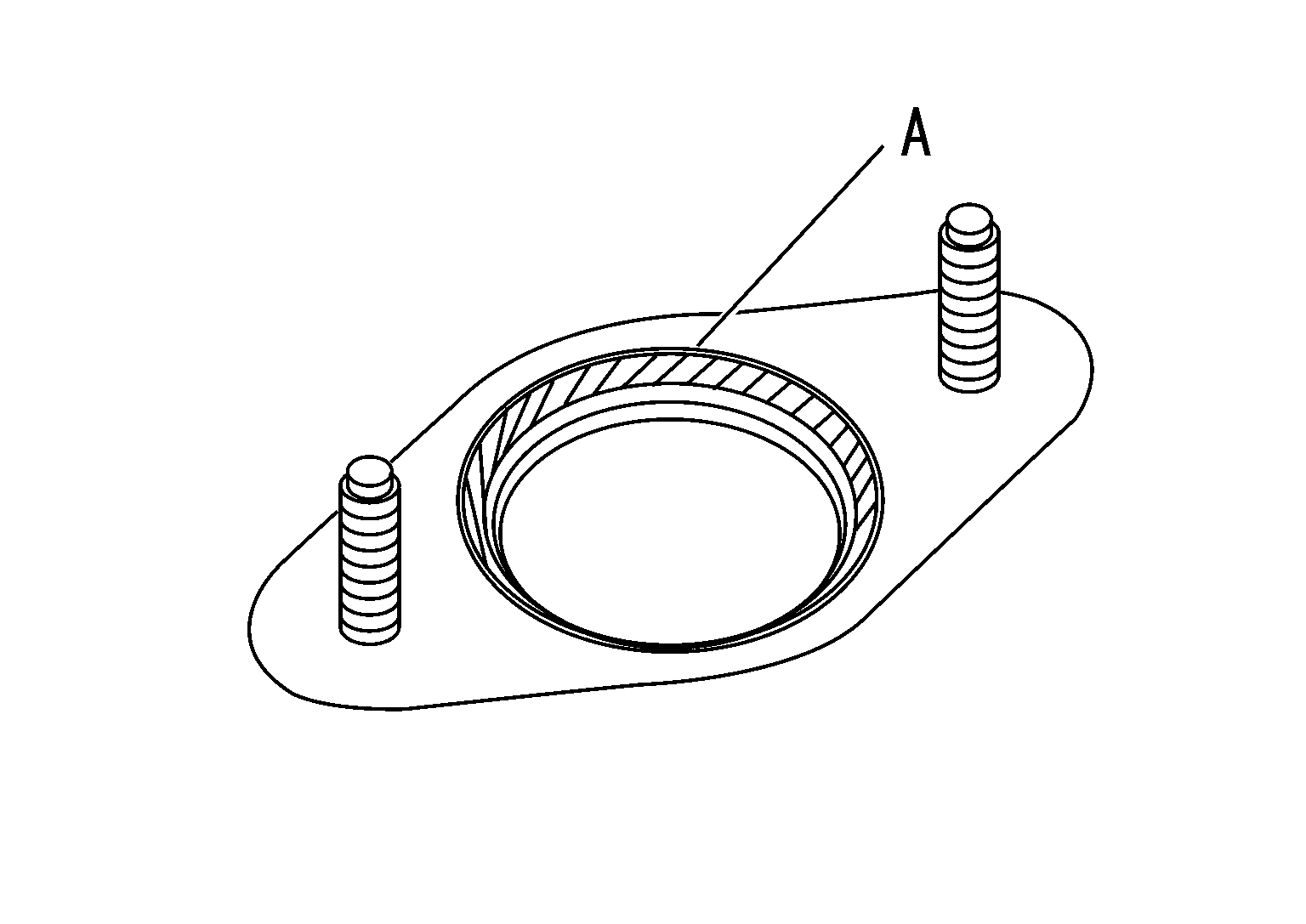

Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease to brake booster at position (A) as shown, below. Be sure the O-ring is in the proper position before installing the master cylinder to the brake booster.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse O-ring.
Tighten brake tube flare nut to the specified torque using a flare nut crowfoot and torque wrench. Refer to Exploded View .
CAUTION: Do not scratch the flare nut or the brake pipe.
After installation, perform air bleeding for brakes. Refer to Bleeding Brake System .
