Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

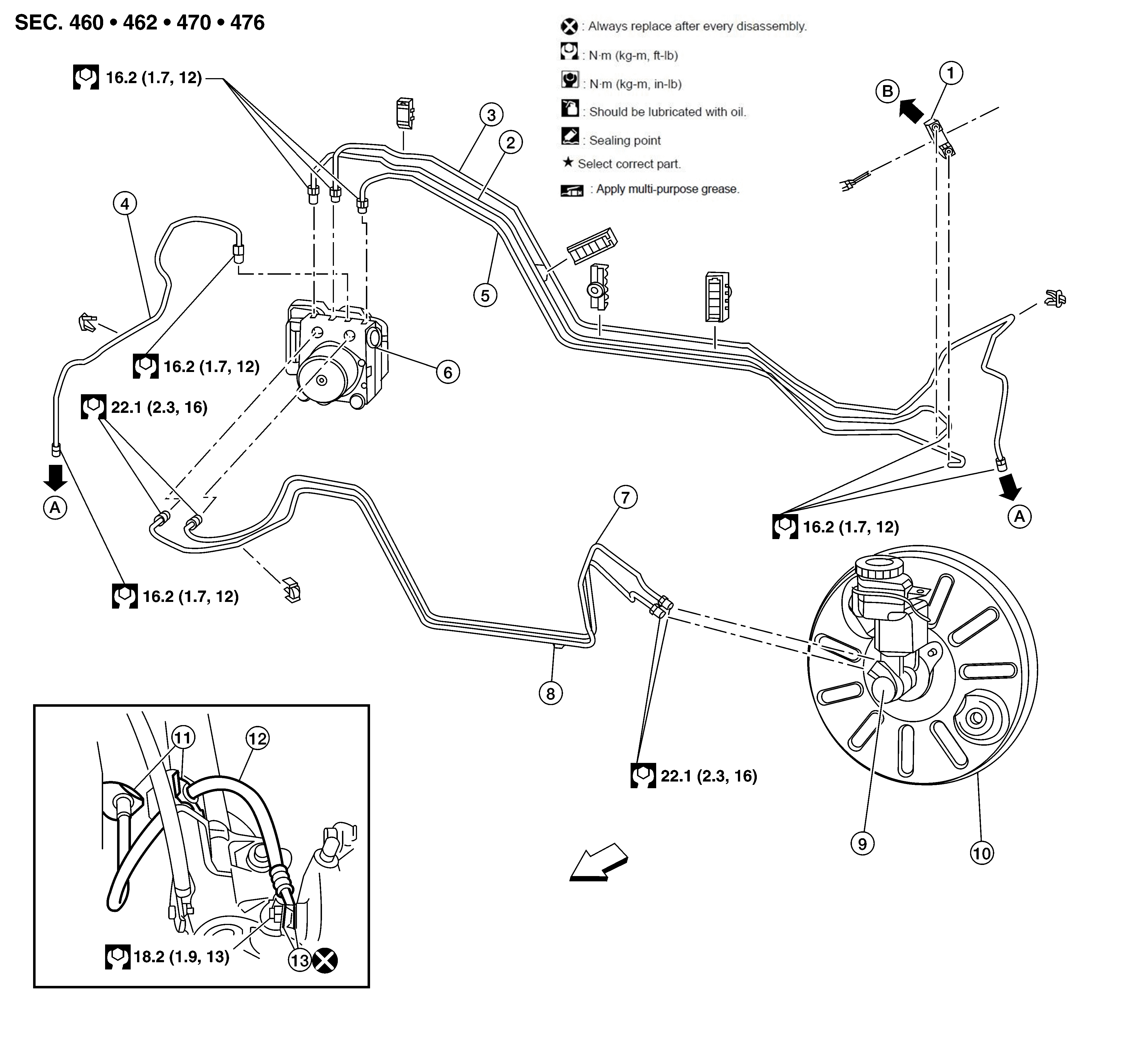

Fig 1: Front Brake Piping W/O ICC With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Brake pipe connector	2.	ABS actuator to connector brake pipe tube (RH)	3.	Brake tube (LH)
4.	Brake tube (RH)	5.	ABS actuator to connector brake pipe tube (LH)	6.	ABS actuator and electric unit (control unit)
7.	Master cylinder primary to ABS actuator brake tube	8.	Master cylinder secondary to ABS actuator brake tube	9.	Master cylinder
10.	Brake booster	11.	Lock plate	12.	Front brake hose
13.	Copper sealing washers	A.	To front brake hose	B.	To rear brake pipe
	Front

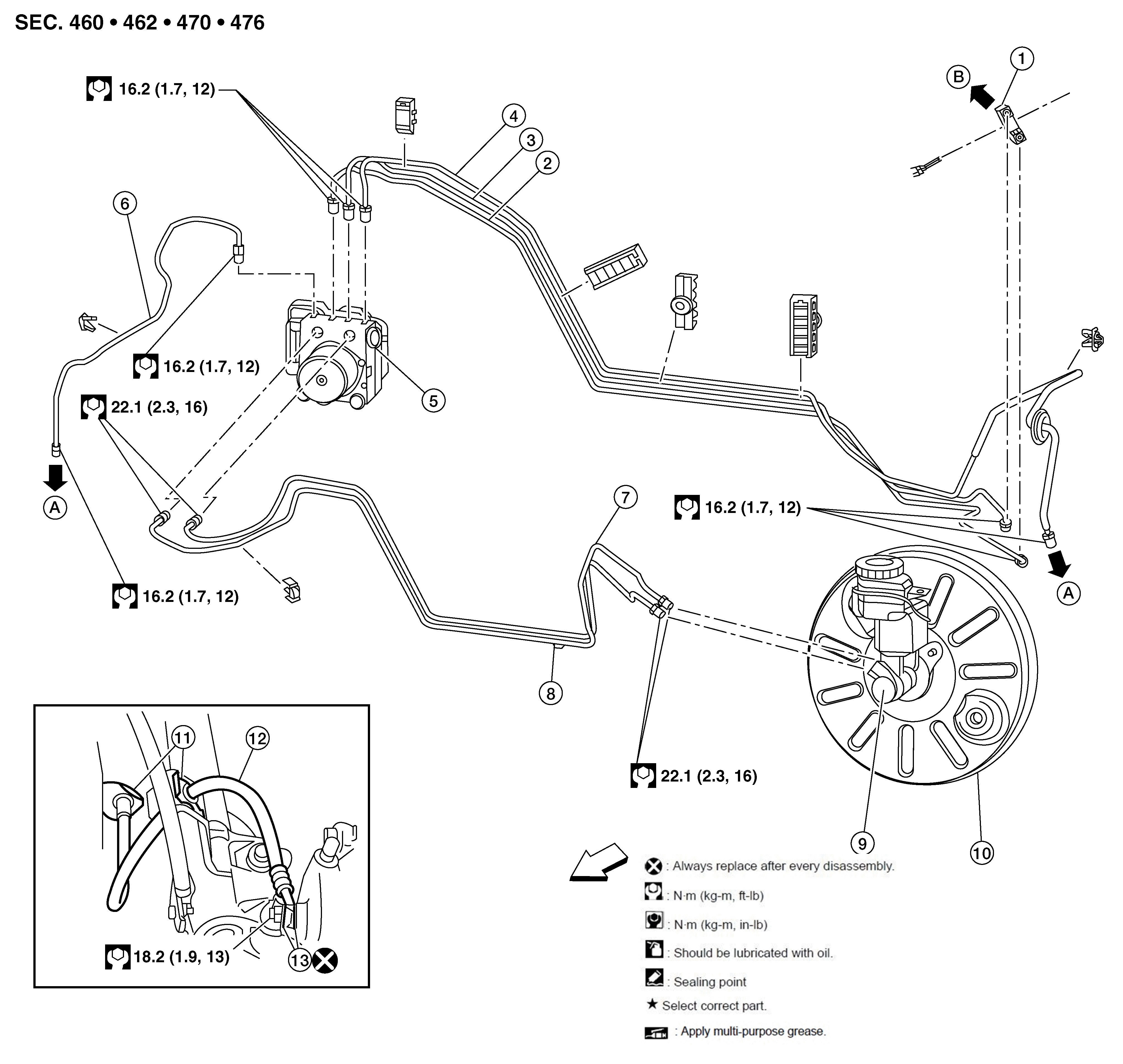

Fig 2: Front Brake Piping W/ICC With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Brake pipe connector	2.	ABS actuator to connector brake tube (LH)	3.	ABS actuator to connector brake tube (RH)
4.	Brake tube (LH)	5.	ABS actuator and electric unit (control unit)	6.	Brake tube (RH)
7.	Master cylinder secondary to ABS actuator brake tube	8.	Master cylinder primary to ABS actuator brake tube	9.	Master cylinder
10.	Brake booster	11.	Lock plate	12.	Front brake hose
13.	Copper sealing washers	A.	To front brake hose	B.	To rear brake pipe
	Front
