Removal and Installation (RH): Installation

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install support bearing bracket.
    • Tighten support bearing bracket bolts in numerical order as shown, below.
    • Refer to following for installation positions of bolts.

    M10 bolt

    No. 1 - 4:

    48.0 N.m (4.9 kg-m, 35 ft-lb)

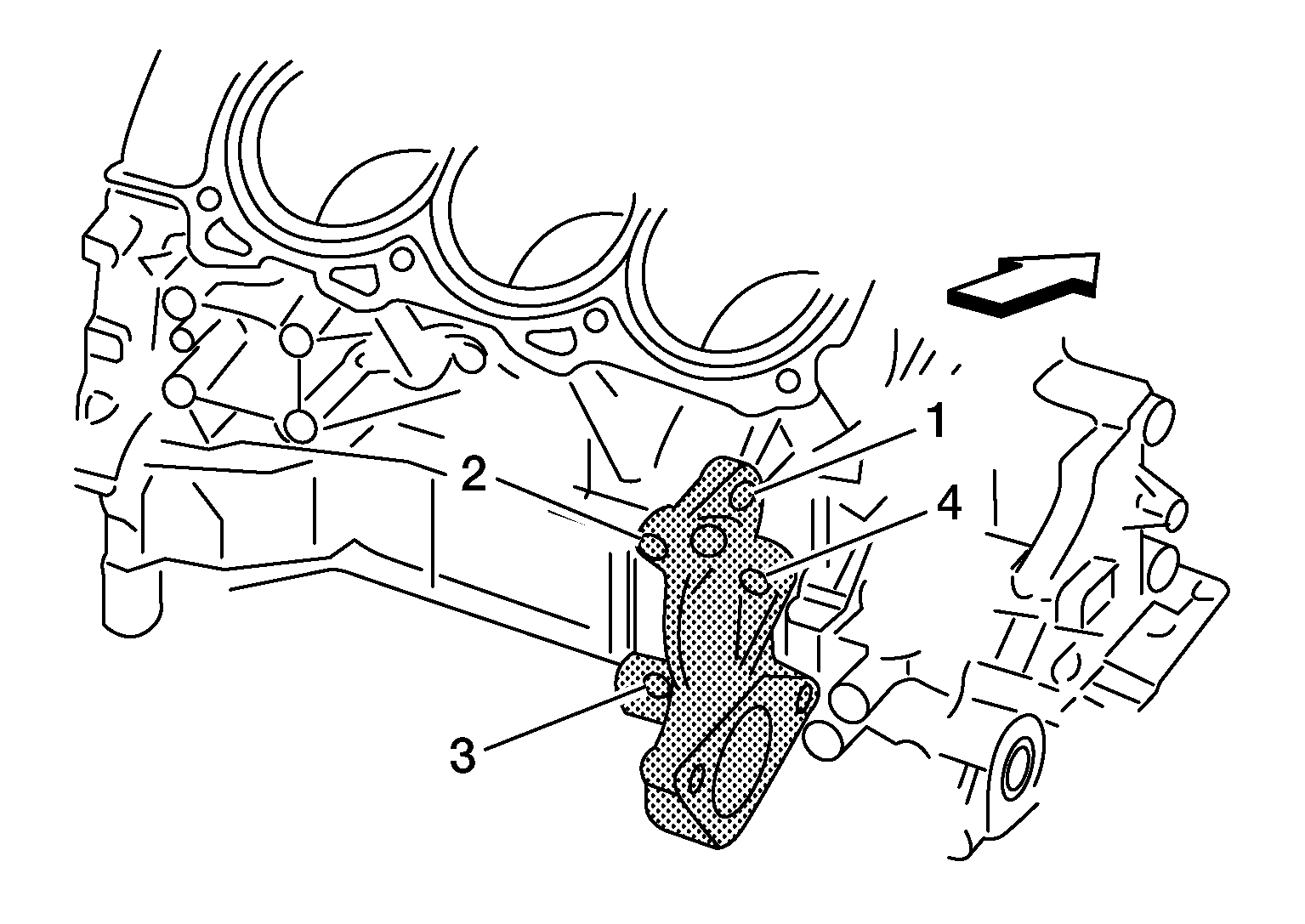

    Fig 1: Support Bearing Bracket Bolt Tightening Sequence
    GNSDB120528Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

  2. Install a new differential side oil seal. Refer to Removal and Installation .
    CAUTION: Do not reuse differential side oil seal.
  3. Install new circular clip on drive shaft in circular clip groove on transaxle side. Refer to Exploded View (RH) .
    CAUTION:
    • Do not reuse circular clip.
    • Make sure new circular clip on drive shaft is securely fastened.
  4. In order to prevent damage to differential side oil seal, place Tool (A) onto oil seal before inserting drive shaft as shown, below. Slide drive shaft into slide joint and tap with a hammer to install securely.
    G04198675Courtesy of NISSAN NORTH AMERICA, INC.

    Tool Number

    : KV38107900 (-)

    WARNING: Ensure that the circular clip is properly engaged, otherwise the joint sub-assembly could pull away from transaxle during vehicle operation resulting in loss of drive force and possible driveshaft damage, which may cause a crash and serious injury or damage the driveshaft.

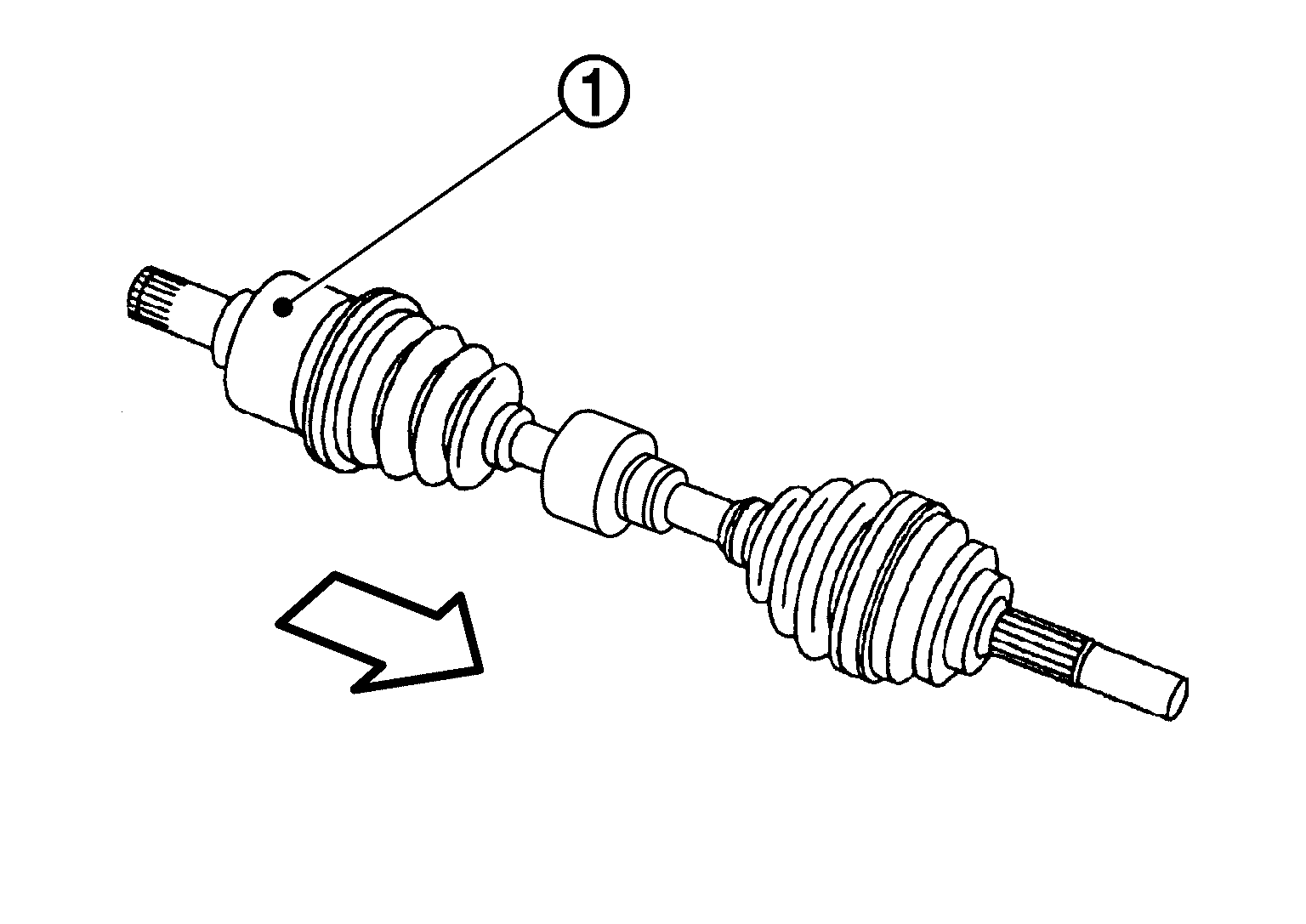

    • To ensure the circular clip is properly engaged, grasp the housing (1) and pull back and forth in axial direction while listening for clicking sounds.
      GNSILL0104578-578Courtesy of NISSAN NORTH AMERICA, INC.
    • Pull the joint sub-assembly in the axial direction away from transaxle assembly (arrow). Confirm that the joint sub assembly cannot be pulled out.
  5. Install bearing retainer.
    • Tighten bearing retainer bolts in numerical order shown, below.

    M8 bolt

    No. 1 and No. 2:

    25.0 N.m (2.6 kg-m, 18 ft-lb)

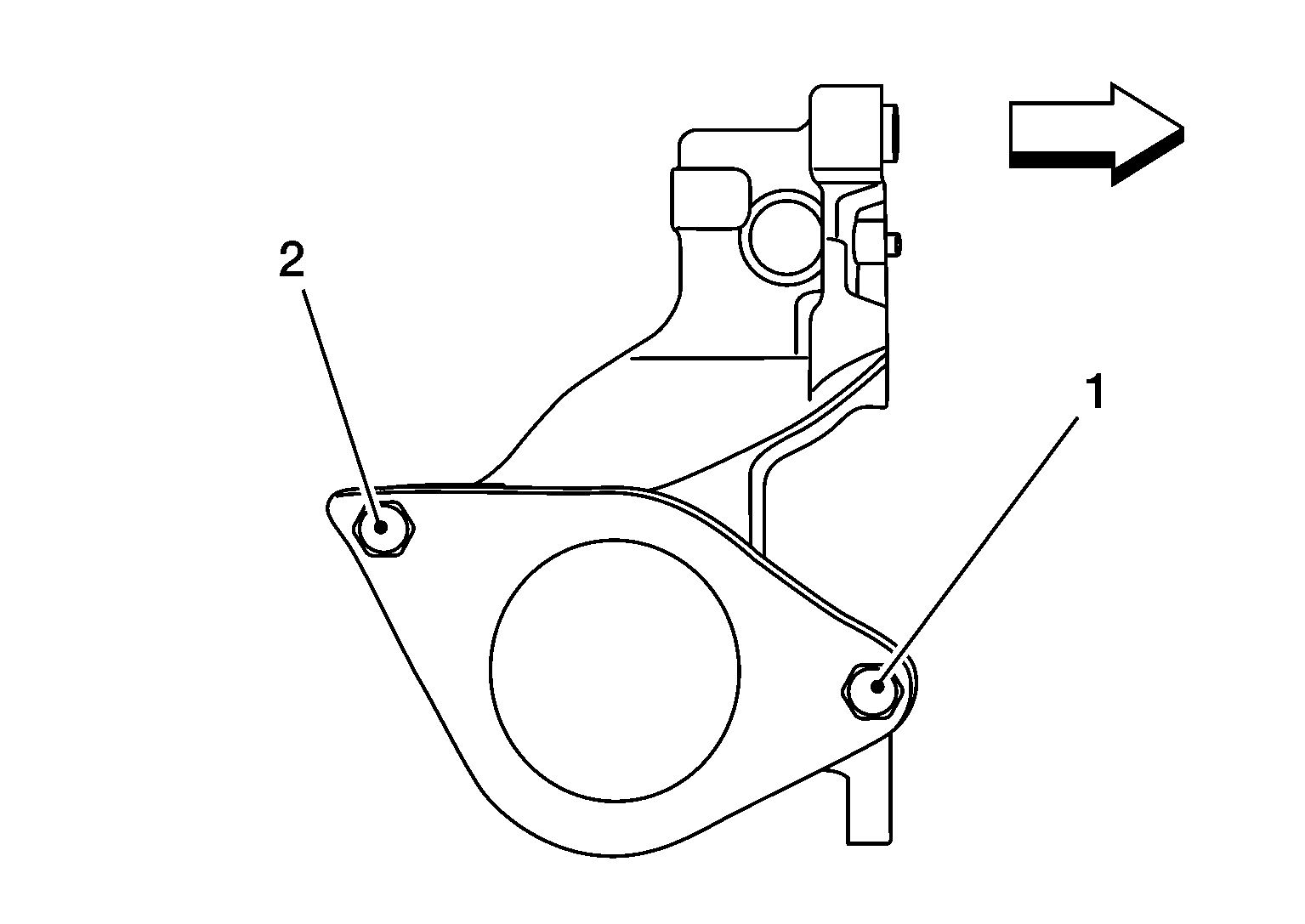

    Fig 2: Bearing Retainer Bolt Tightening Sequence
    GNSAWDIA1187Z-187Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

  6. Clean mating surfaces of wheel hub lock nut and wheel hub and bearing.
    CAUTION: Do not apply lubricating oil to these surfaces.
  7. Tighten wheel hub lock nut to specification. Refer to Exploded View (RH) .
    CAUTION:
    • Since drive shaft is assembled by press-fitting, use a torque wrench to tighten wheel hub lock nut. Do not use a power tool.
    • Too much torque causes axle noise. Too little torque causes wheel bearing looseness.
  8. When installing cotter pin (1) and nut retainer (2), securely bend cotter pin to prevent rattles.
    GNSJPDIF0295Z-295Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse cotter pin.

    Installation of remaining components is in reverse order of removal.
