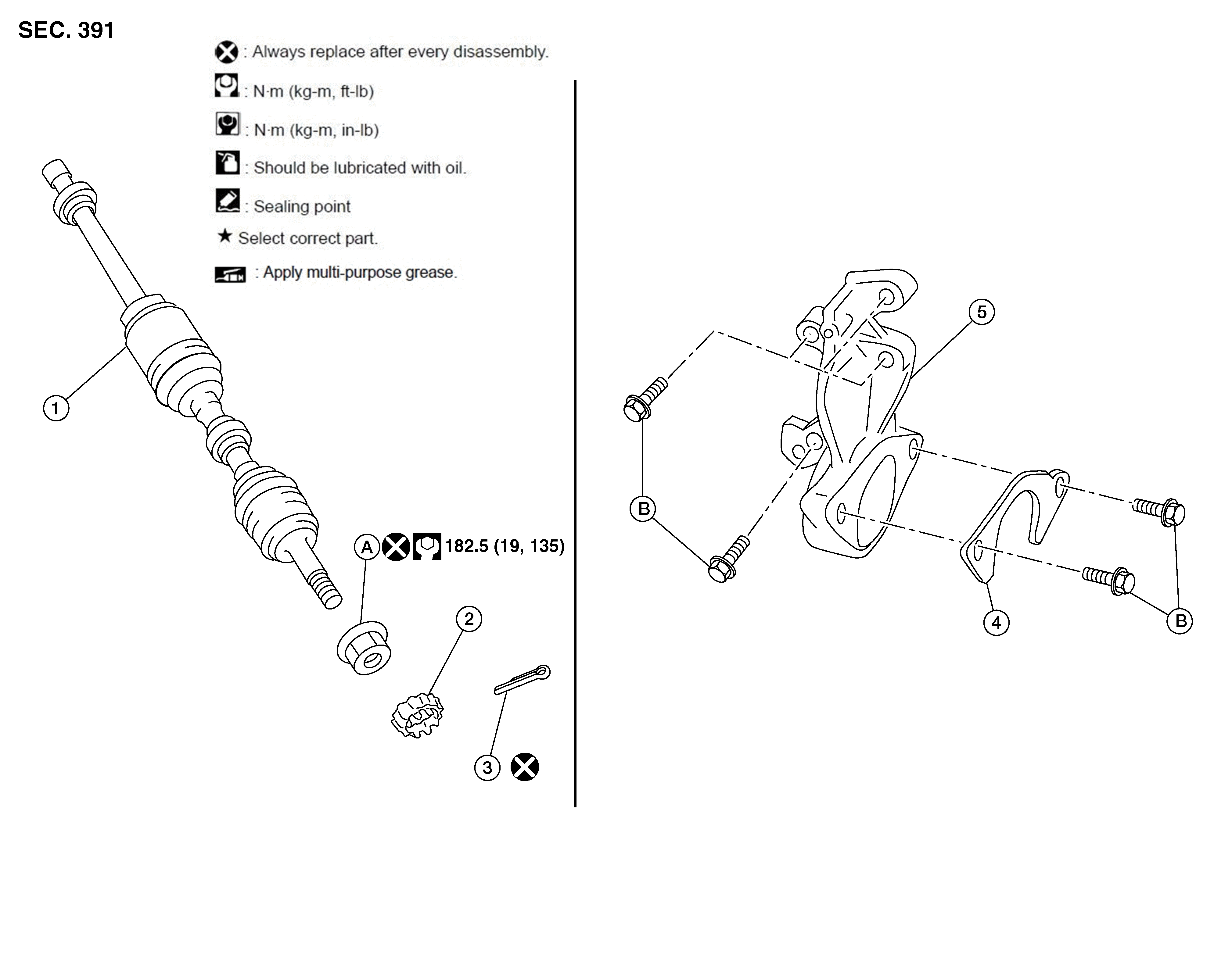

Exploded View (RH)
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Front drive shaft |
2. |
Nut retainer |
3. |
Cotter pin |
|
4. |
Bearing retainer |
5. |
Support bearing bracket |
A. |
Wheel hub lock nut |
|
B. |
Refer to INSTALLATION . |
