Vacuum Sensor

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

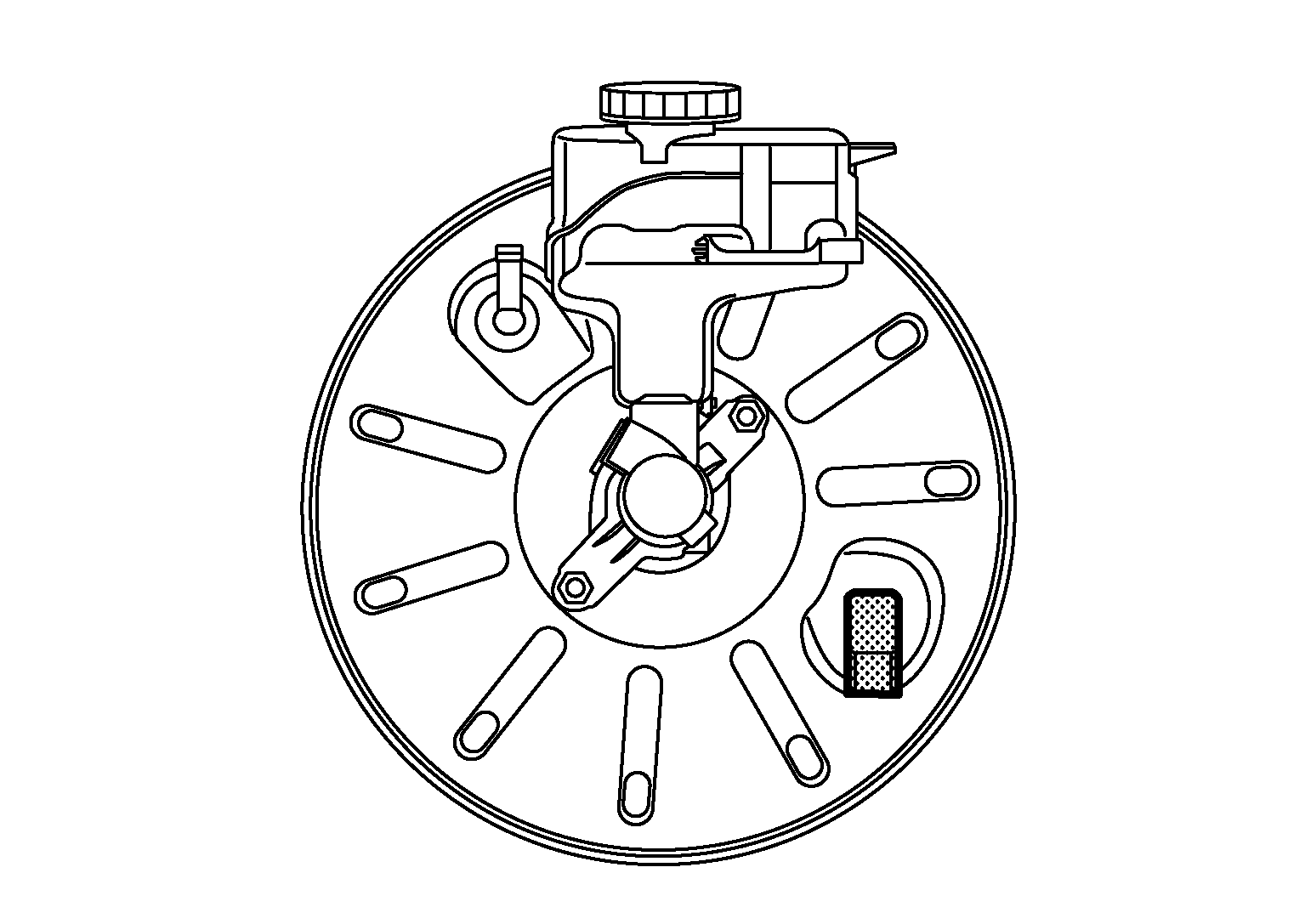

Detects the vacuum in brake booster and transmits converted electric signal to ABS actuator and electric unit (control unit).

GNSALFIA0592Z-592Courtesy of NISSAN NORTH AMERICA, INC.
