Removal and Installation - CUMMINS 5.0L: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Before servicing, turn the ignition switch off, disconnect both battery terminals and wait at least three minutes.
- Disconnect battery or batteries. Refer to Battery Disconnect .
- Remove battery terminal with fusible link. Refer to Removal and Installation .
- Remove wheel and tire using power tools. Refer to Removal and Installation .
- Remove fender protector (LH). Refer to Removal and Installation - Front Fender Protector .
- Release clips and remove radiator core support cover. Refer to Exploded View - XD Models .
- Discharge refrigerant. Refer to Recycle Refrigerant .

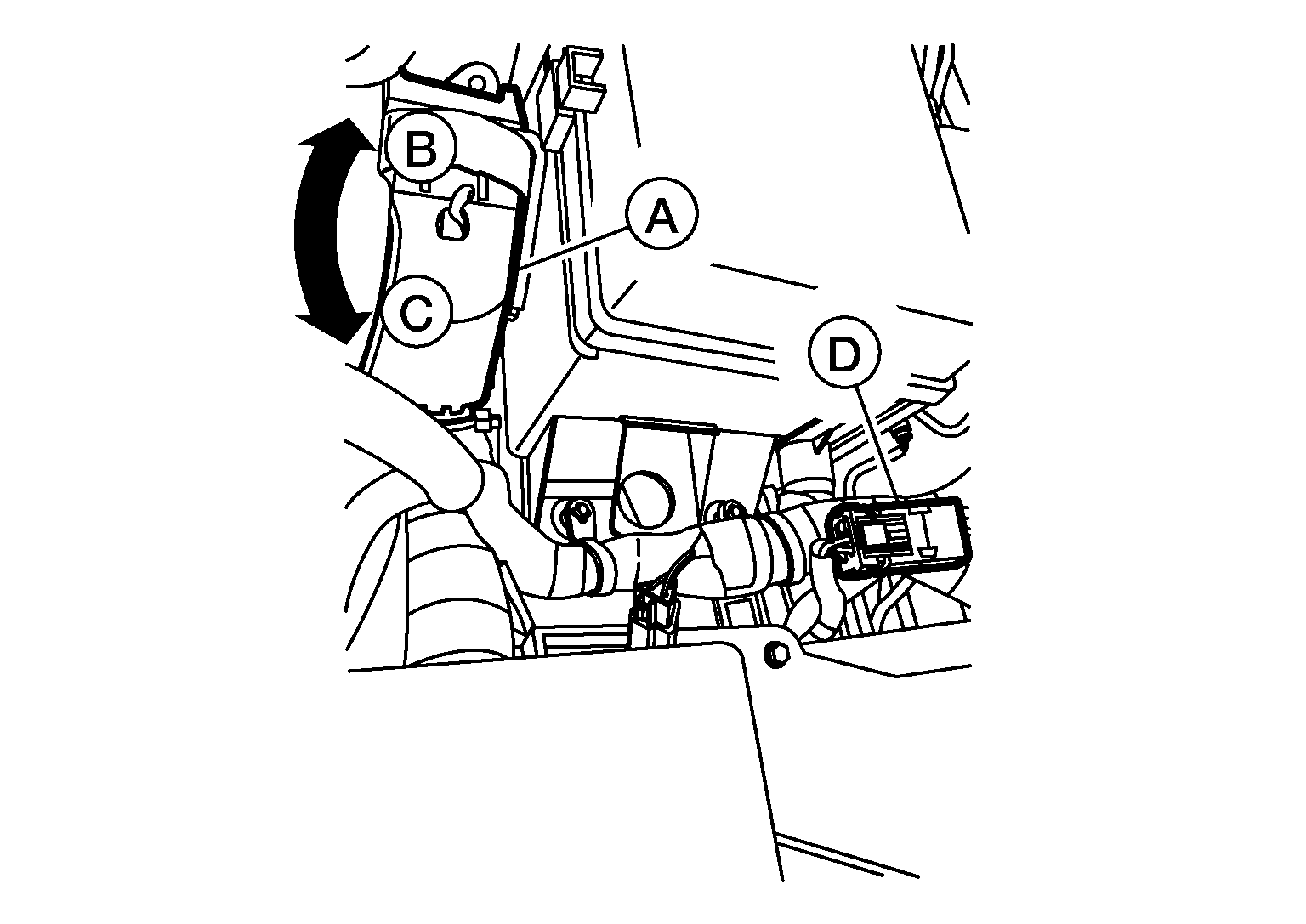

- Disconnect harness connector (A) from ECM and inline harness connector (D).CAUTION: Always confirm the lever is fully released (loosened) before attempting to disconnect or connect the connector to avoid damage to the connector housing or terminals.
(B)
: Fasten
(C)
: Loosen

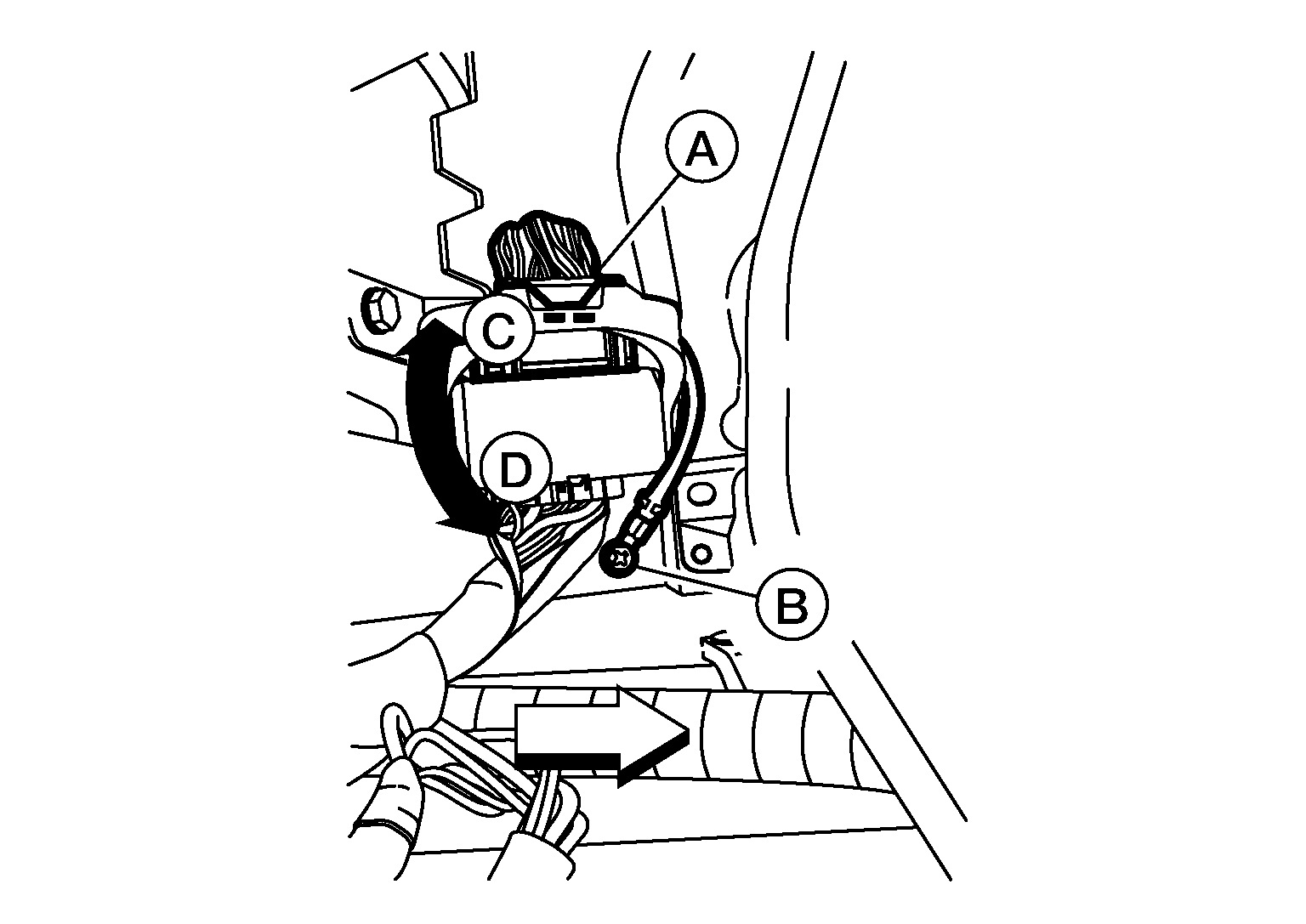

- Disconnect the inline harness connector (A), then remove ground bolt (B) and position harness aside.CAUTION: Always confirm the lever is fully released (loosened) before attempting to disconnect or connect the connector to avoid damage to the connector housing or terminals.
: Front
(C)
: Fasten
(D)
: Loosen
- Remove air outlet hose. Refer to Exploded View .

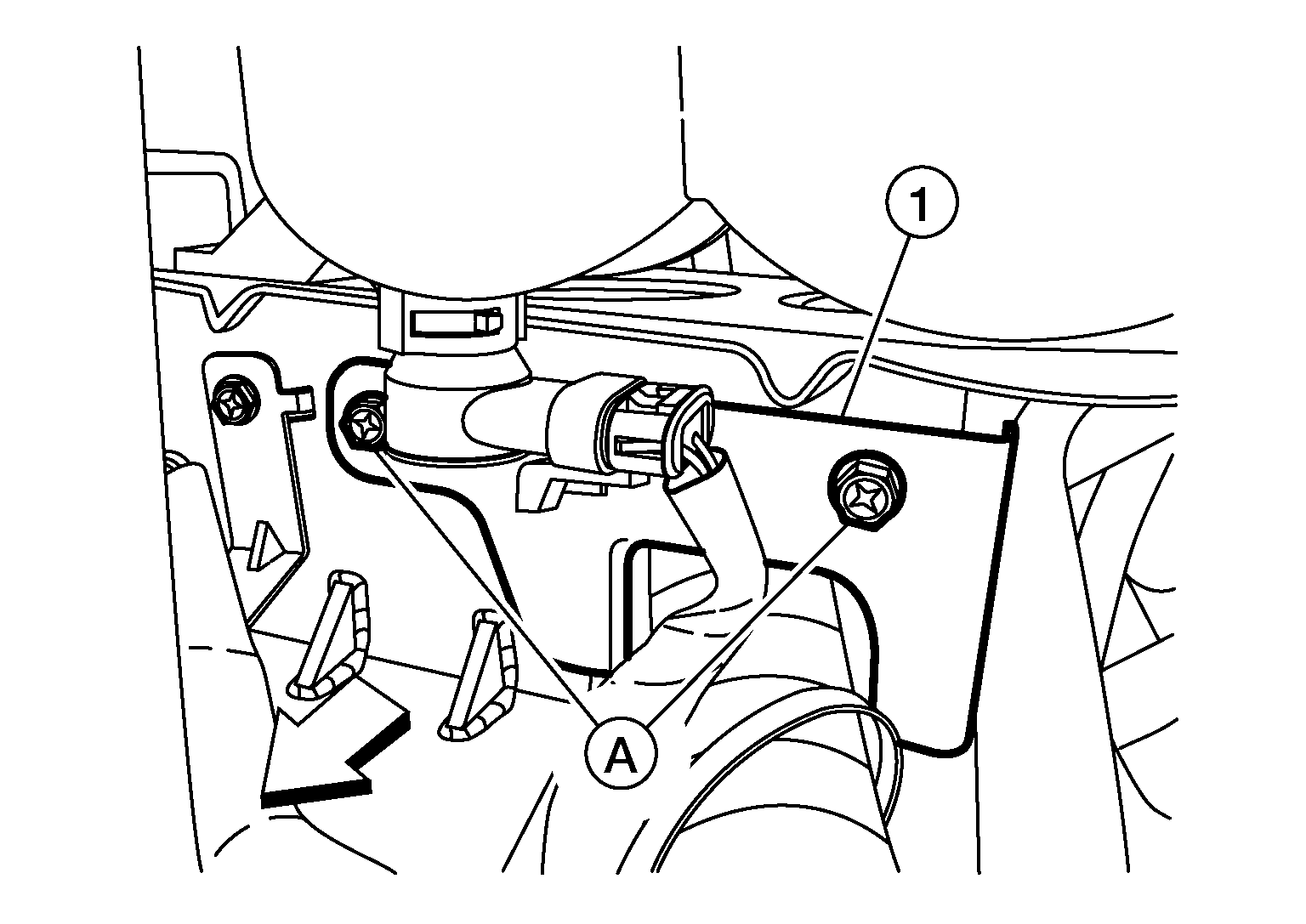

- Remove bolts (A) on heater hose bracket (1) and position aside.
: Front
- Remove bolt and disconnect high-pressure pipe from expansion valve.CAUTION: Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.
- Remove bolt and disconnect high-pressure pipe from condenser.CAUTION: Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.
