Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to Battery Disconnect .
  2. Remove center console assembly. Refer Removal and Installation .
  3. Remove glove box assembly. Refer to Removal and Installation .
  4. Remove steering wheel. Refer to Removal and Installation .
  5. Remove instrument panel side finishers (LH/RH) (1) using a suitable tool.
    GNSALIIA1087Z-087Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
  6. Remove cluster lid A. Refer to Removal and Installation .
  7. Remove AV control unit. Refer to Removal and Installation .
  8. Remove instrument lower panel LH. Refer to Removal and Installation .
  9. Remove steering column covers. Refer to Removal and Installation - Electric steering column without paddle shifter  (Electric steering column without paddle shifter), Removal and Installation - Mechanical steering column with paddle shifter  (Mechanical steering column with paddle shifter), or Removal and Installation - Mechanical steering column without paddle shifter  (Mechanical steering column without paddle shifter).
  10. Remove combination meter. Refer to Removal and Installation .
  11. Remove front pillar finishers (LH/RH). Refer to Removal and Installation .
  12. Remove tweeter speaker grille (RH). Refer to Exploded View .
  13. Remove front passenger air bag module bolts.
    14. CAUTION: Do not reuse the front passenger air bag module bolts.
  15. Remove instrument panel screws (A).

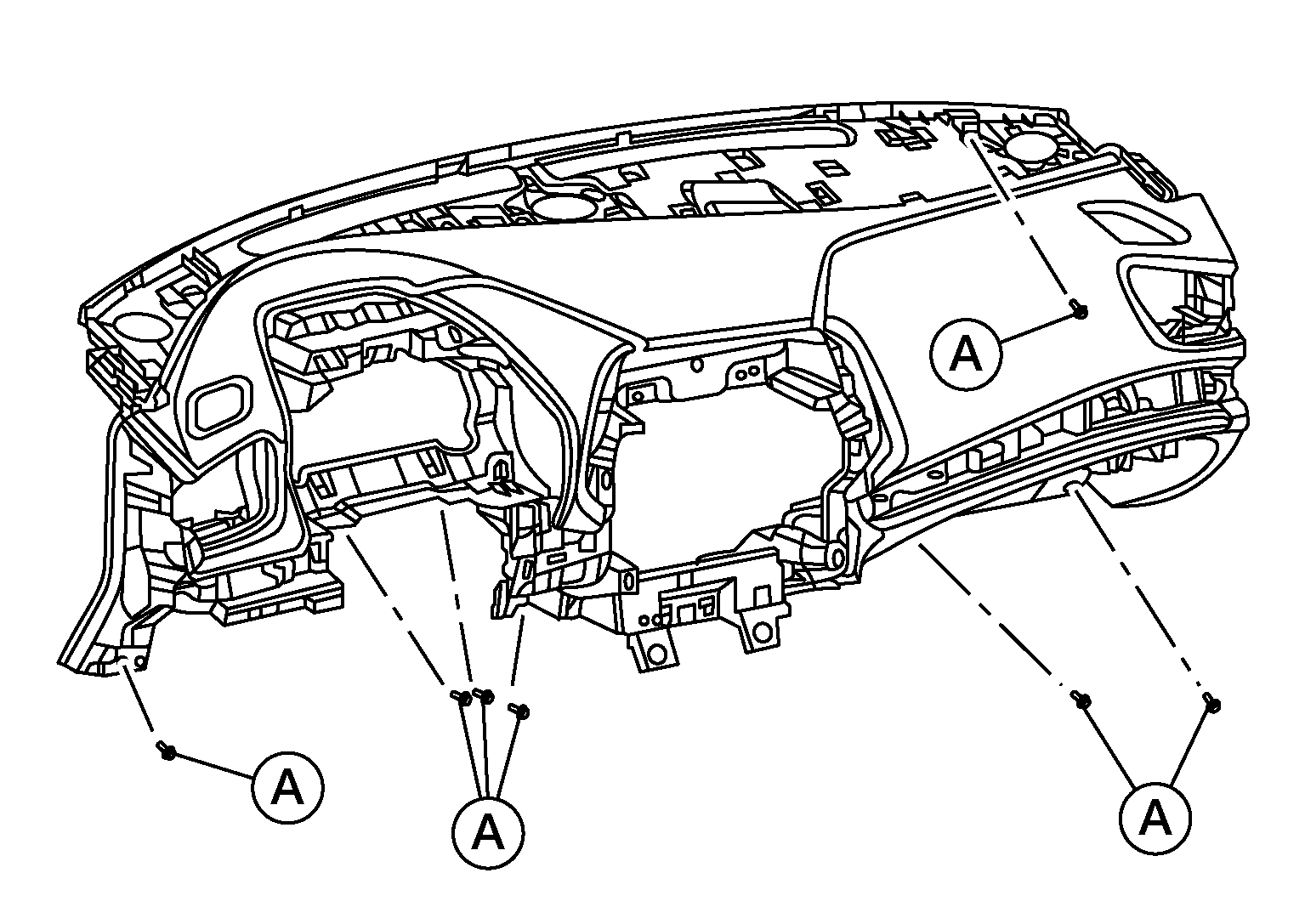

    GNSALJIA1745Z-745Courtesy of NISSAN NORTH AMERICA, INC.
  16. Disconnect harness connectors from instrument panel assembly and front passenger air bag module.
  17. Remove instrument panel assembly.
