Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove console lower cover (LH). Refer to Exploded View .
  2. Remove center console finisher (LH). Refer to Exploded View .
  3. Remove AV control unit. Refer to Removal and Installation .
  4. Remove instrument lower panel LH. Refer to Removal and Installation .

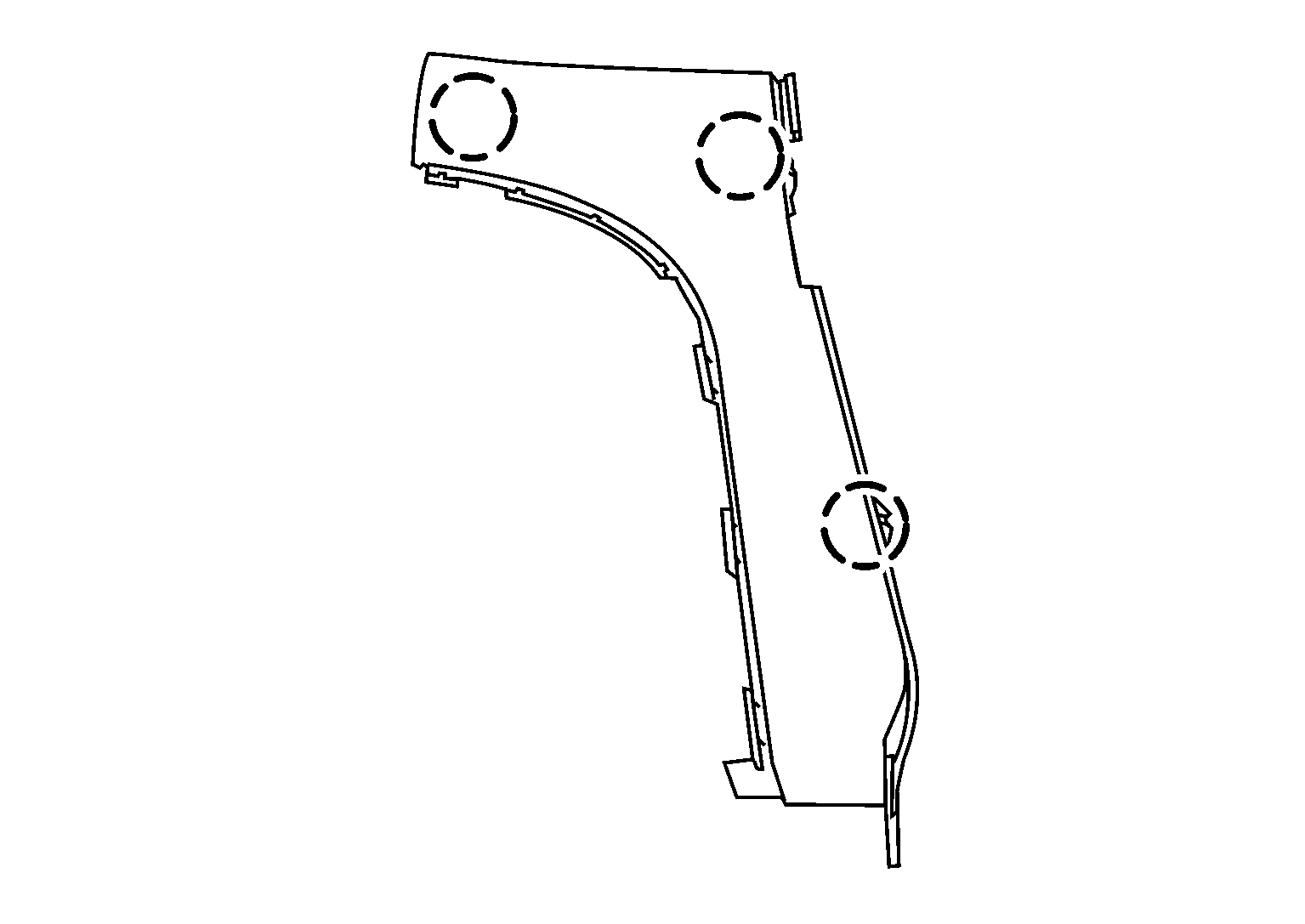

  5. Release instrument finisher D pawls using a suitable tool and remove.
    GNSAWJIA1867Z-867Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
