Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove meter cover. Refer to Exploded View .
  2. Remove instrument finisher A. Refer to Removal and Installation .
  3. Remove instrument finisher C. Refer to Removal and Installation .

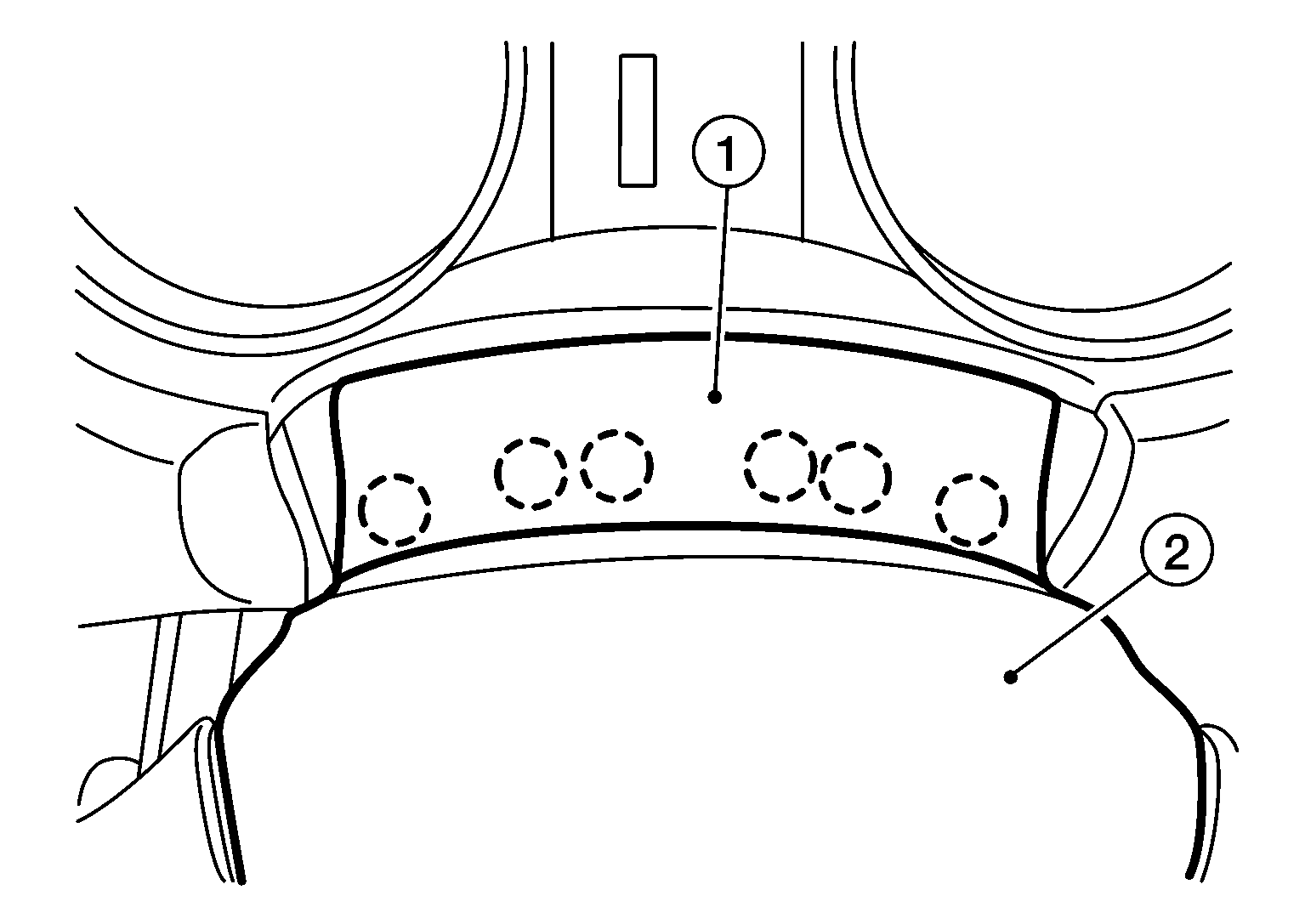

  4. Release gap hider (1) pawls from the steering column upper cover (2).
    GNSAWJIA1584Z-584Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl

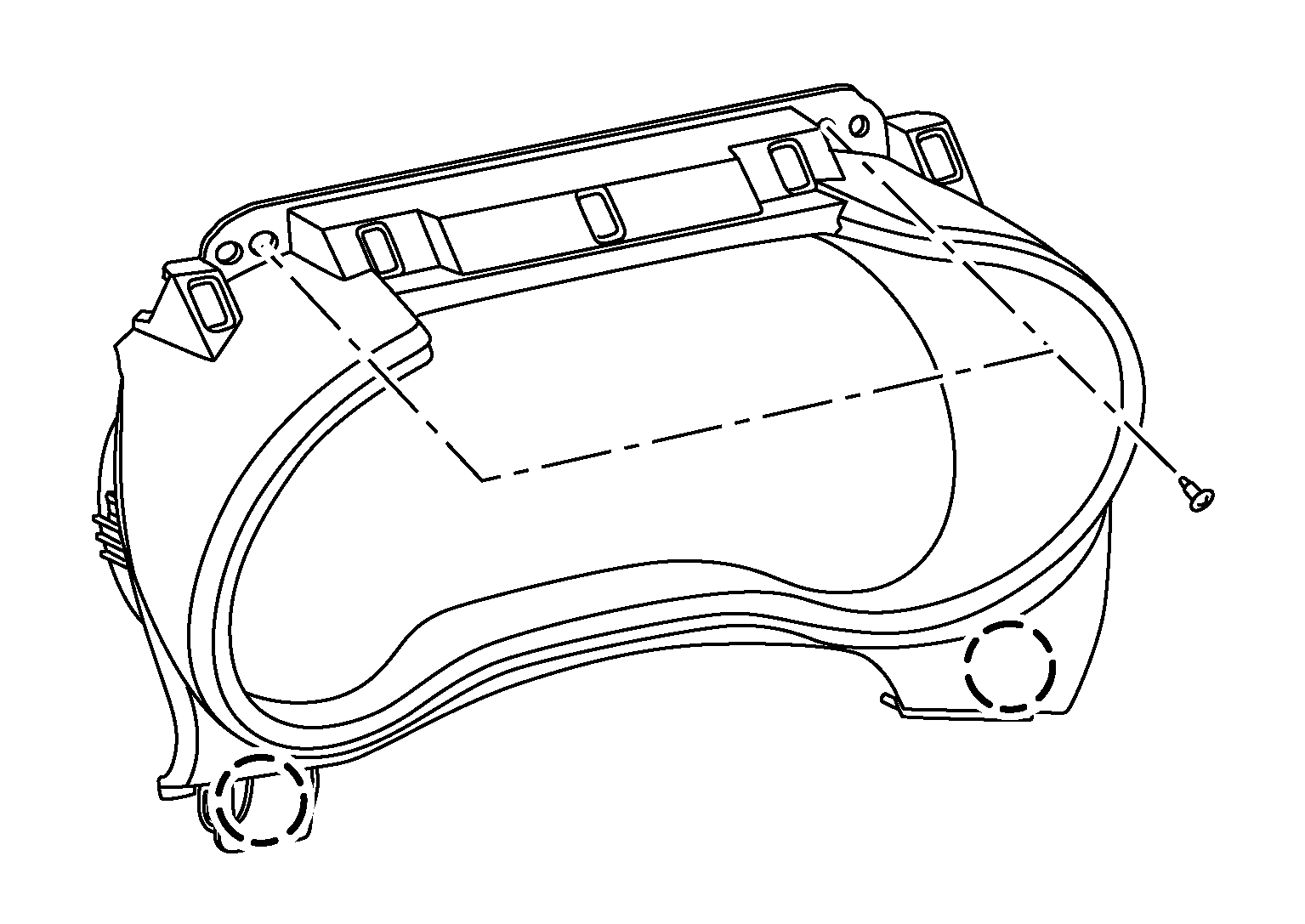

  5. Release cluster lid A pawls using a suitable tool and remove.
    GNSALJIA1848Z-848Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
