Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Coolant is toxic and can be fatal if swallowed. Keep away from pets and children. If not reused, dispose of in accordance with local environmental regulations.
To avoid the risk of personal injury, do not remove the radiator cap when the engine is hot. Serious burns could occur from high-pressure engine coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter of a turn to release built-up pressure. Carefully remove the radiator cap by turning it all the way.

NOTE: It is not practical to replace the components of the water pump; the water pump is serviced as an assembly.

The water pump is a belt-driven, centrifugal-type pump with the inlet and outlet as integral parts of the front gear cover.

Drain engine coolant. Refer to Changing Engine Coolant .
Remove fan spacer and pulley. Refer to Removal and Installation .
Remove upper radiator cover.
Remove bypass hose. Refer to Exploded View .
Remove radiator hose (upper). Refer to Exploded View .
Remove radiator pipe. Refer to Exploded View .
Remove air inlet and outlet hoses. Refer to Exploded View .

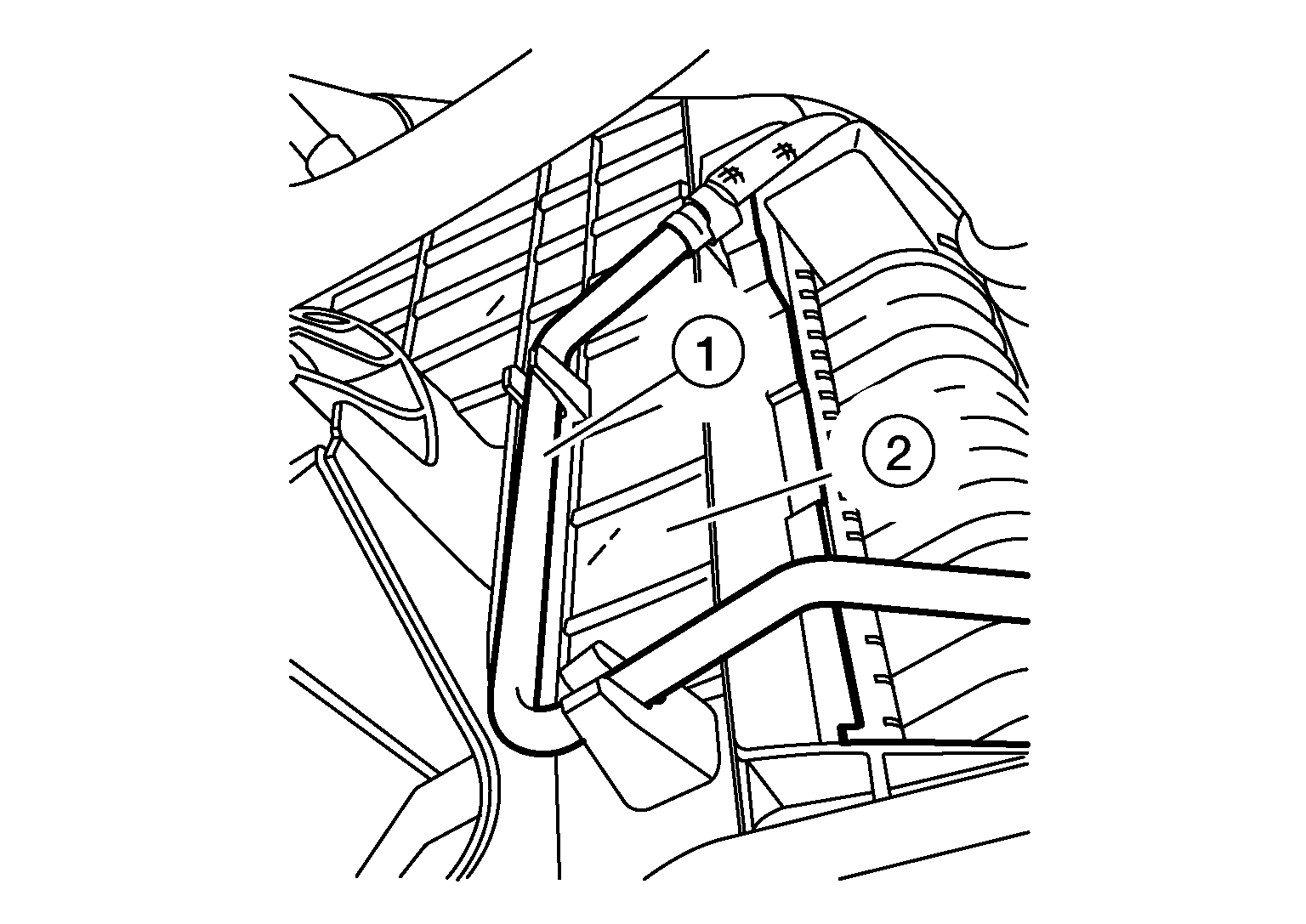

Release hose clamp on radiator and un-clip fluid cooler tube E (1) from radiator shroud (2).

Courtesy of NISSAN NORTH AMERICA, INC.

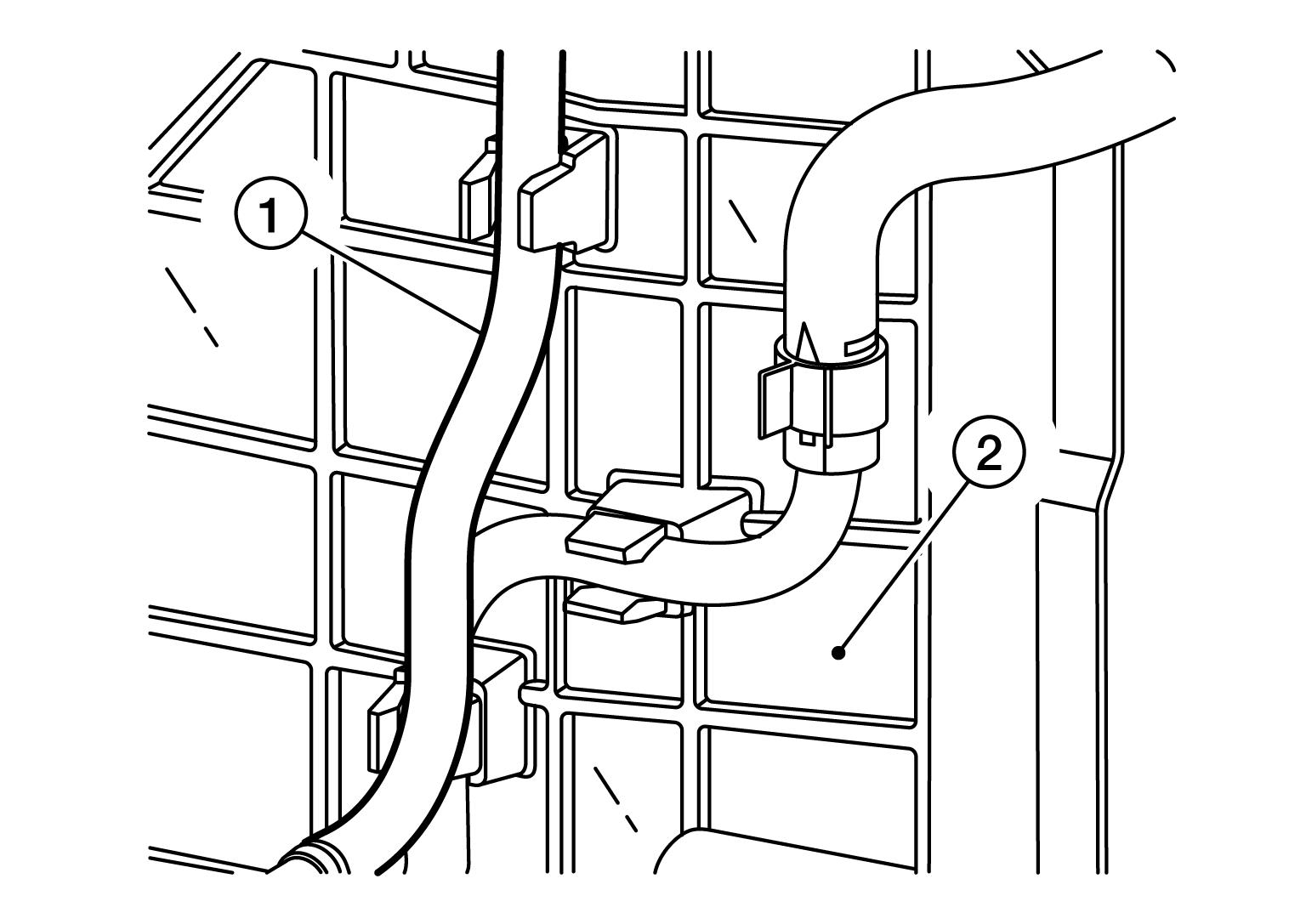

Release hose clamp connecting fluid cooler tube C (1) and fluid cooler hose C, un-clip fluid cooler tube C (1) and remove from radiator shroud (2).

Courtesy of NISSAN NORTH AMERICA, INC.

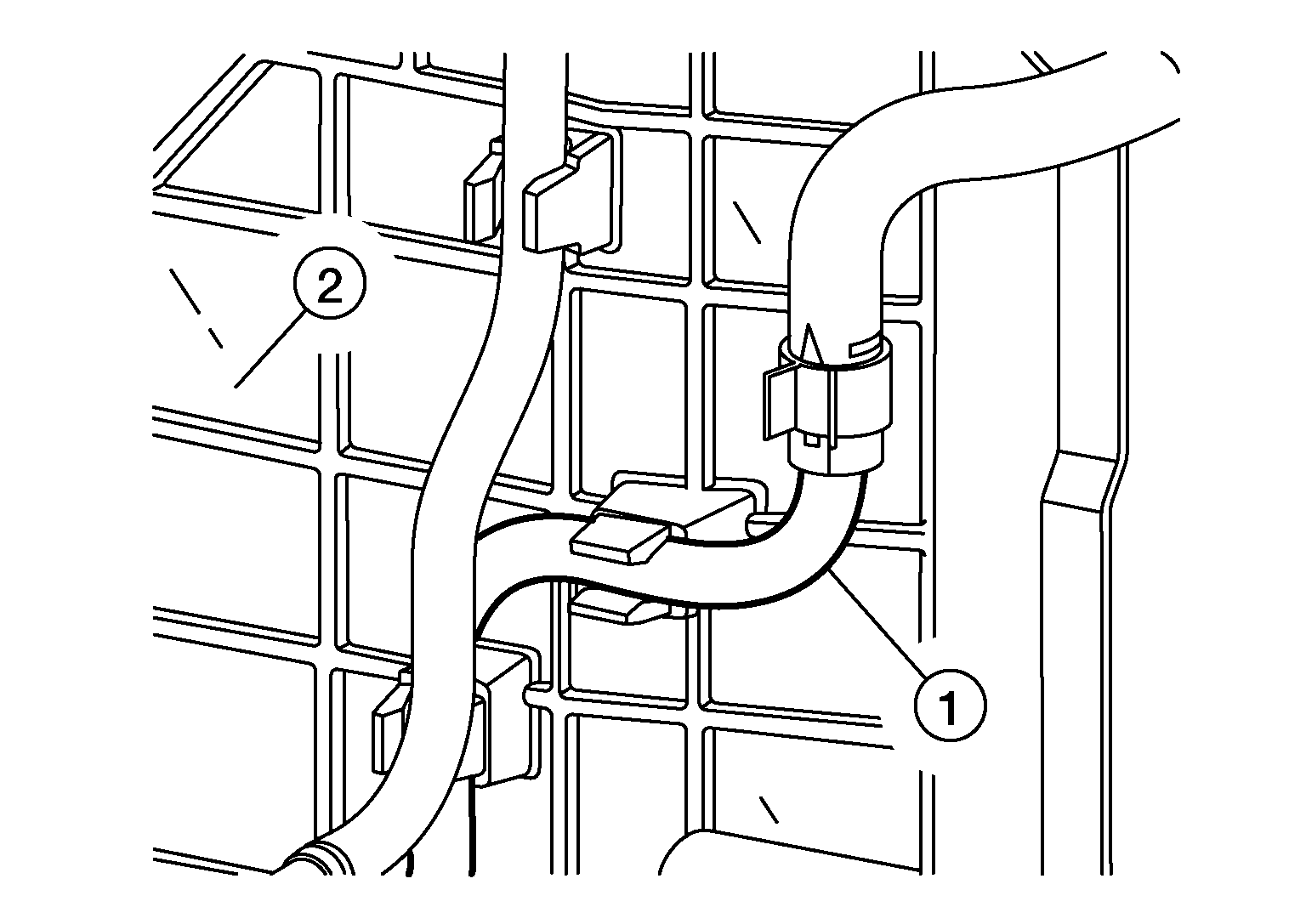

Un-clip fluid cooler tube D (1) from radiator shroud (2) and remove fluid cooler tube D (1).

Courtesy of NISSAN NORTH AMERICA, INC.

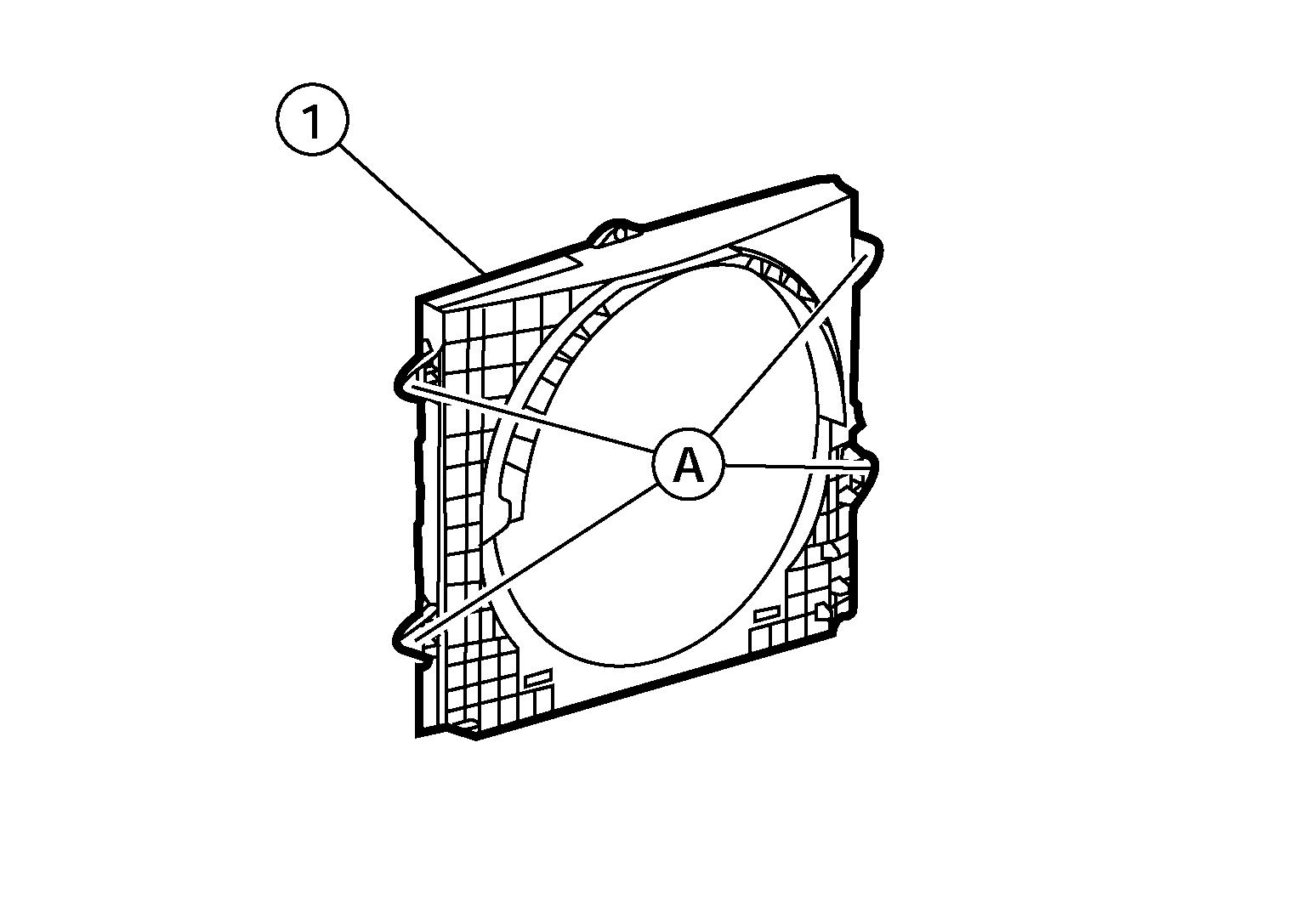

Remove the bolts (A) and remove the radiator shroud (1).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove bolts and remove water pump.
