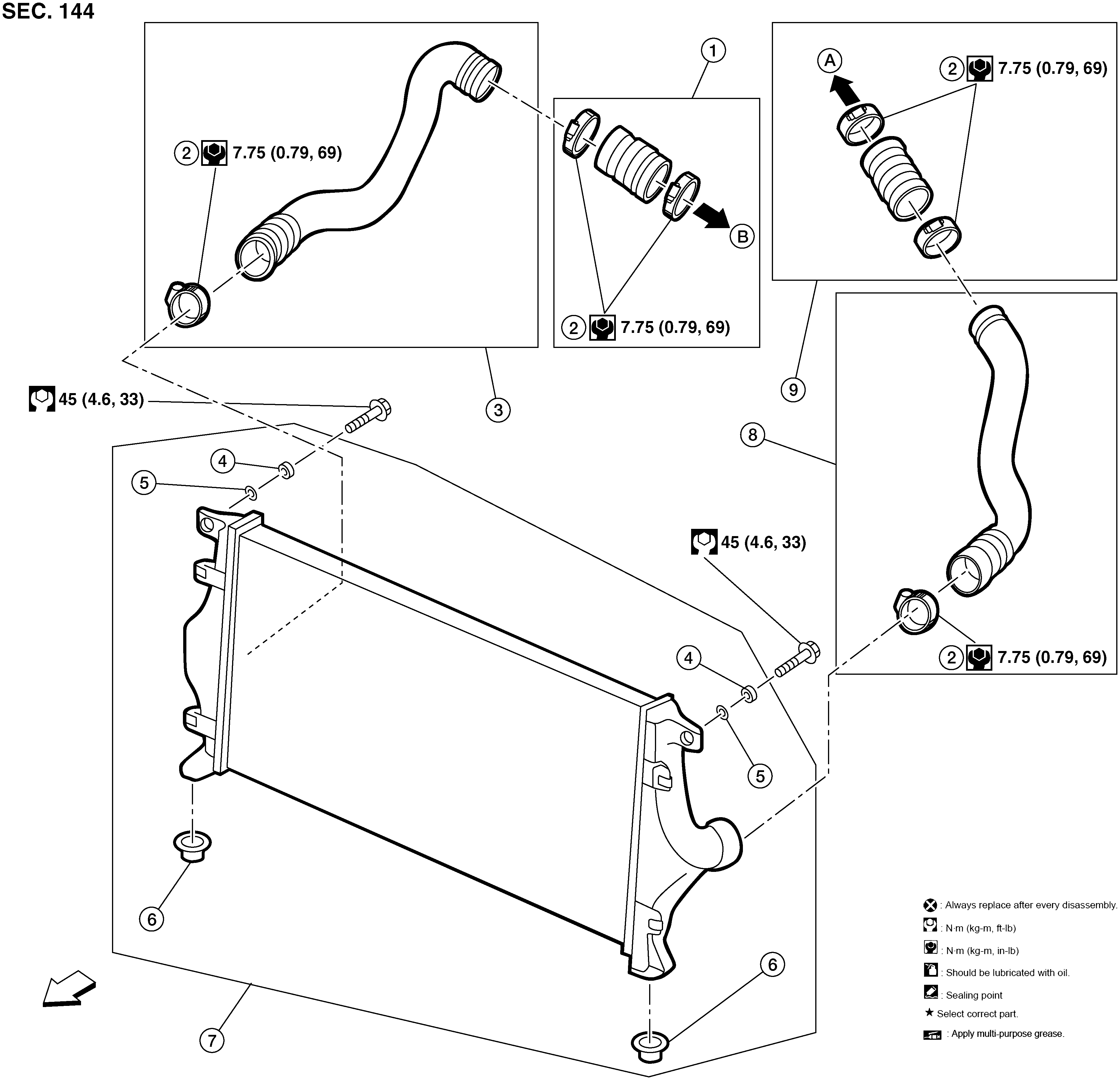

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Air outlet hose
|
2.
|
Clamp
|
3.
|
Air outlet tube
|
|
4.
|
Mounting rubber
|
5.
|
Collar
|
6.
|
Rubber mount
|
|
7.
|
Charge air cooler
|
8.
|
Air inlet tube
|
9.
|
Air inlet hose
|
|
A.
|
To turbocharger compressor outlet connection
|
B.
|
To air intake connection adapter
|
|
Front
|
