Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

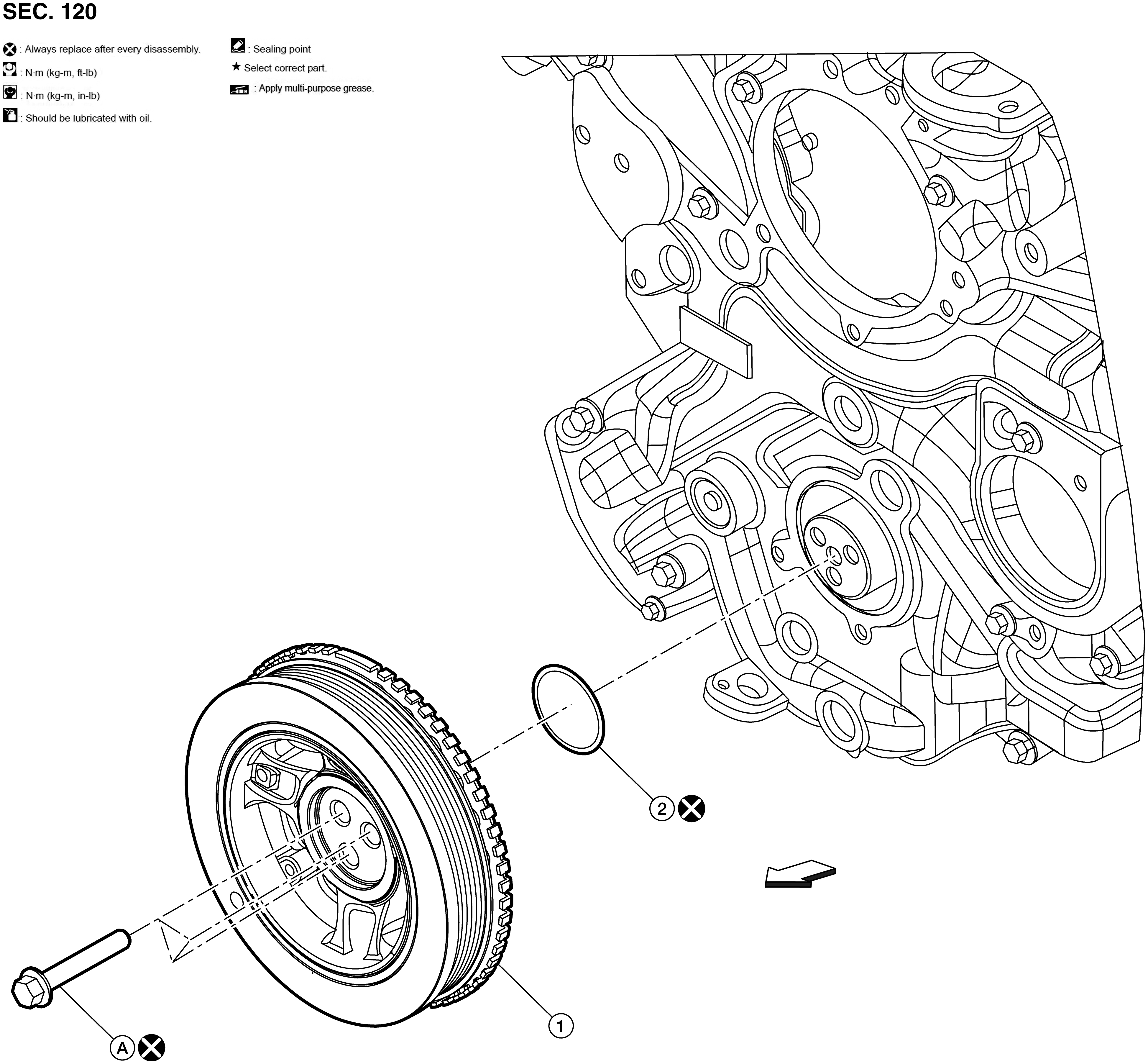

GNSALBIA2514Z-514Courtesy of NISSAN NORTH AMERICA, INC.

1.

Vibration damper

2.

O-ring

A.

Refer to INSTALLATION

SYMBOL

Front
