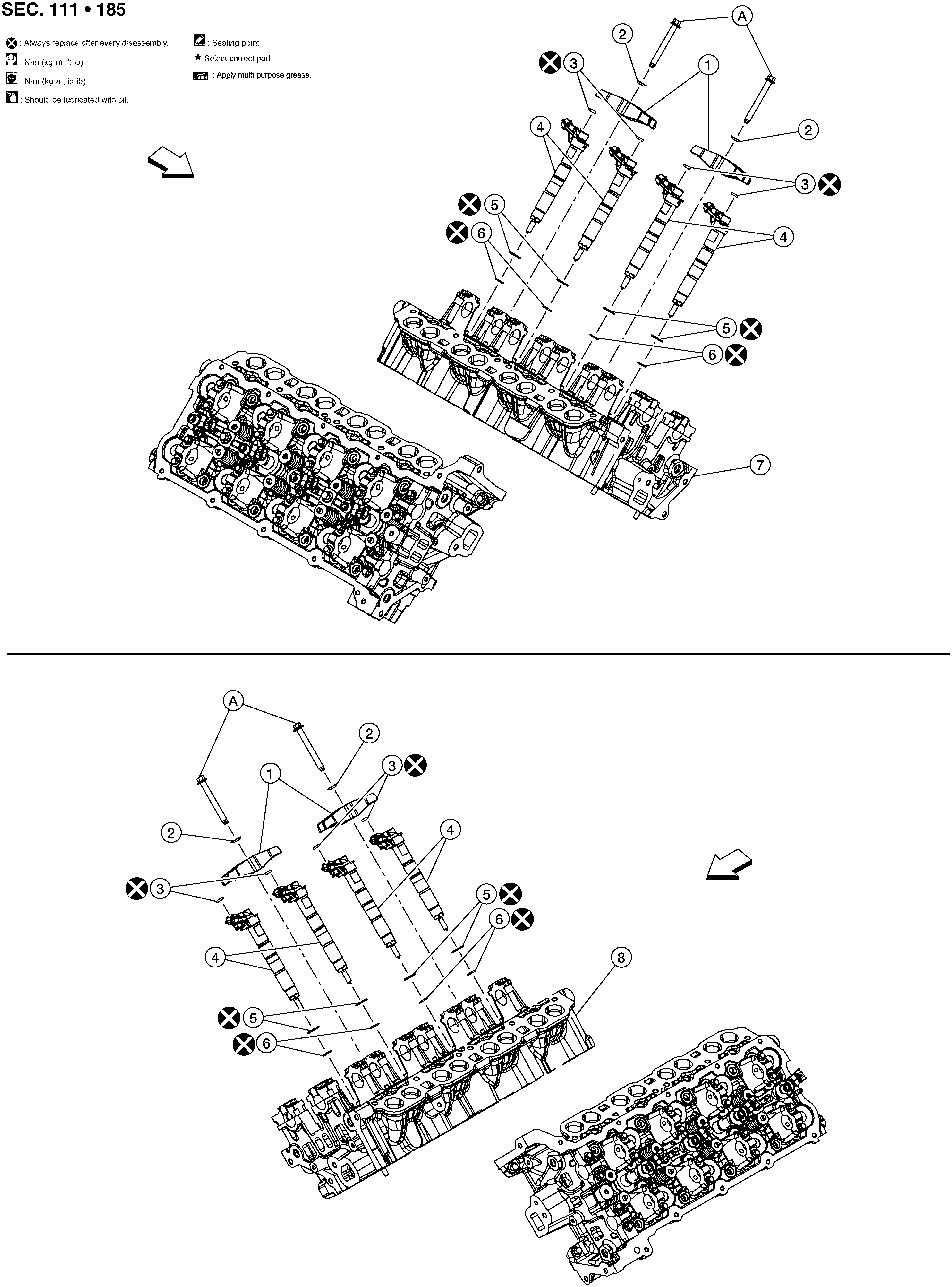

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Injector hold down clamp |
2. |
Spherical washer |
3. |
O-ring |
|
4. |
Fuel injector |
5. |
O-ring |
6. |
Sealing washer |
|
7. |
Cylinder head (bank 1) |
8. |
Cylinder head (bank 2) |
A. |
Refer to INSTALLATION |
|
|
Front |
