Removal and Installation (CYLINDER 1 and CYLINDER 3): Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

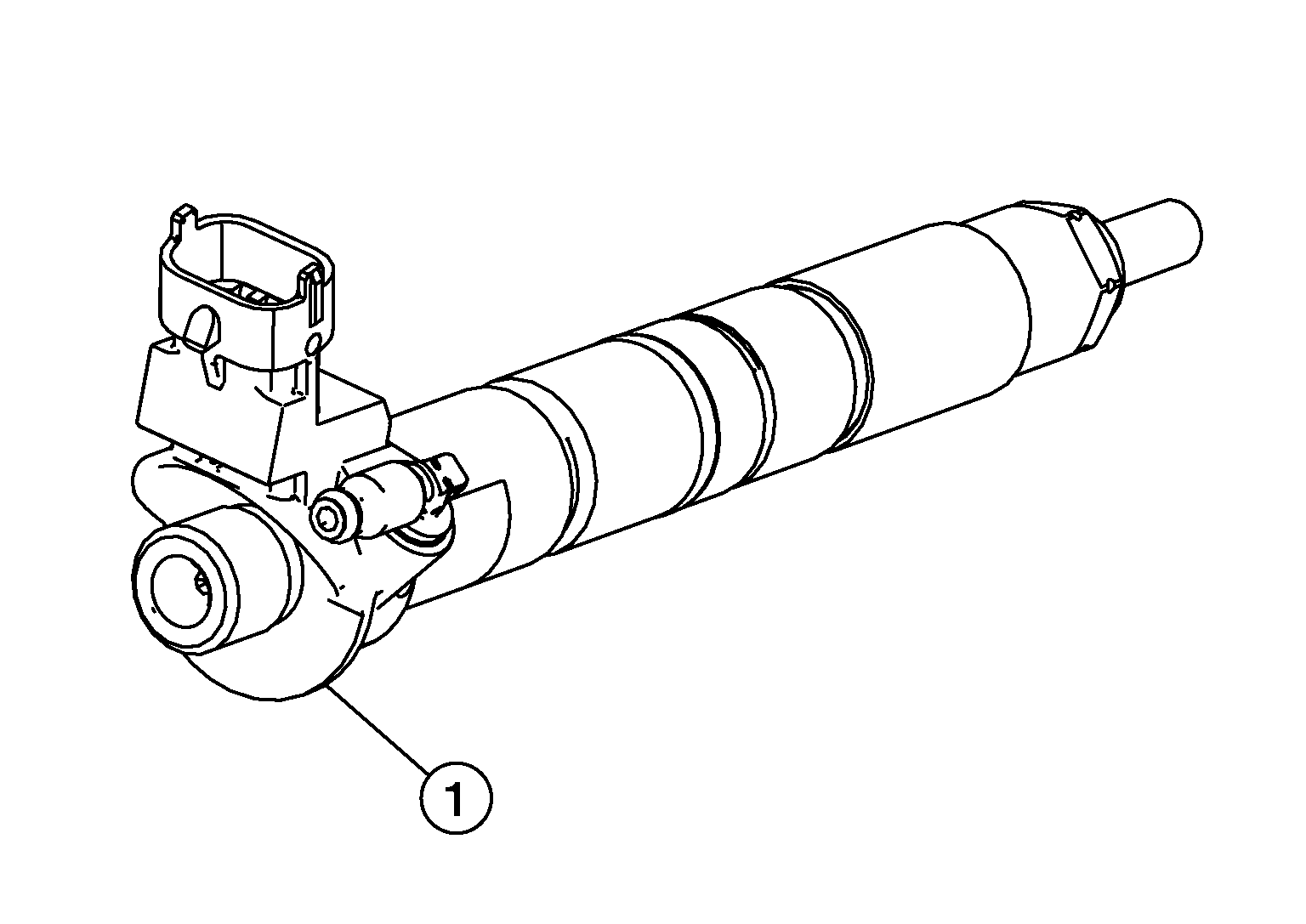

  1. Record the fuel injector trim codes that are listed on the top of each fuel injector (1) and record the cylinder location where each injector will be installed.
    GNSALBIA2189Z-189Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE:
    • The fuel injector trim codes are seven character alphanumeric codes located the top of the injector.
    • If the fuel injector is replaced, perform INJECTOR ADJUSTMENT VALUE REGISTRATION. Refer to Description .

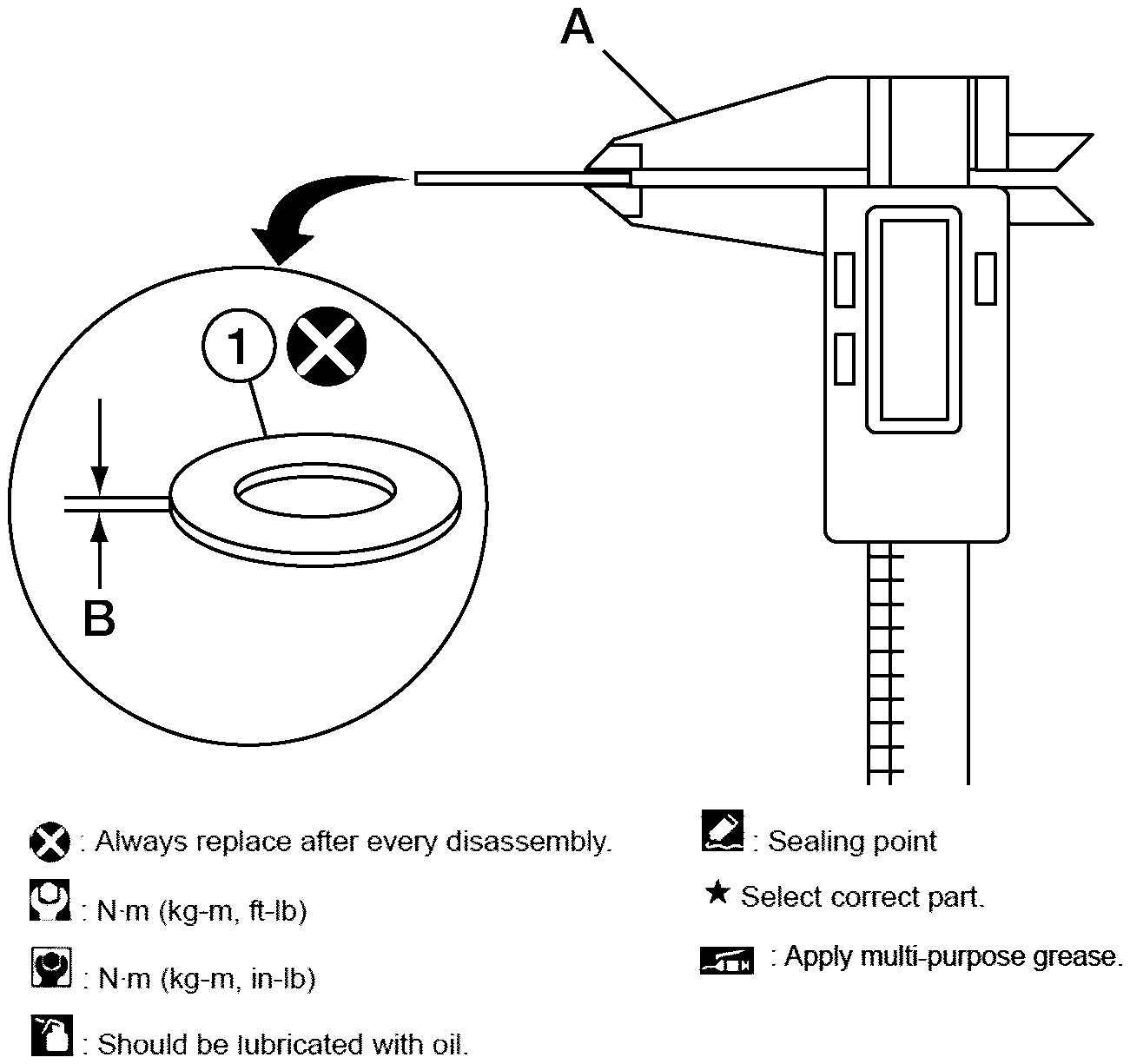

  2. Verify that the new injector sealing washer (1) is the correct thickness using a suitable tool (A).
    GNSALBIA2190Z-190Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • To avoid possible leaks, fuel system component damage or performance issues, always use the correct components, assemble in the correct order and tighten fuel system components to the specified torque.
    • Do not reuse the sealing washer.

    Injector sealing washer thickness (B)

    : 2.5 mm (0.10 in)

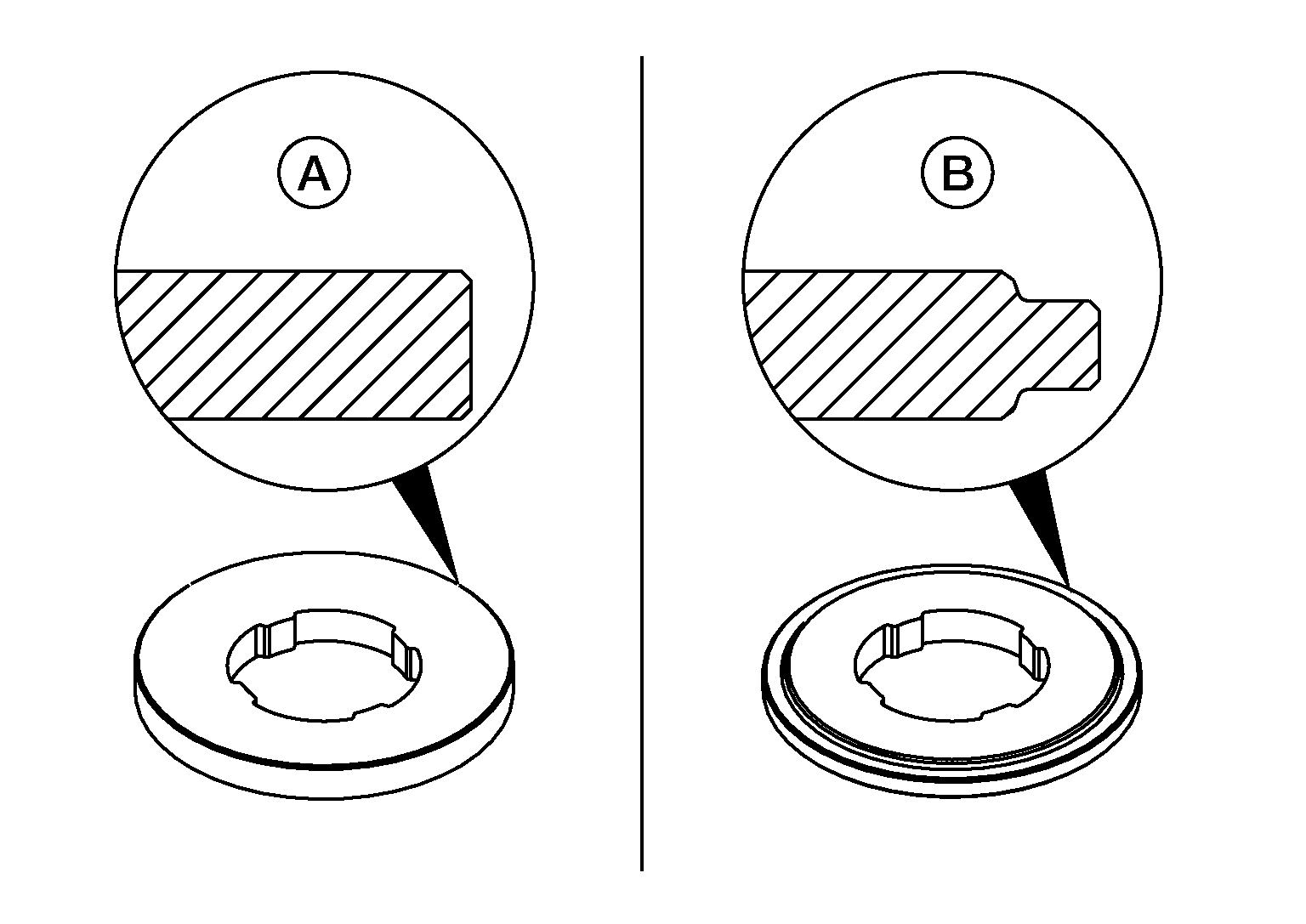

  3. Verify a new sealing washer has been installed on the tip of the injector.
    GNSALBIA2191Z-191Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: A double stacked or incorrect sealing washer can cause high-pressure fuel leaks and/or performance problems because of incorrect injector protrusion.

    (A)

    : Good

    (B)

    : NG

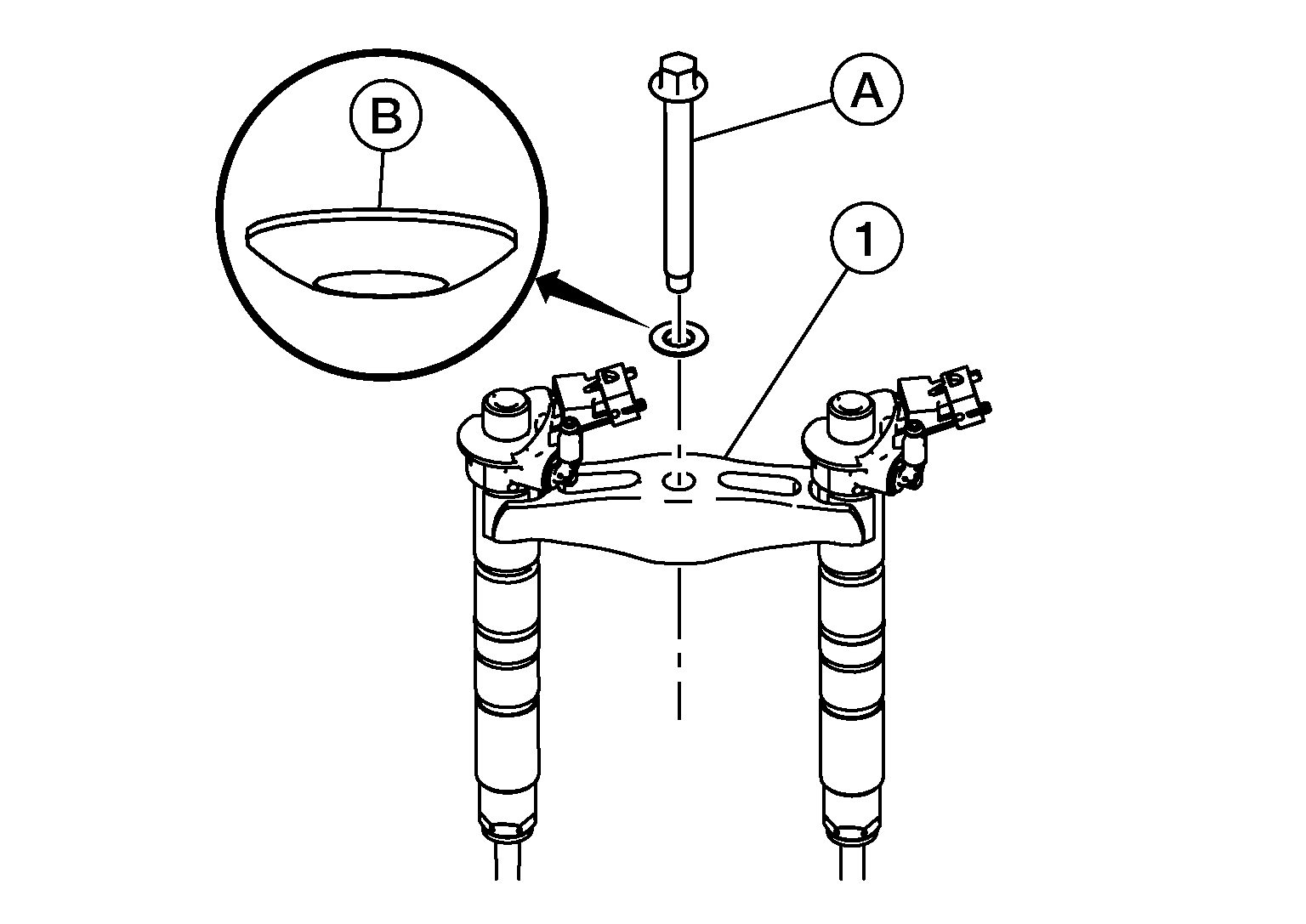

  4. Position fuel injector pairs into a hold-down clamp (1) and make sure the spherical washer (B) is installed between the bolt (A) and the hold-down clamp with the flat side of the washer mating to the bolt.
    GNSALBIA2192Z-192Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse the O-ring.
    NOTE:
    • Install a new O-ring if reinstalling existing fuel injector.
    • Lubricate the injector o-ring with lithium grease and a small amount of clean engine oil.
    • The injector hold-down clamp is noted with a "TOP" on the side of the injector clamp that points outward of the engine.
    • Make sure the injector bore is clean.

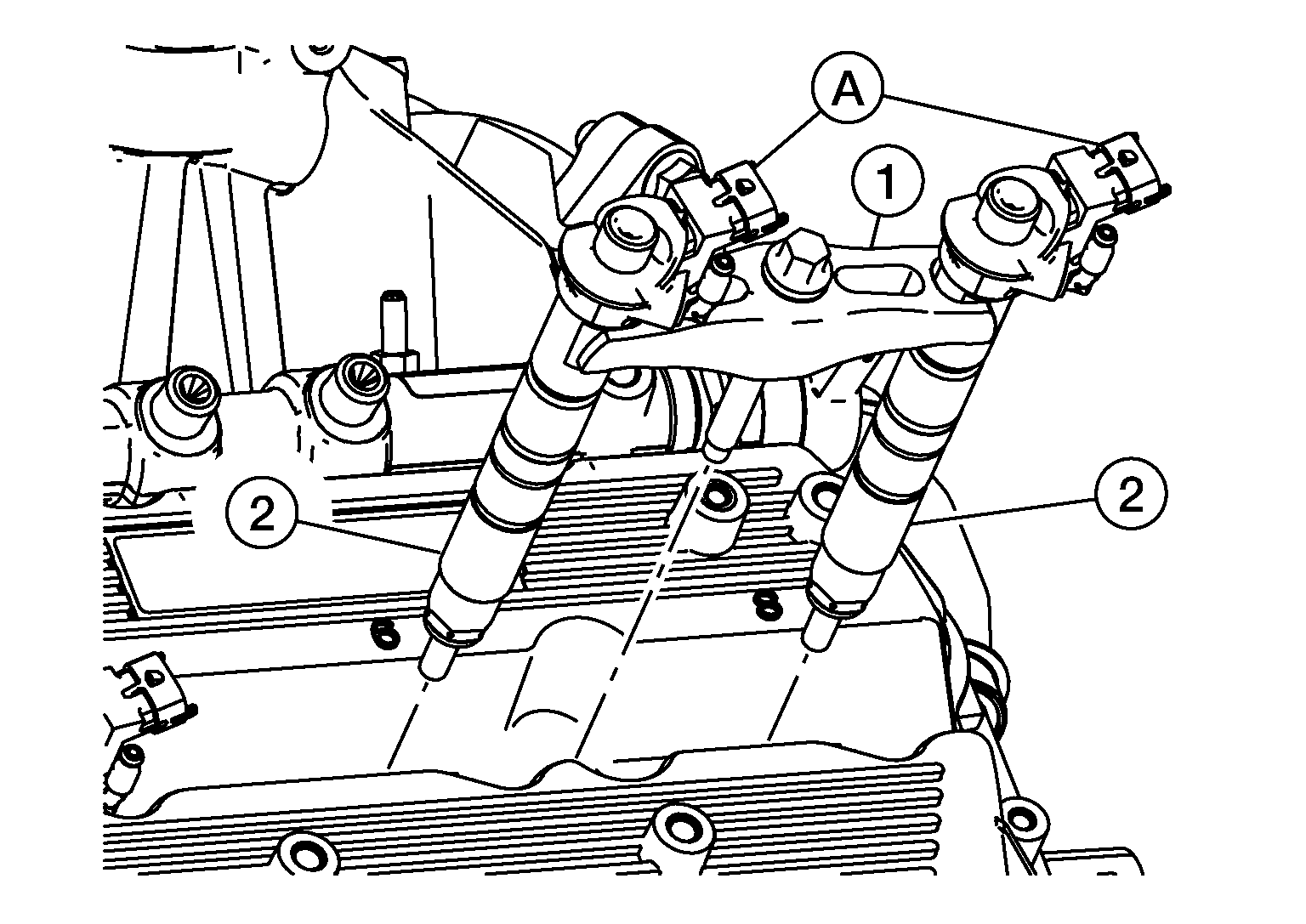

  5. Install pairs of injectors (2) into the injector bores in the cylinder heads.
    GNSALBIA2193Z-193Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE:
    • The Bank 2 injector harness connectors (A) point to the rear of the engine. Bank 1 injector harness connectors (A) point to the front of the engine.
    • If reusing the injector, make sure that the number identified on the injector matches the cylinder number.
    • Be careful that pressure is not placed on the electrical connectors. The electrical connectors can break off if used to push on the injector.

    (1)

    : Injector hold-down clamp

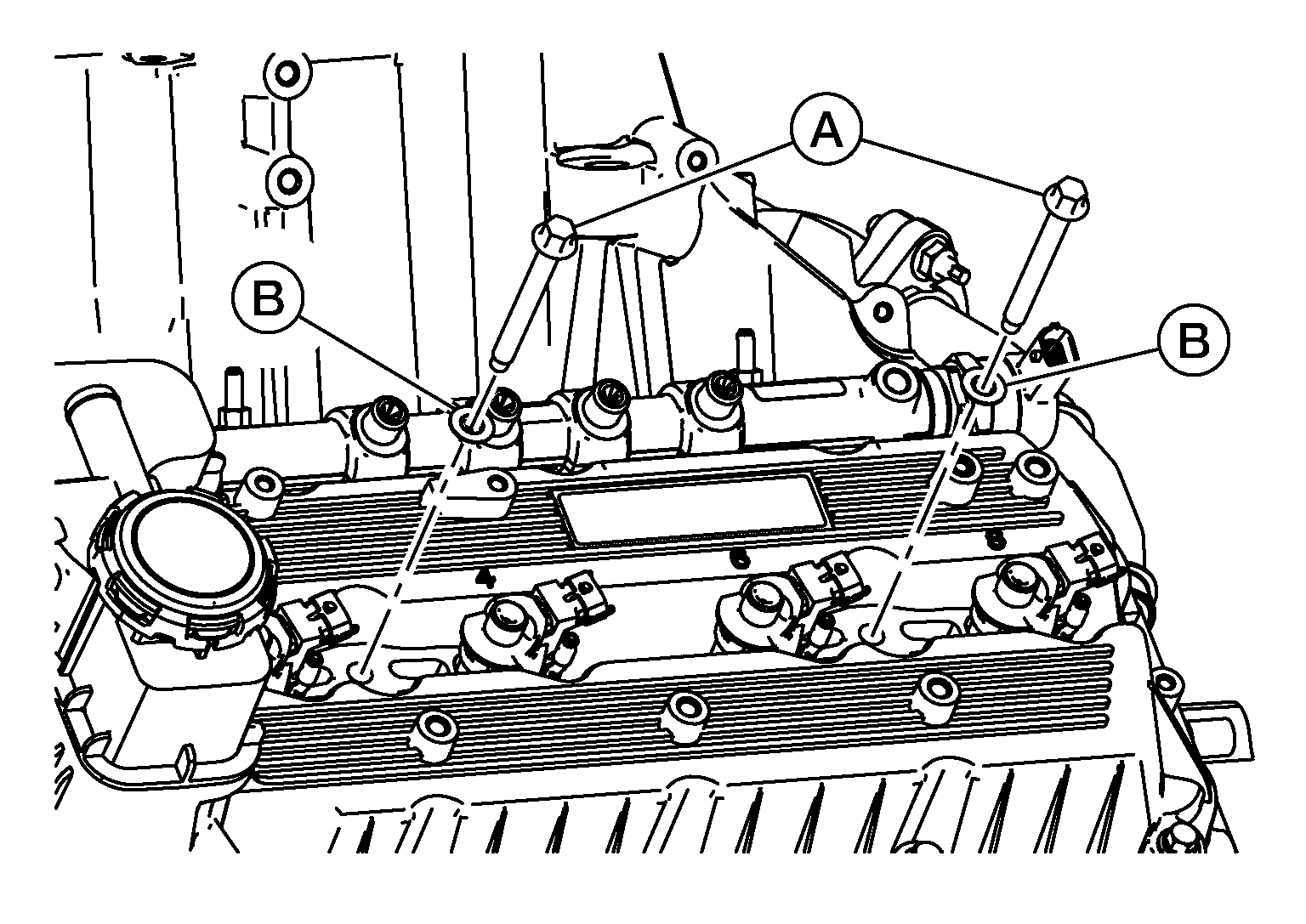

  6. Tighten the injector hold-down clamp bolts (A).
    GNSALBIA2184Z-184Courtesy of NISSAN NORTH AMERICA, INC.

    Step 1

    : 24 N.m (2.4 kg-m, 18 ft-lb)

    Step 2

    : Tighten 90 degrees

    (B)

    : Spherical washer
  7. Installation of the remaining components is in the reverse order of removal.
    NOTE:
    • If a malfunction resulted in coolant, oil, excessive fuel, or excessive black smoke entering the exhaust system, the aftertreatment system must be inspected. Refer to and Aftertreatment DPF Regeneration Test .
    • Prime the fuel system. Refer to Priming (Fuel system priming).
    • Run CONSULT High-Pressure Fuel System Leak Test. Refer to High-Pressure Fuel System Leak Test .
    • Operate the engine and check for leaks.
