Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • The fuel system (fuel pump, high-pressure fuel lines, fuel rail, injectors) contain very high-pressure fuel. To avoid the risk of personal injury or fire;
    • Do not loosen any fittings while the engine is running.
    • wait at least 10 minutes after shutting down the engine before loosening any fittings in the high-pressure fuel system to allow pressure to decrease to a lower level.
    • Wear appropriate eye protection and protective equipment as high-pressure fuel spray can penetrate skin.
    • Never smoke or allow sparks or flames (such as pilot lights, electrical switches, or welding equipment) in the work area. Do not allow diesel fuel to spill onto a hot exhaust manifold which can cause a fire.
  • Diesel fuel and diesel fuel vapor is flammable. To avoid risk of fire or burns, never smoke or allow sparks or flames (such as pilot lights, electrical switches, or welding equipment) in the work area. Do not allow diesel fuel to spill onto a hot exhaust manifold which can cause a fire.
  • When using high-pressure water or steam cleaning equipment, to avoid the risk of personal injury from flying debris and hot steam:
    • Wear appropriate eye protection and protective clothing including gloves and a face shield.
  • When using compressed air for cleaning, to avoid the risk of personal injury from flying debris and dirt:
    • Do not exceed 207 kPa (2.111 kg/cm 2 , 30 psi).
    • Wear appropriate eye protection and protective clothing including gloves.
CAUTION: To avoid possible engine and system damage or performance issues:
  • Brush away all dirt and debris from the area prior to opening any fuel, air intake, exhaust, cooling, aftertreatment or other engine system.
  • To avoid contamination, any open engine system ports must be closed immediately with clean care caps or an appropriate covering.
  • Do not allow any debris to fall into the engine.
  • Do not allow any chemical cleaners to enter the engine or any open systems during the cleaning process.

Fuel Pump Drain Line

  1. Disconnect the battery or batteries. Refer to Battery Disconnect .
  2. Mark the location of the drain lines to be sure they are installed in the correct location during assembly.
    GNSALBIA2234Z-234Courtesy of NISSAN NORTH AMERICA, INC.

    (1)

    : Injector drain line

    (2)

    : Fuel pressure relief valve drain line

    CAUTION: To avoid damage, do not kink or bend tubing or lines. Ensure all tubes and lines are routed and installed properly and care is given during the disassembly and assembly process. Failure to do so can result in damage to the tubes, lines or surrounding components.
  3. Remove the intake manifold. Refer to Removal and Installation .
  4. Disconnect the two-button drain connector from high-pressure fuel pump (2) and remove the fuel pump return line (1).

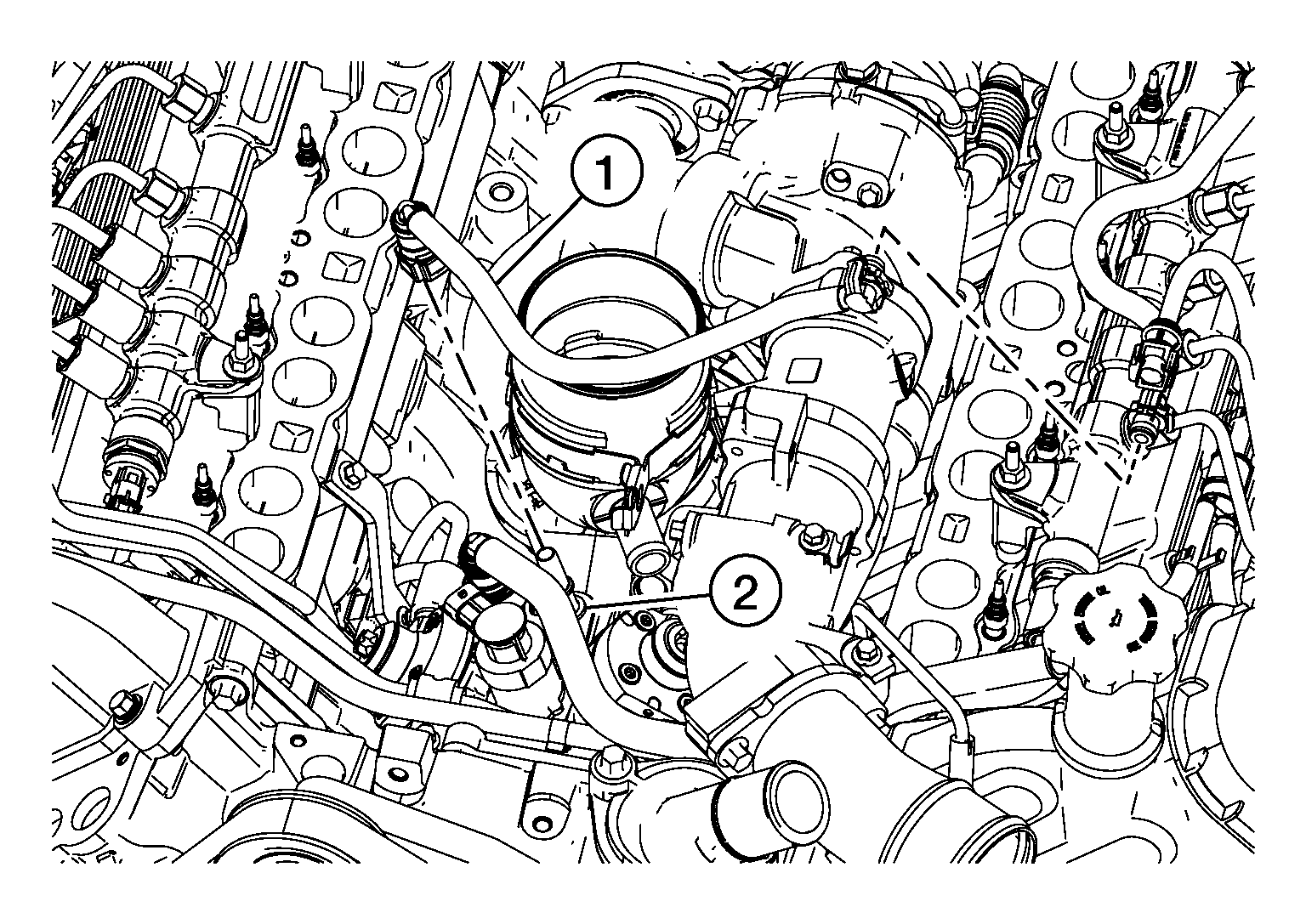

    GNSALBIA2235Z-235Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: After removing the fuel pump return line, install Tool on all open fuel system components

    Tool

    :-- - (J-54427)

Injector Drain Line

  1. Disconnect the battery or batteries. Refer to Battery Disconnect .
  2. Mark the location of the drain lines to be sure they are installed in the correct location during assembly.

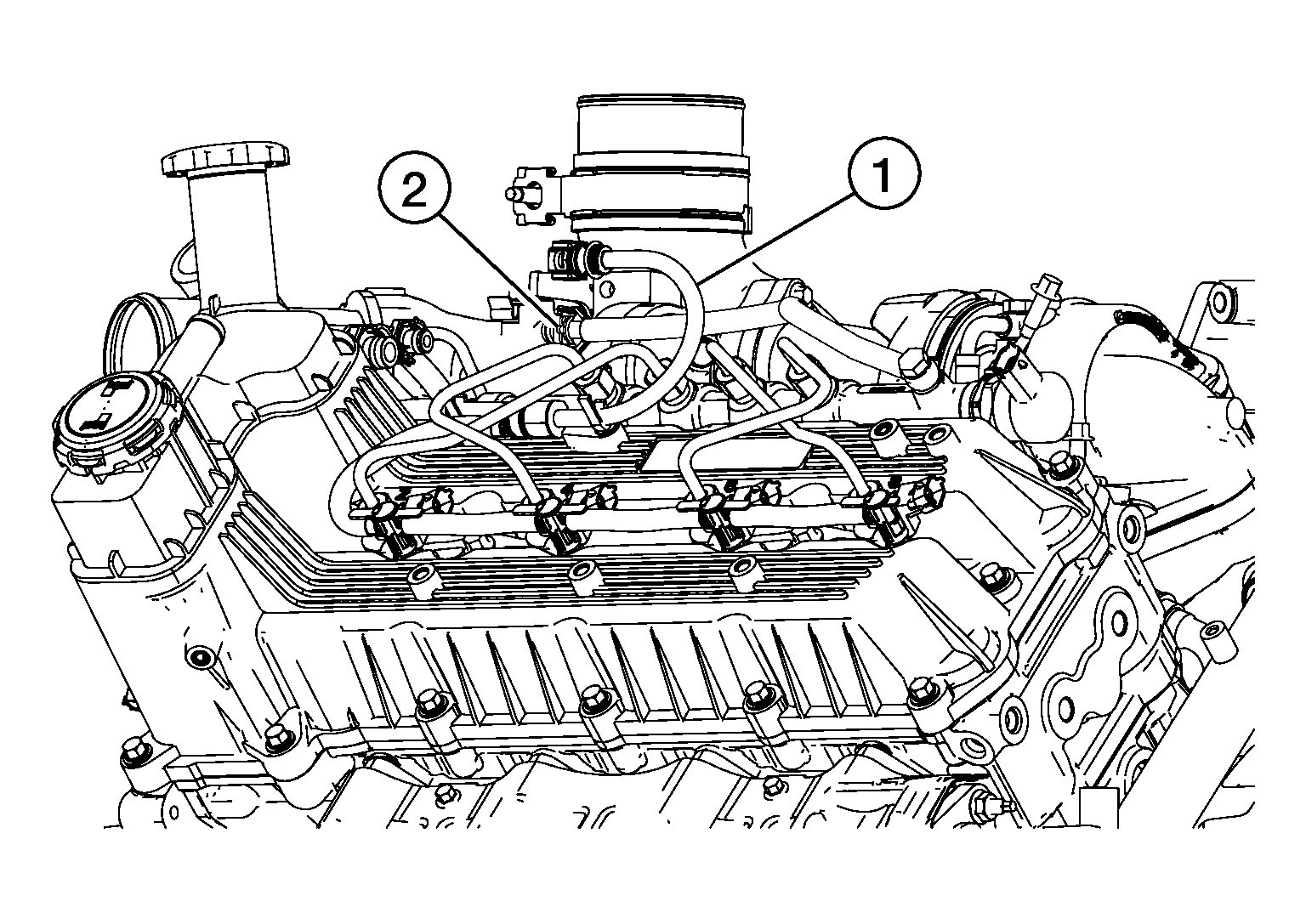

    GNSALBIA2234Z-234Courtesy of NISSAN NORTH AMERICA, INC.

    (1)

    : Injector drain line

    (2)

    : Fuel pressure relief valve drain line

    CAUTION: To avoid damage, do not kink or bend tubing or lines. Ensure all tubes and lines are routed and installed properly and care is given during the disassembly and assembly process. Failure to do so can result in damage to the tubes, lines or surrounding components.
  3. Remove the intake manifold. Refer to Removal and Installation .
  4. Disconnect the harness connector from the injector to allow adequate room to access the injector drain line.
  5. Disconnect or remove any clips (A) securing the injector drain lines.

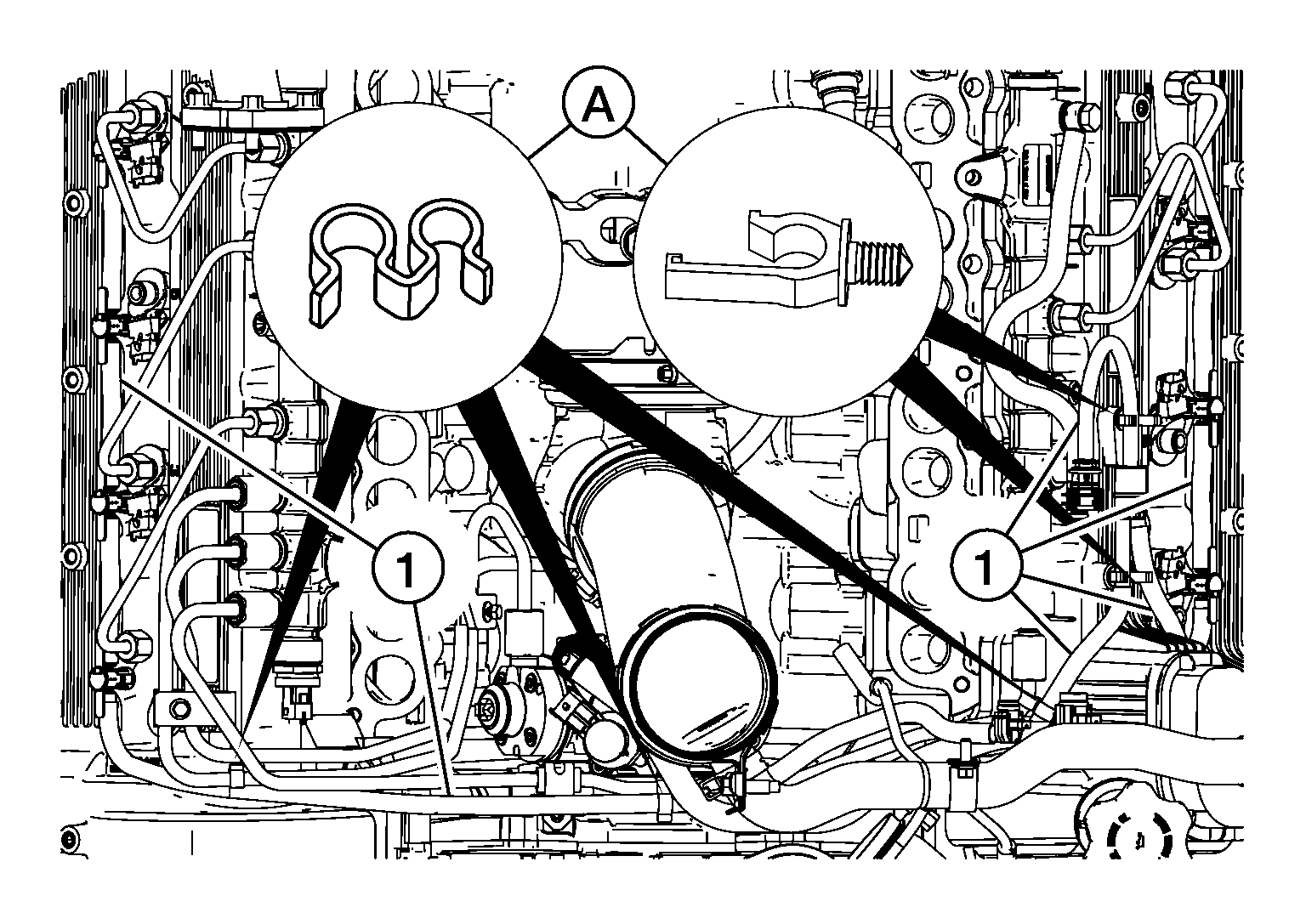

    GNSALBIA2237Z-237Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: Mark the location of all clips and the routing of the injector drain line (1) to be sure it is replaced in the correct location during assembly.
  6. Press down on the tabs (B) and pull up on the center button (A) to disconnect the eight quick disconnect connectors from the injector drain ports.

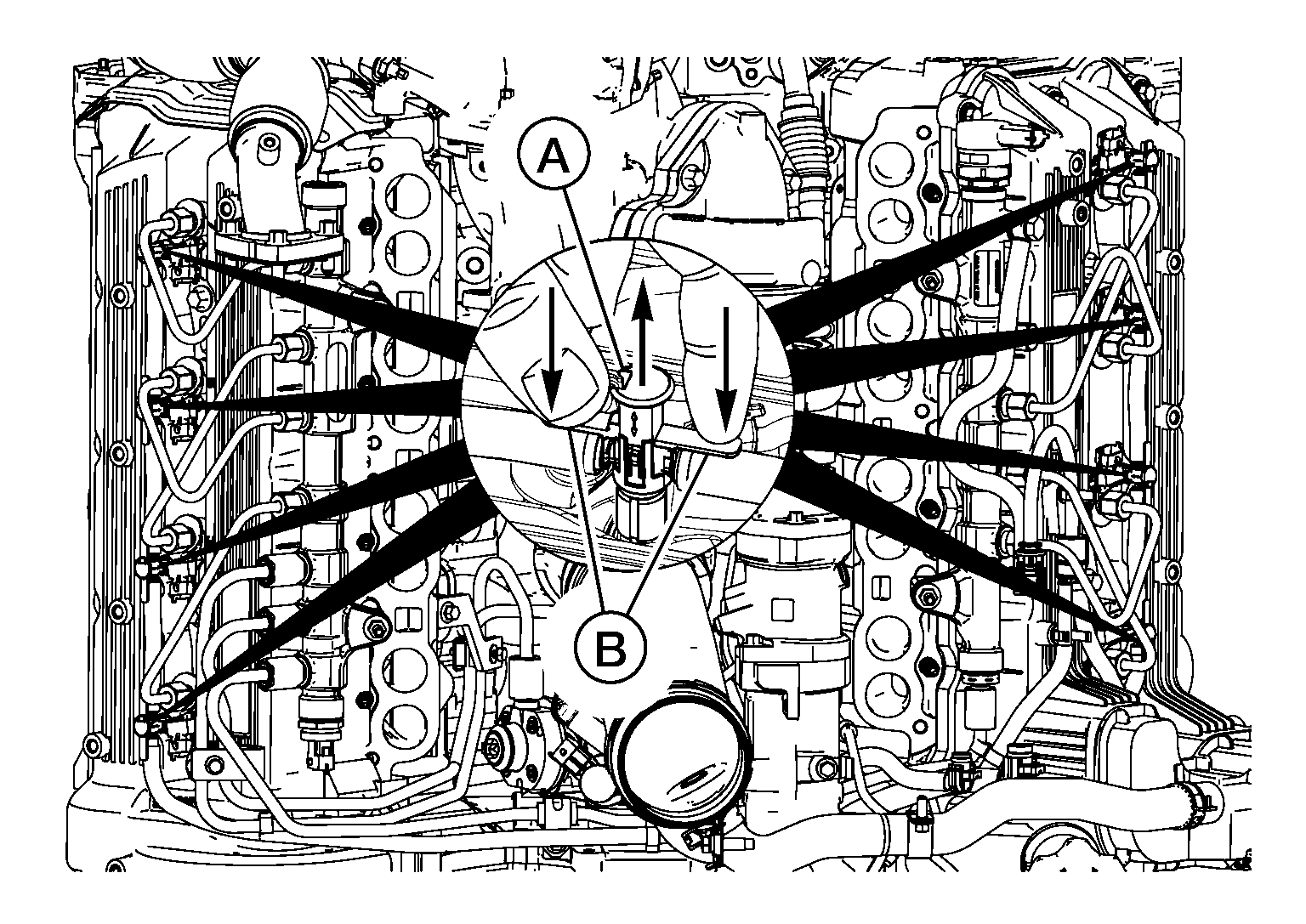

    GNSALBIA2232Z-232Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove the injector drain line (2) from the engine.

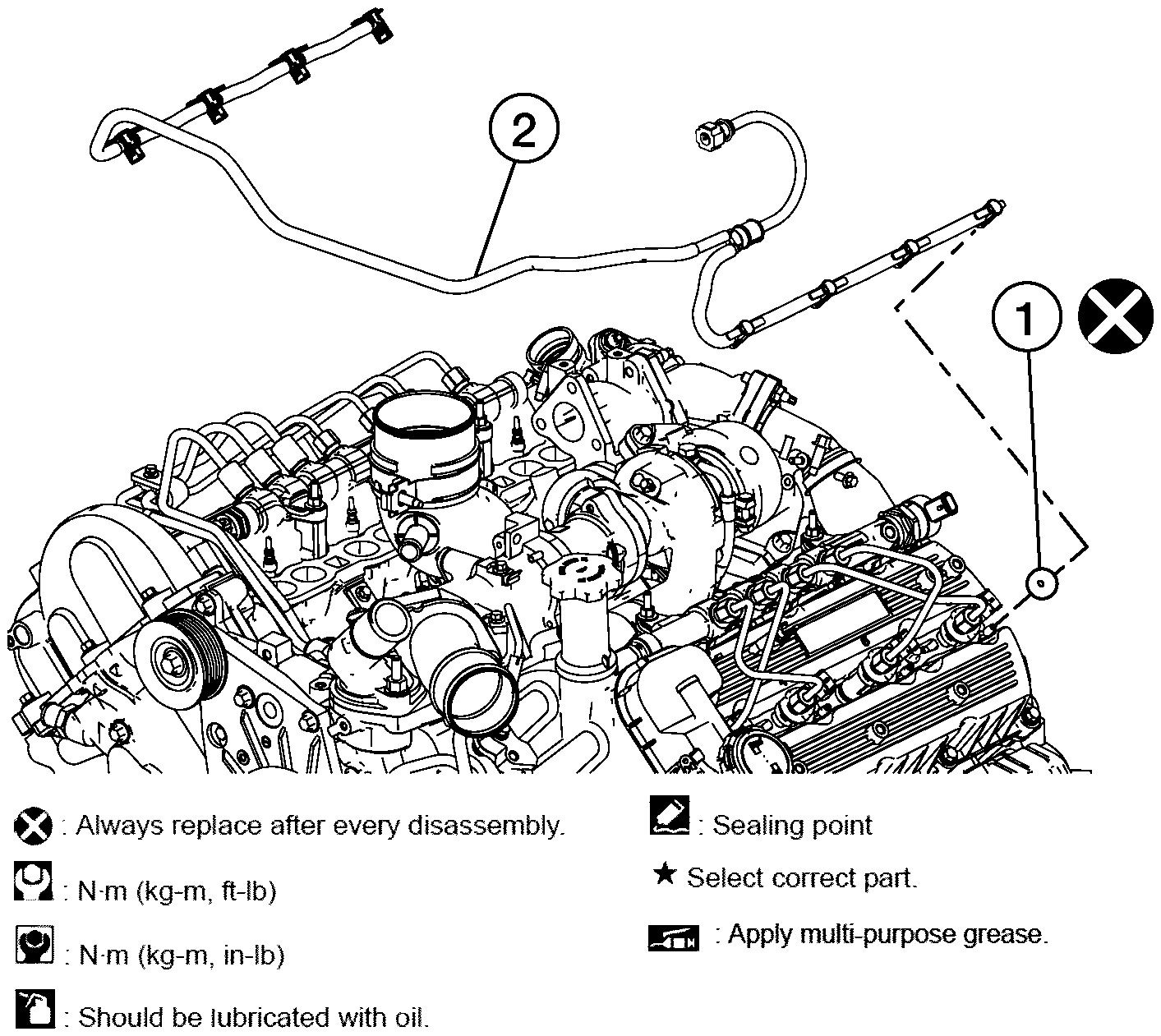

    GNSALBIA2238Z-238Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse the O-ring (1).
    NOTE: After removing the injector drain line, install Tool on all open fuel system components

    Tool number

    :-- - (J-54427)

    CAUTION: To avoid damage, do not kink or bend tubing or lines. Ensure all tubes and lines are routed and installed properly and care is given during the disassembly and assembly process. Failure to do so can result in damage to the tubes, lines or surrounding components.

Fuel Pressure Relief Valve Drain Line

  1. Disconnect the battery. Refer to Battery Disconnect .
  2. Relieve the fuel pressure.
  3. Remove the air duct. Refer to Exploded View .
  4. Mark the location of the drain lines to be sure they are installed in the correct location during assembly.
    GNSALBIA2234Z-234Courtesy of NISSAN NORTH AMERICA, INC.

    (1)

    : Injector drain line

    (2)

    : Fuel pressure relief valve drain line

    CAUTION: To avoid damage, do not kink or bend tubing or lines. Ensure all tubes and lines are routed and installed properly and care is given during the disassembly and assembly process. Failure to do so can result in damage to the tubes, lines or surrounding components.
  5. Drain the fuel filter housing (Stage 2). Refer to Removal and Installation .
  6. Remove the banjo bolt (A) and washers (B) from the fuel rail [bank 2 (1)].

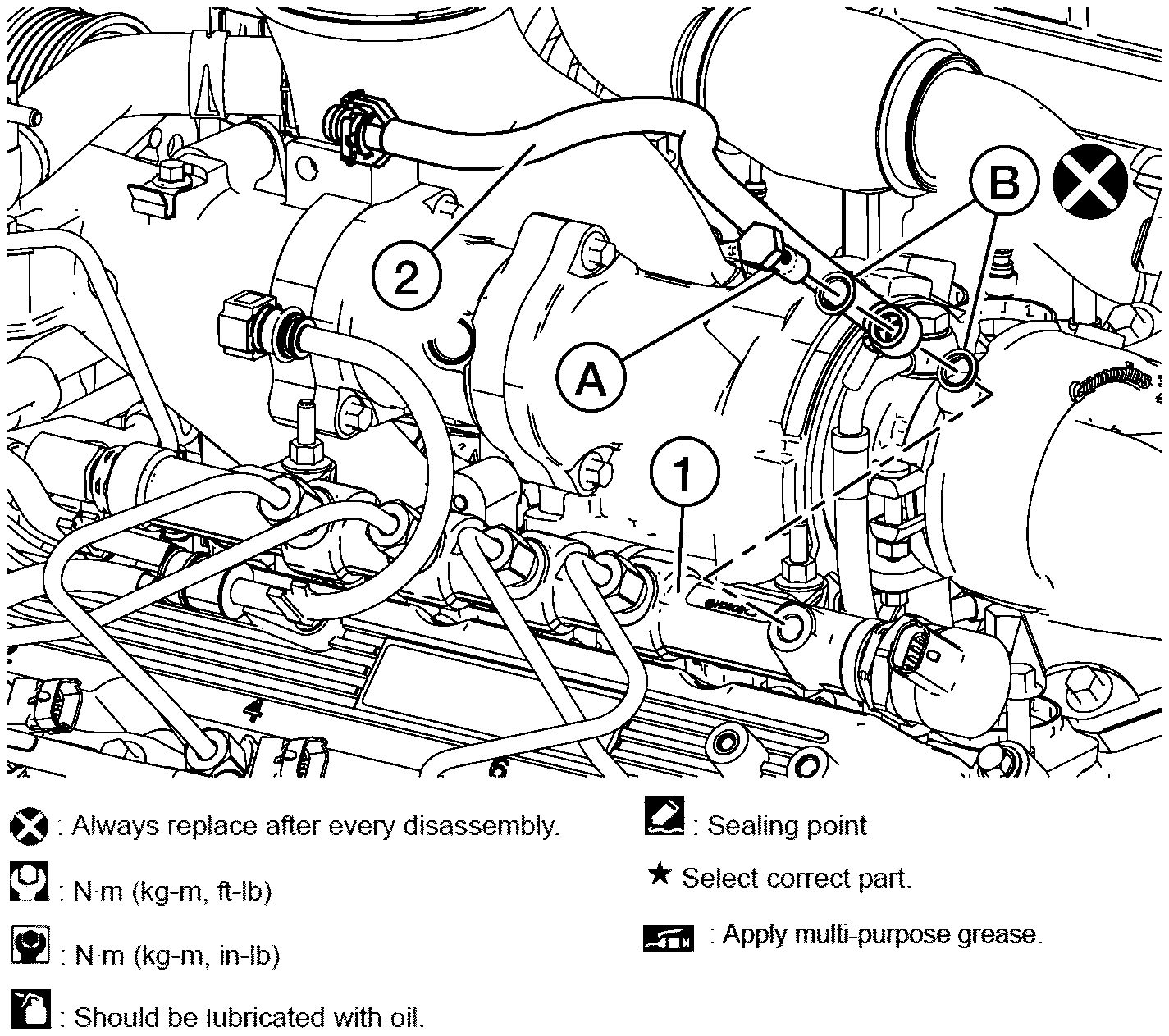

    GNSALBIA2236Z-236Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove the fuel pressure relief valve drain line (2) from the engine.
    CAUTION: Do not reuse the washers.
    NOTE: After removing the fuel pressure relief valve drain line, install Tool on all open fuel system components.

    Tool

    :-- - (J-54427)

    CAUTION: To avoid damage, do not kink or bend tubing or lines. Ensure all tubes and lines are routed and installed properly and care is given during the disassembly and assembly process. Failure to do so can result in damage to the tubes, lines or surrounding components.
