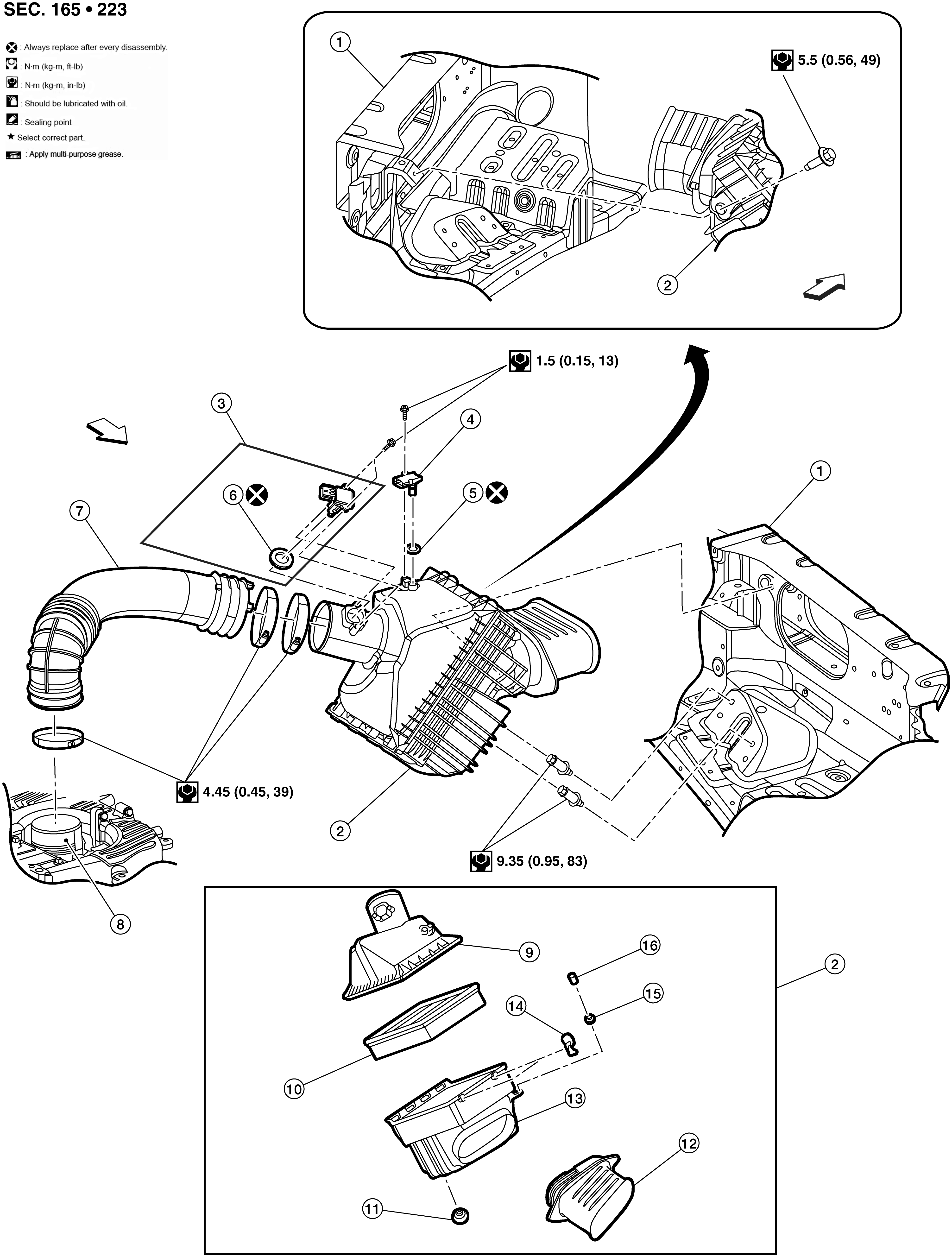

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Hoodledge |
2. |
Air cleaner case |
3. |
Mass air flow sensor |
|
4. |
Turbocharger compressor intake pressure/temperature sensor |
5. |
O-ring |
6. |
O-ring |
|
7. |
Air duct |
8. |
Air inlet connection |
9. |
Air cleaner case (upper) |
|
10. |
Air filter |
11. |
Mounting rubber |
12. |
Air duct (inlet) |
|
13. |
Air cleaner case (lower) |
14. |
Clip |
15 |
Mounting rubber |
|
16. |
Retainer |
|
Front |
||
