Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove combination switch. Refer to Removal and Installation .
  2. Remove steering angle sensor from steering column. Refer to Removal and Installation .
  3. Disconnect the harness connectors from the paddle shifter (if equipped). Refer to Exploded View .
  4. Remove instrument lower panel LH. Refer to Removal and Installation .

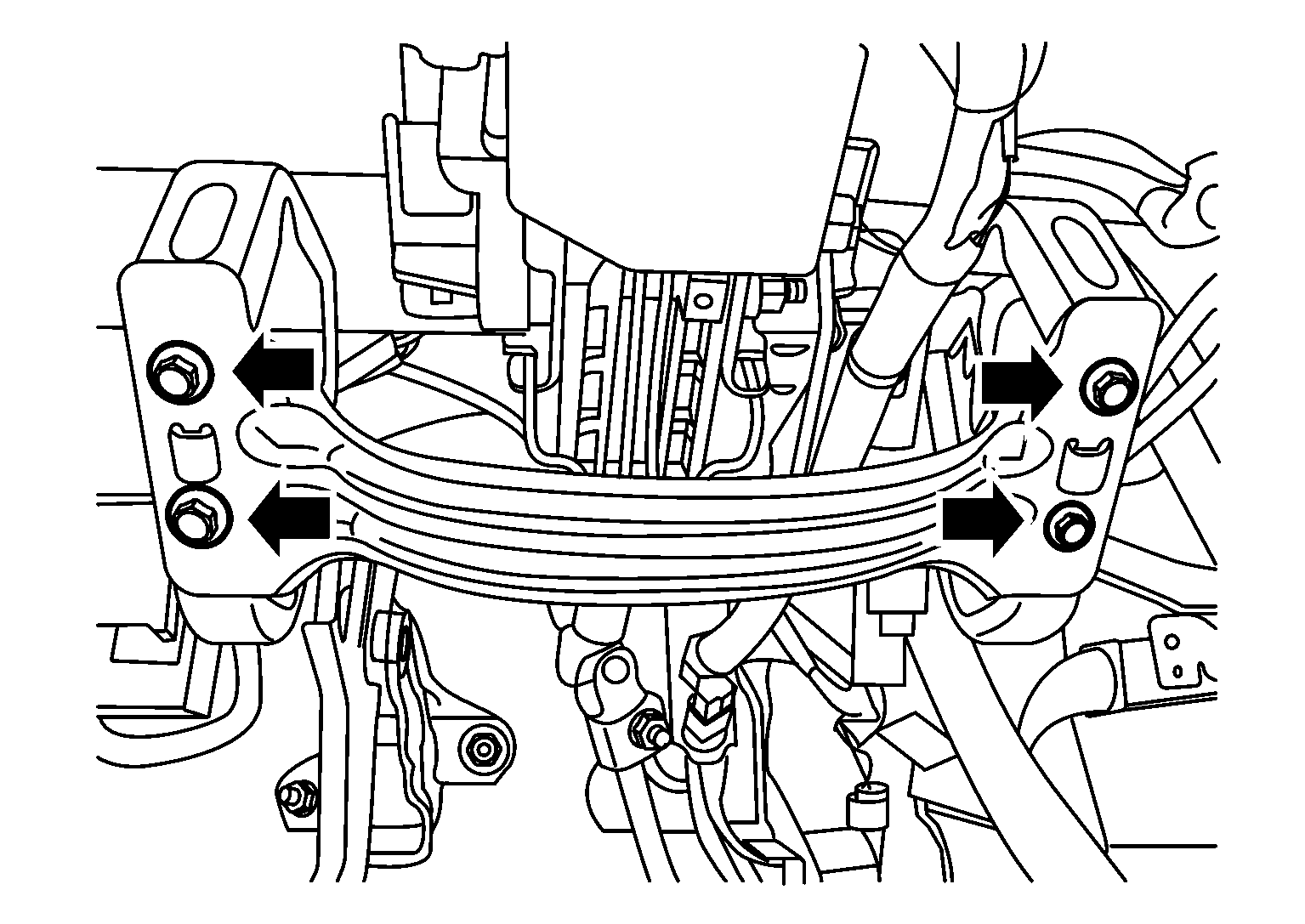

  5. Remove the instrument panel brace bolts (SYMBOL ) and the instrument panel brace.
    GNSDB113164Courtesy of NISSAN NORTH AMERICA, INC.
  6. Disconnect harness connectors from tilt and telescopic motors (if equipped).
  7. Separate harness from steering column.

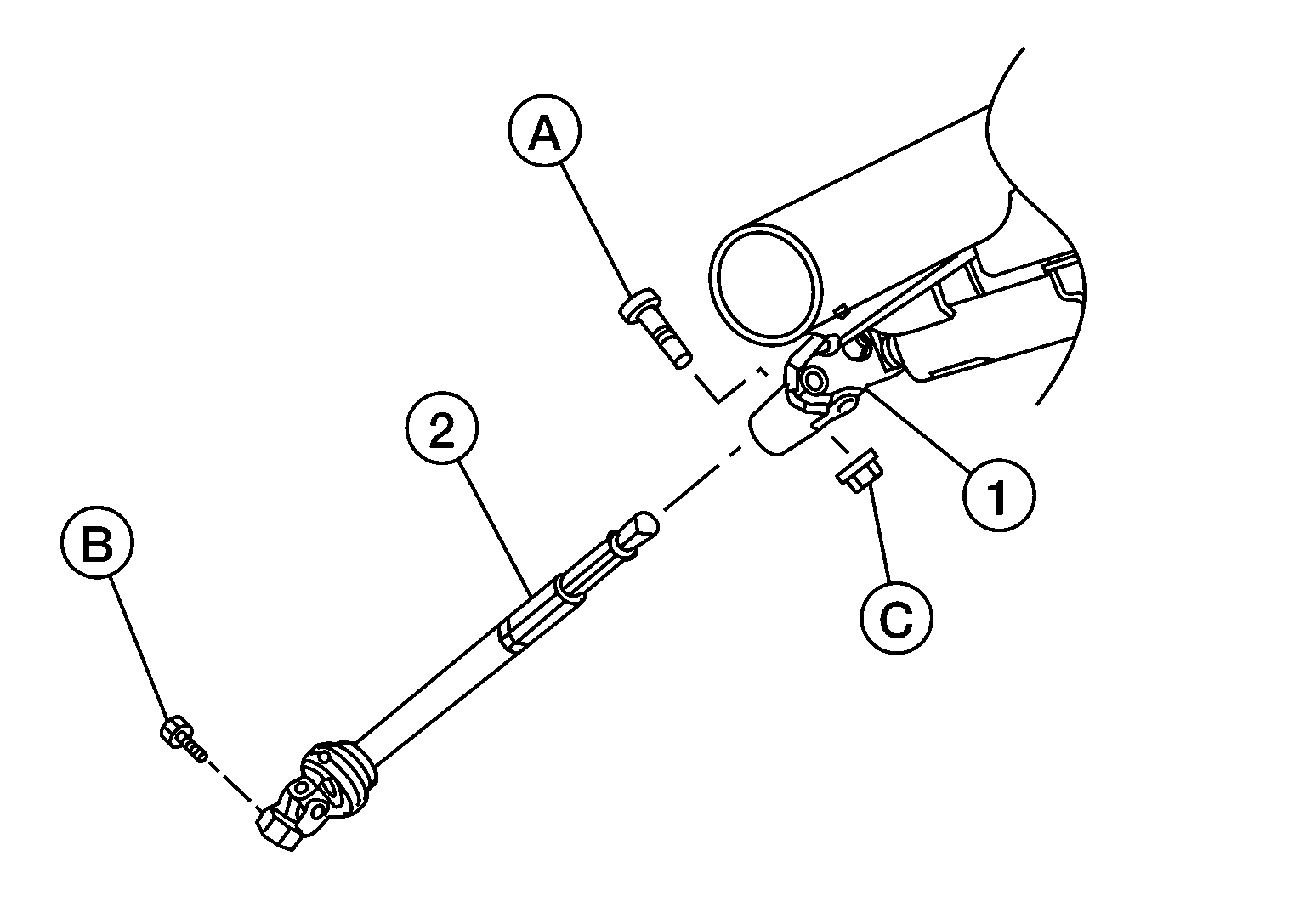

  8. Remove nut (C) and bolt (A) and separate steering lower joint (2) from steering column upper joint (1).
    GNSDB118992Courtesy of NISSAN NORTH AMERICA, INC.

    (B)

    Steering lower joint pinch bolt
    CAUTION: Do not reuse pinch bolt nut.

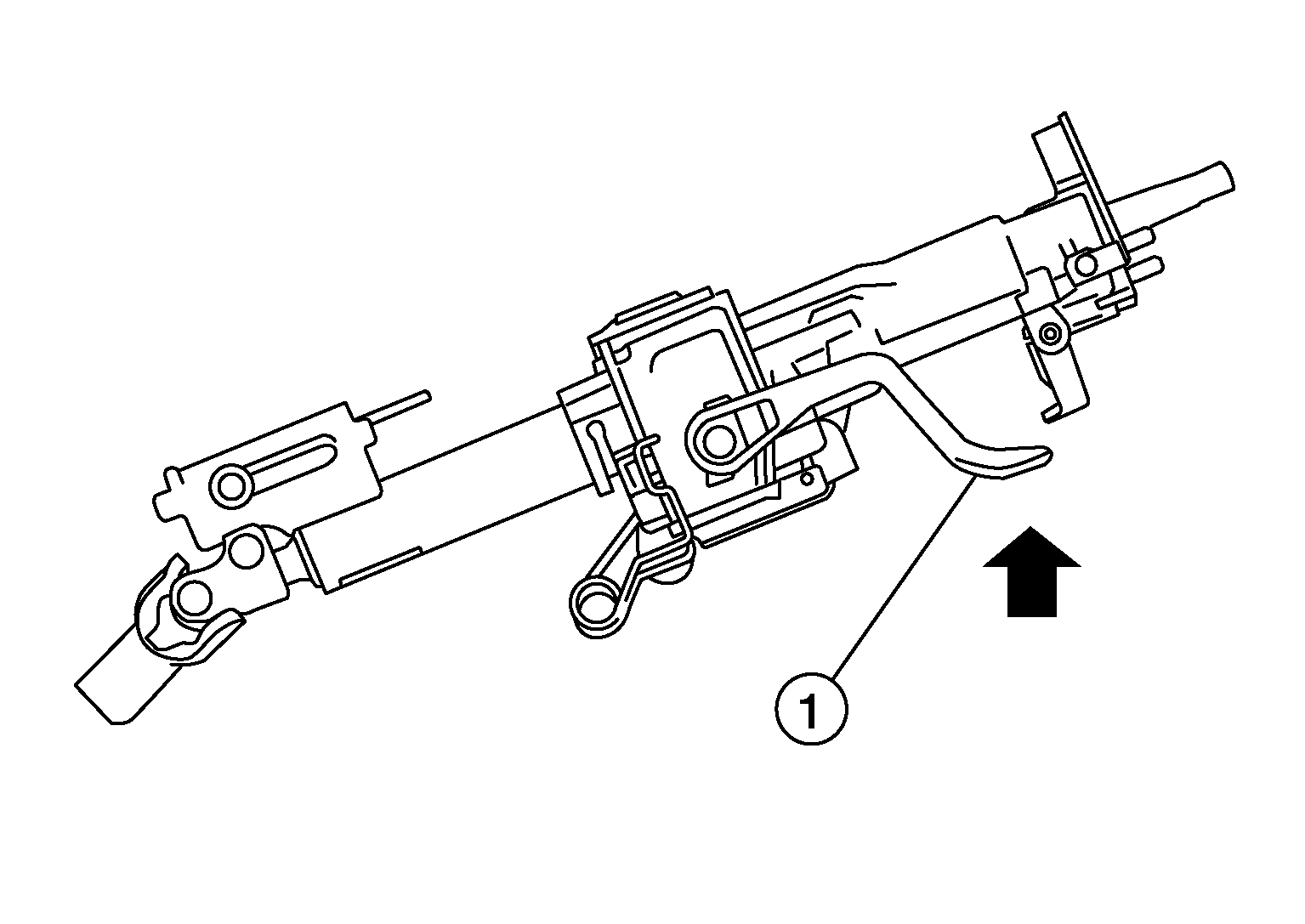

  9. Place steering column tilt/telescope lever (1) in locked position (SYMBOL ) as shown (if equipped).
    GNSDB117179Courtesy of NISSAN NORTH AMERICA, INC.
  10. Remove steering column nuts and bolts then remove steering column.
