Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

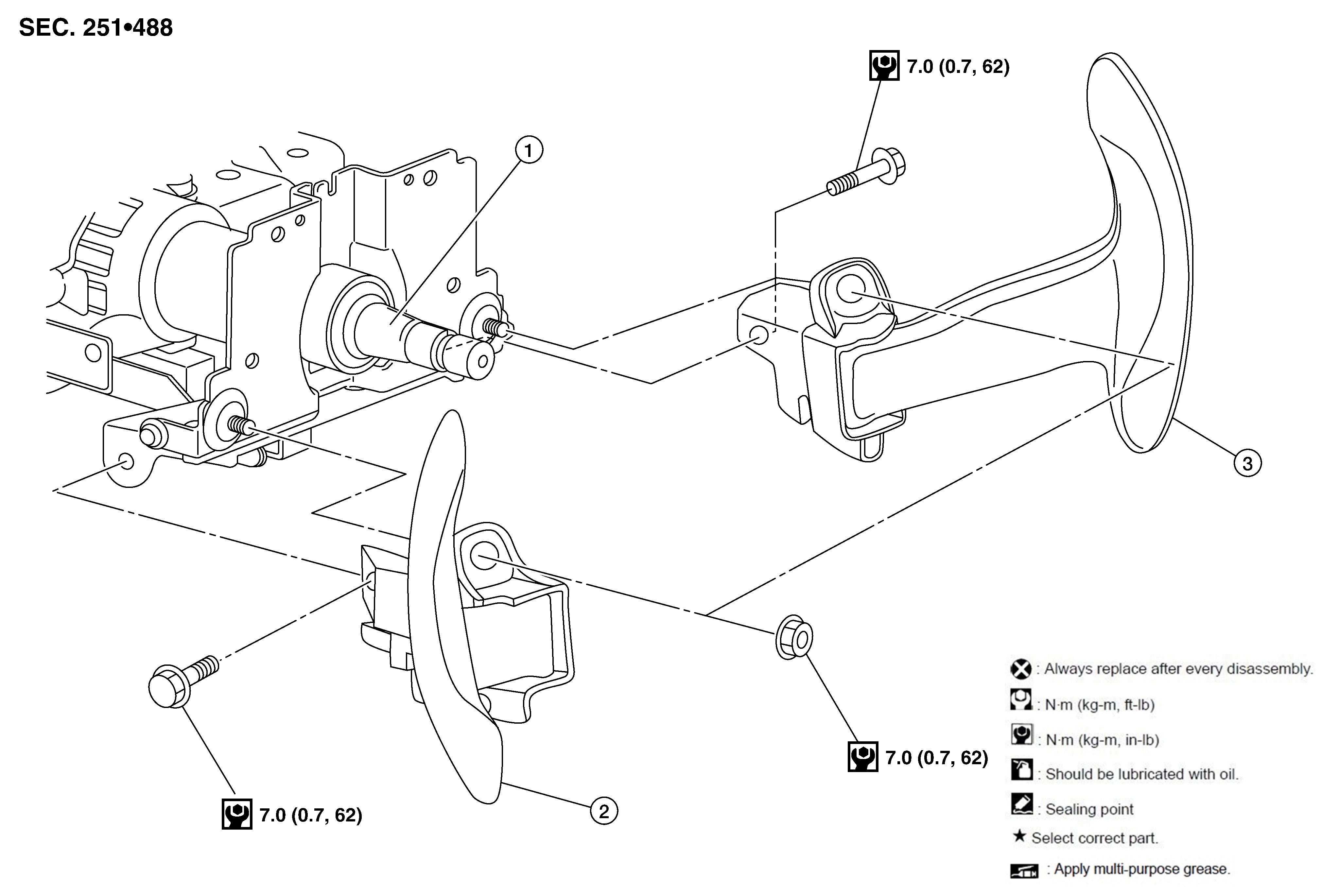

GNSAWDIA0557GB-557Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column assembly

2.

Paddle shifter (shift-down)

3.

Paddle shifter (shift-up)
