Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
|

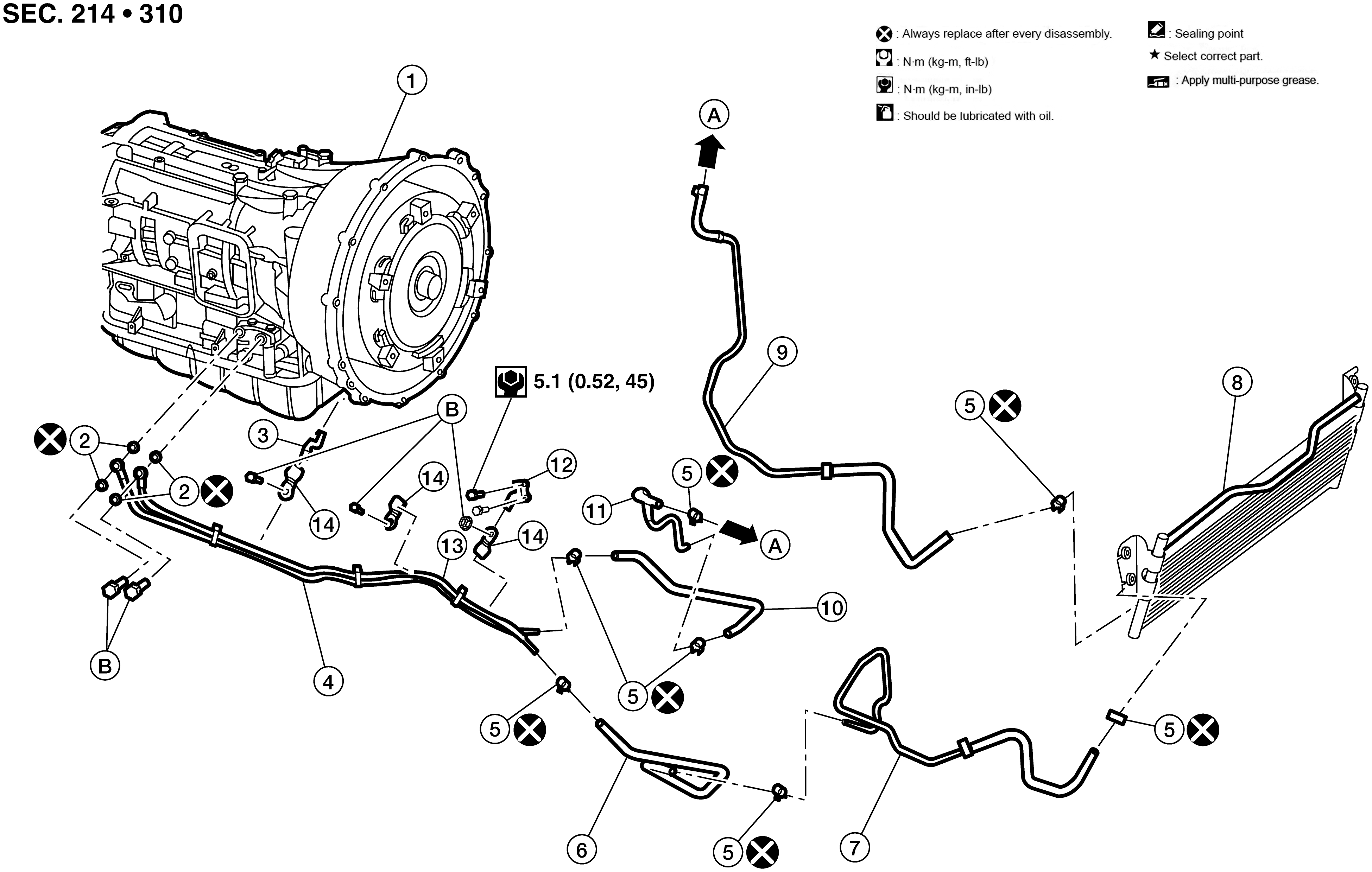

1. |
A/T assembly |
2. |
Copper washer |
3. |
Bracket A |
|
4. |
Fluid cooler tube B |
5. |
Hose clamp |
6. |
Fluid cooler hose A |
|
7. |
Fluid cooler tube C |
8. |
A/T fluid cooler |
9. |
Fluid cooler tube D |
|
10. |
Fluid cooler hose B |
11. |
Fluid cooler tube E |
12. |
Bracket B |
|
13. |
Fluid cooler tube A |
14. |
Tube clip |
A. |
To radiator. Refer to |
|
B. |
Refer to Installation . |
