Climate Controlled Seat Switch: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove shift selector knob. Refer to Removal and Installation .
  2. Remove shift selector finisher. Refer to Exploded View .

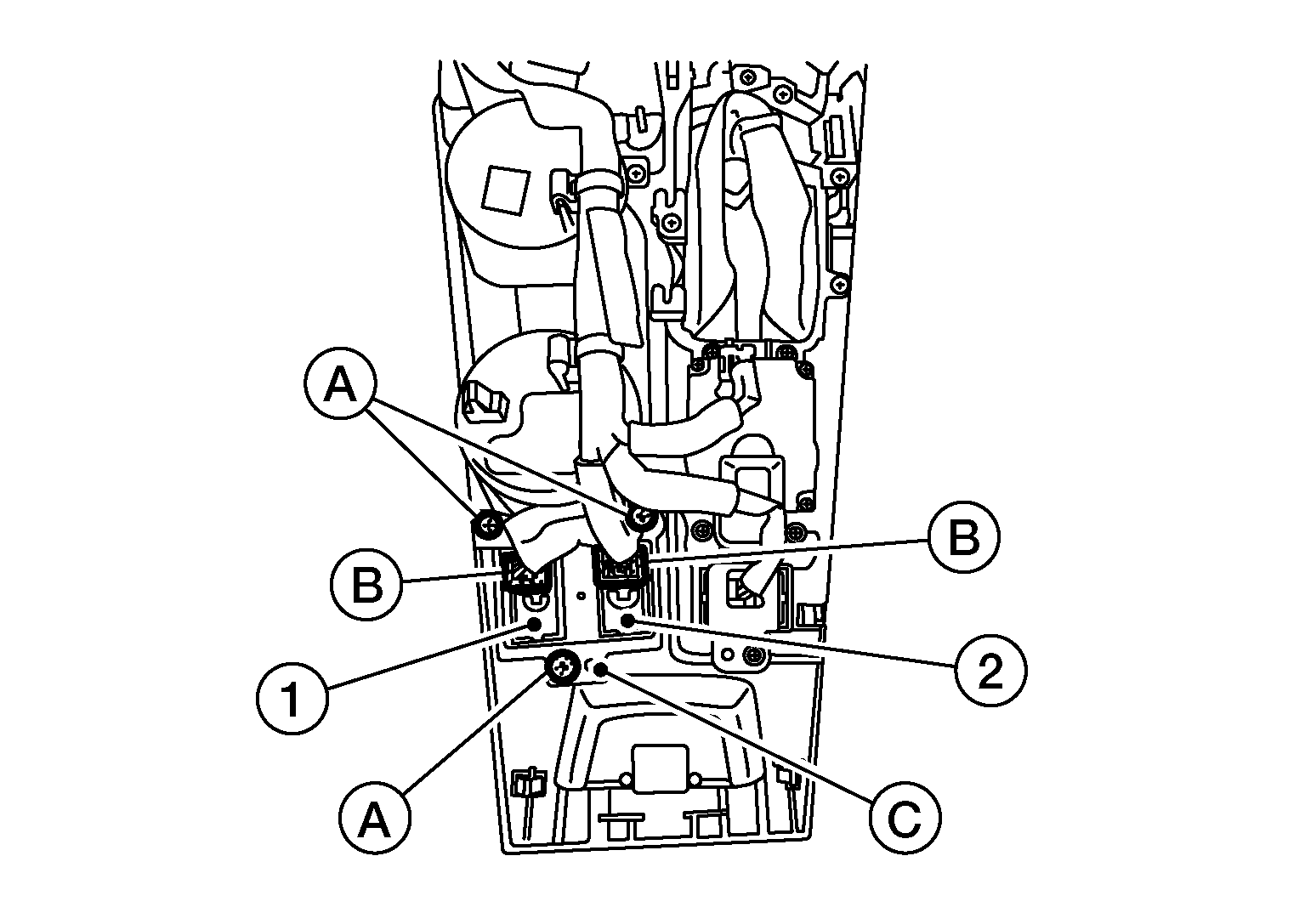

  3. Disconnect harness connectors (B) from climate controlled seat switch (1, 2) then remove screws (A).
    GNSALJIA1798Z-798Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove switch carrier (C) then release pawls and remove climate controlled seat switch (1, 2) from switch carrier (C).
