Component Location

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

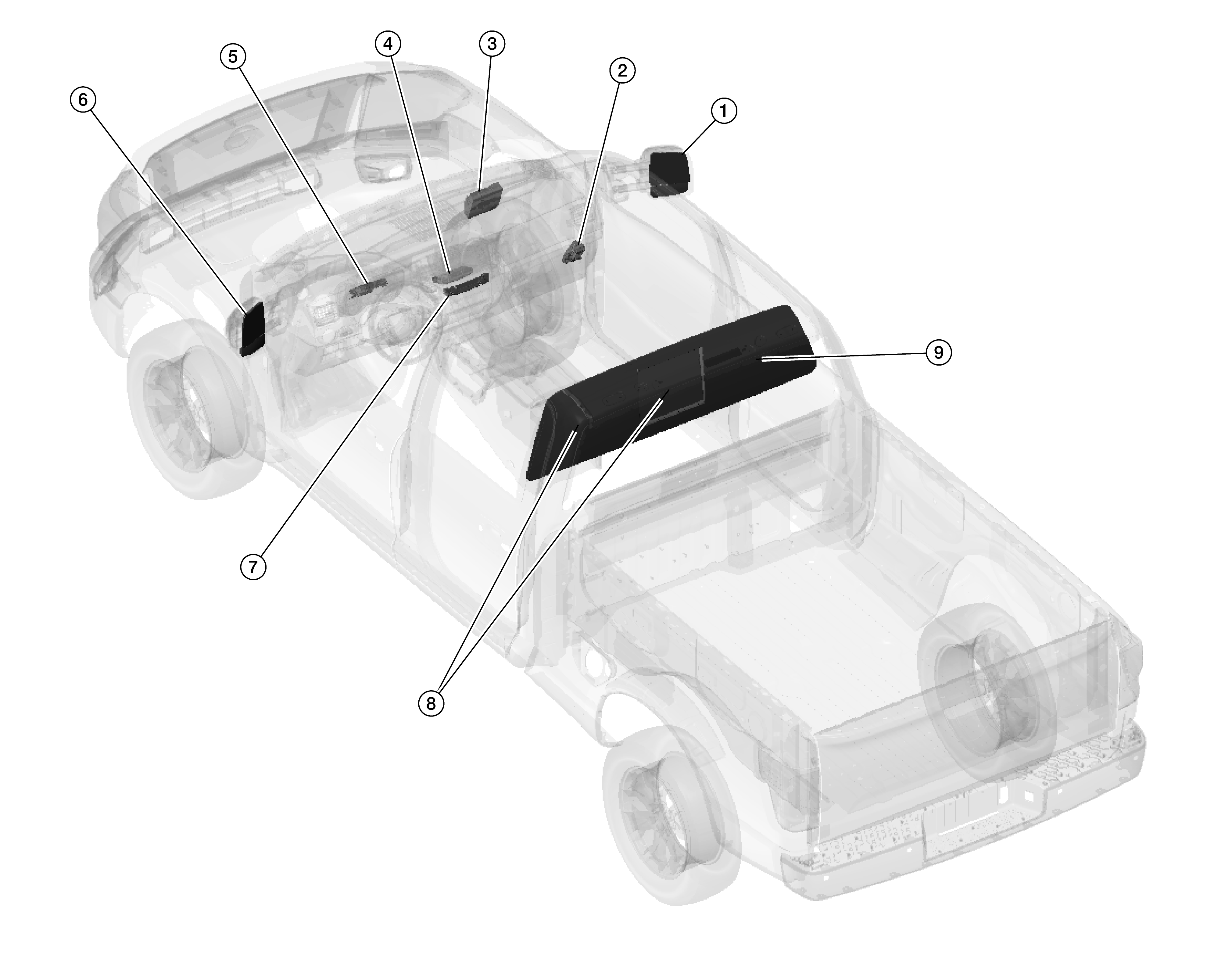

No.	Component	Function
1.	Door mirror RH	Refer to Door Mirror Defogger .
2.	Fuse block (J/B) (Rear window defogger relay-2)	Operates the rear window defogger RH and the door mirror defoggers with the control signal from BCM.
3.	IPDM E/R (Rear window defogger relay-1)	Operates the rear window defogger LH with the control signal from BCM. Refer to Component Location for detailed installation location.
4.	A/C auto amp. (with auto A/C)	Transmits rear window defogger switch ON signal to the BCM. Transmits the indicator lamp ON signal when detecting the operation of rear window defogger. Refer to Component Location for detailed installation location.
5.	BCM	Operates the rear window defogger with the operation of rear window defogger switch. Performs the timer control for rear window defogger. Refer to Component Location for detailed installation location.
6.	Door mirror LH	Refer to Door Mirror Defogger .
7.	A/C switch assembly (rear window defogger switch) (with auto A/C)	Transmits rear window defogger switch ON signal. Turns the indicator lamp ON when detecting the operation of rear window defogger. Refer to Component Location for detailed installation location.
7.	Front air control (rear window defogger switch) (with manual A/C)	Transmits rear window defogger switch ON signal. Turns the indicator lamp ON when detecting the operation of rear window defogger. Refer to Component Location for detailed installation location.
8.	Rear window defogger LH	Refer to Rear Window Defogger .
9.	Rear window defogger RH	Refer to Rear Window Defogger .
