Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove parking brake control. Refer to Removal and Installation .
    NOTE: It is not necessary to remove parking brake switch.
  2. Remove front seat RH. Refer to Removal and Installation - Captain Seats .
  3. Remove center console (if equipped). Refer to Removal and Installation .
  4. Remove center seat (if equipped). Refer to Removal and Installation - Center Seat .
  5. Place front floor trim (RH) aside. Refer to Removal and Installation .
  6. Remove bolts from parking brake front cable. Refer to Exploded View .
  7. Remove Around View Monitor control unit (if equipped). Refer to Removal and Installation .

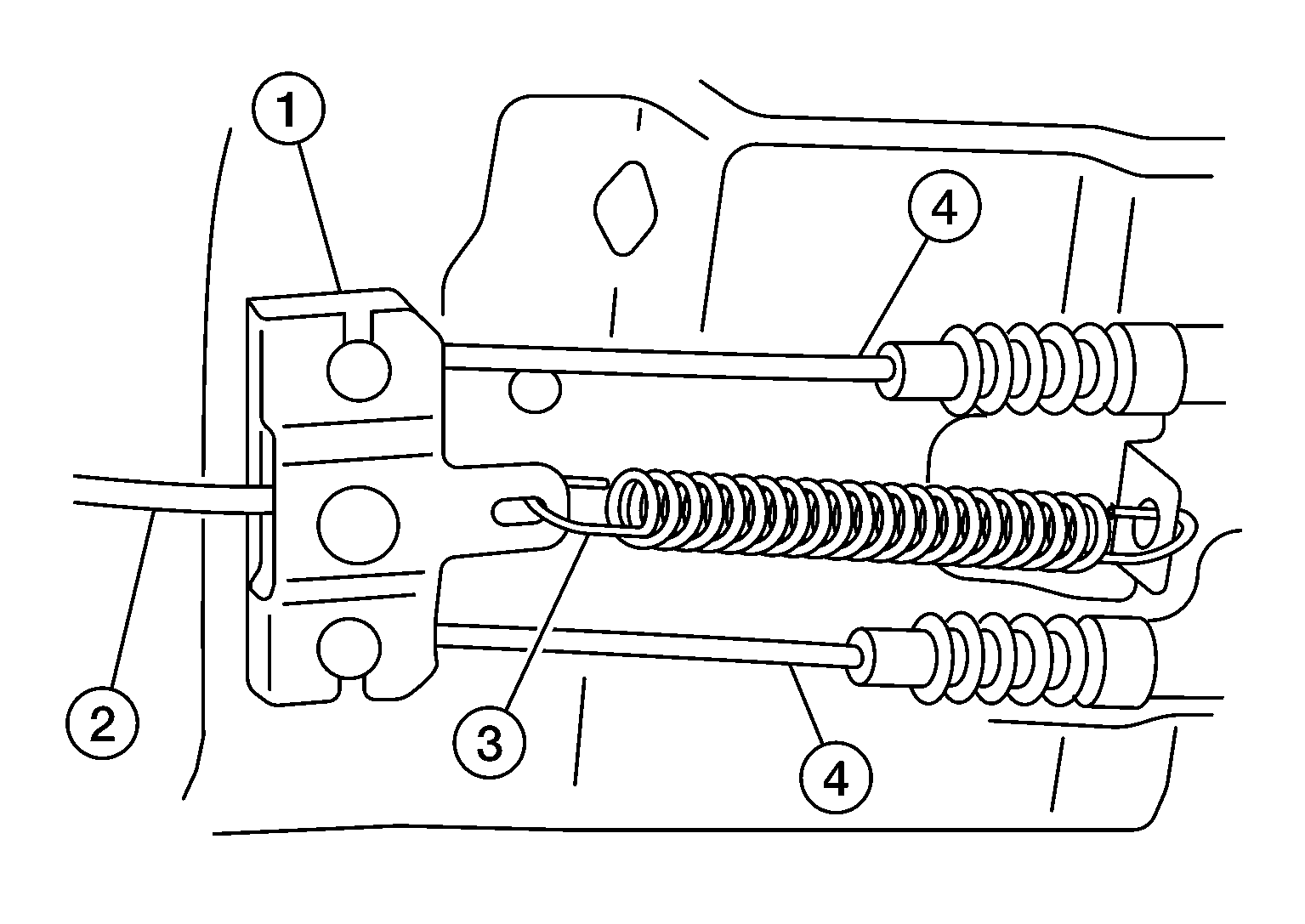

  8. Remove spring (3) from equalizer (1).
    GNSALFIA0613Z-613Courtesy of NISSAN NORTH AMERICA, INC.
  9. Pull equalizer (1) on parking brake front cable (2) and separate parking brake rear cable [LH/RH (4)] from parking brake front cable.
    CAUTION: To prevent damage to parts, do not bend parking brake cables.
  10. Remove parking brake front cable.
