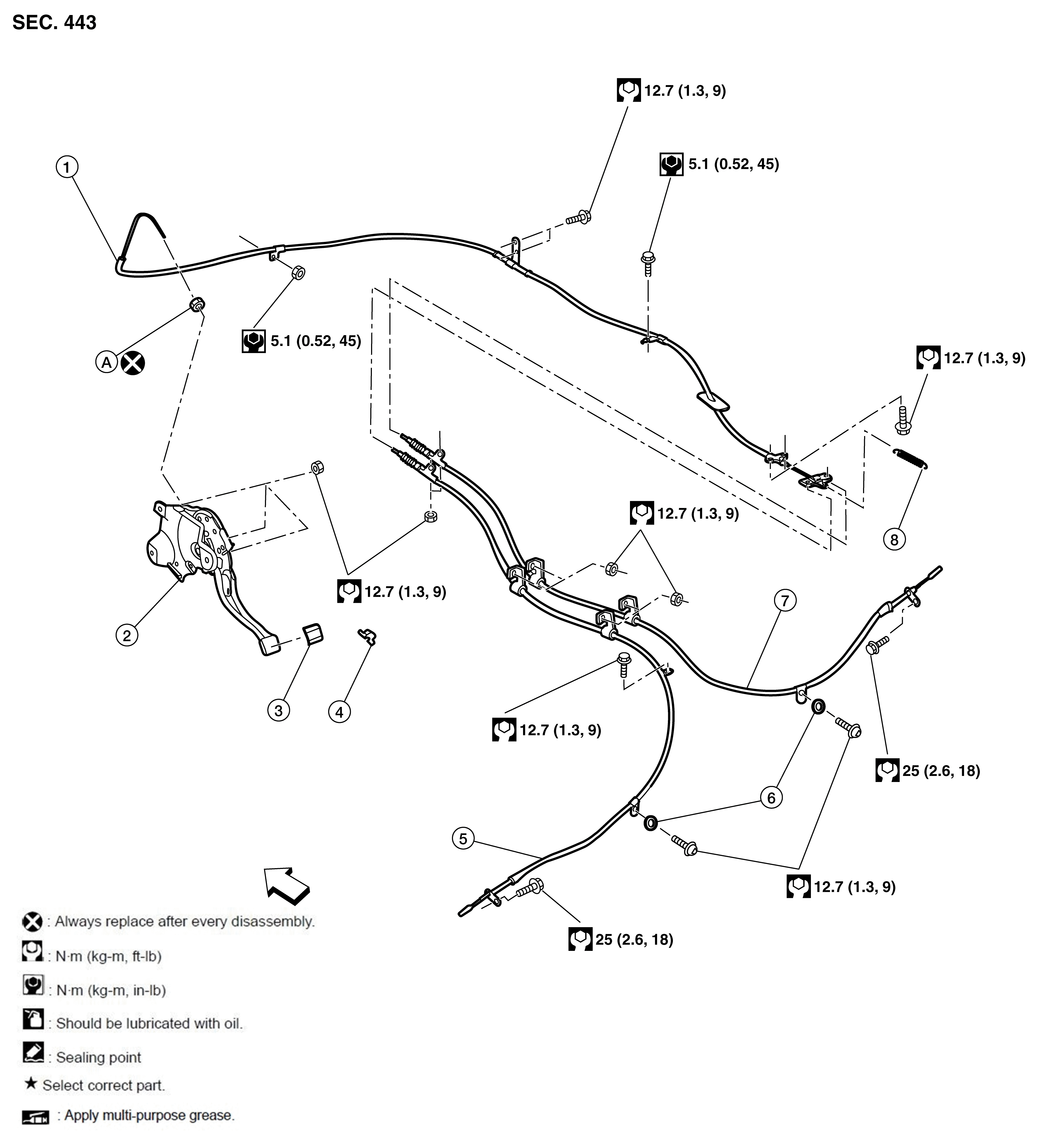

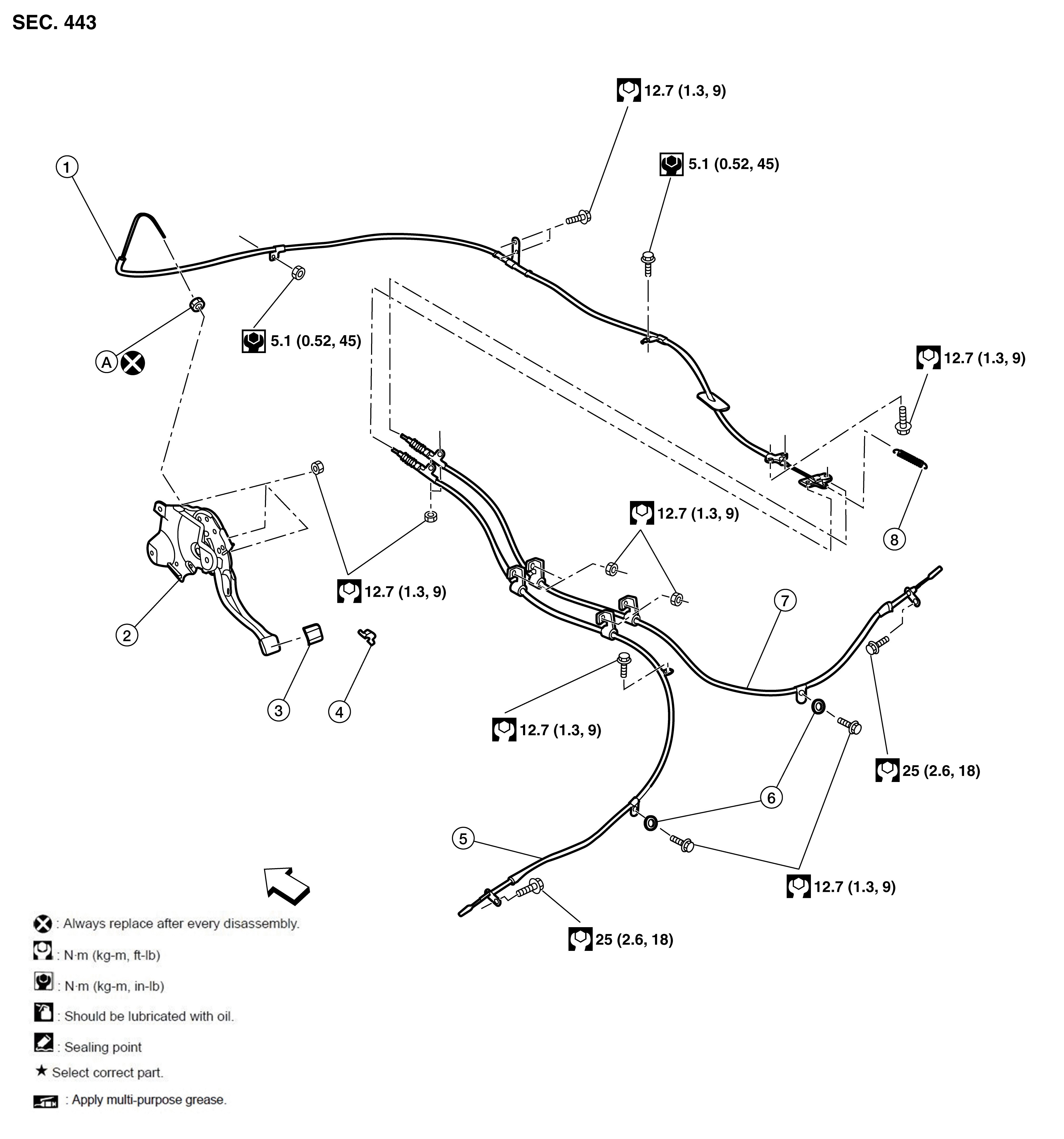

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Parking brake front cable |
2. |
Parking brake control |
3. |
Parking brake pedal pad |
|
4. |
Parking brake switch |
5. |
Rear cable (LH) |
6. |
Washers |
|
7. |
Rear cable (RH) |
8. |
Spring |
A. |
Adjusting nut |
|
|
Front |
|
1. |
Parking brake front cable |
2. |
Parking brake control |
3. |
Parking brake pedal pad |
|
4. |
Parking brake switch |
5. |
Rear cable (LH) |
6. |
Washers |
|
7. |
Rear cable (RH) |
8. |
Spring |
A. |
Adjusting nut |
|
|
Front |
