Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery or batteries. Refer to Battery Disconnect .
- Remove jack and tools.
- Remove upper bracket of center seat belt retractor and belt assembly. Refer to Exploded View .
- Reposition rear panel out of the way. Refer to Removal and Installation .
- Reposition the carpet to access differential lock control unit to disconnect harness connector.

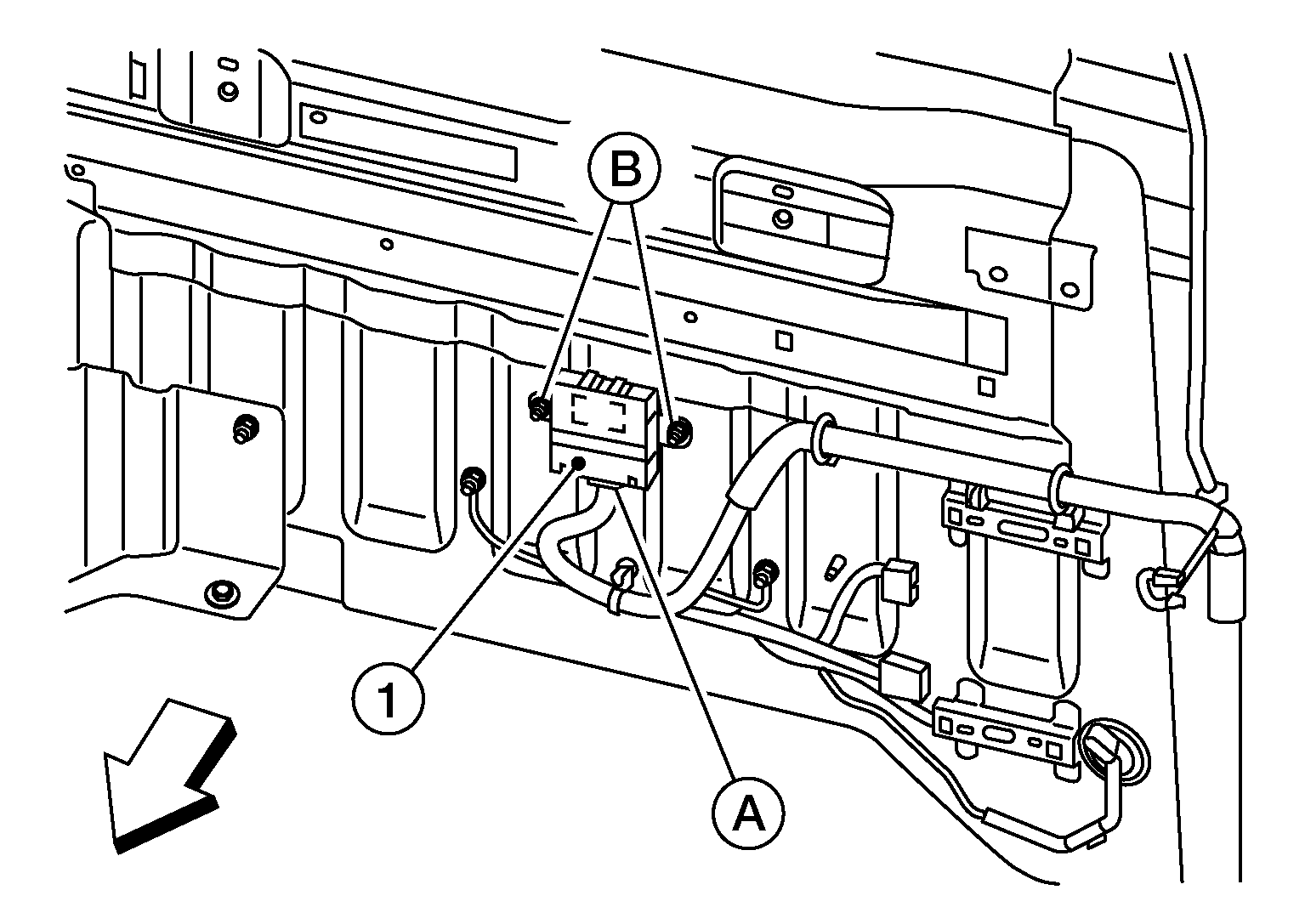

- Remove the nuts (B) disconnect the harness connector (A) from the differential lock control unit (1) and remove differential lock control unit (1).
: Front
